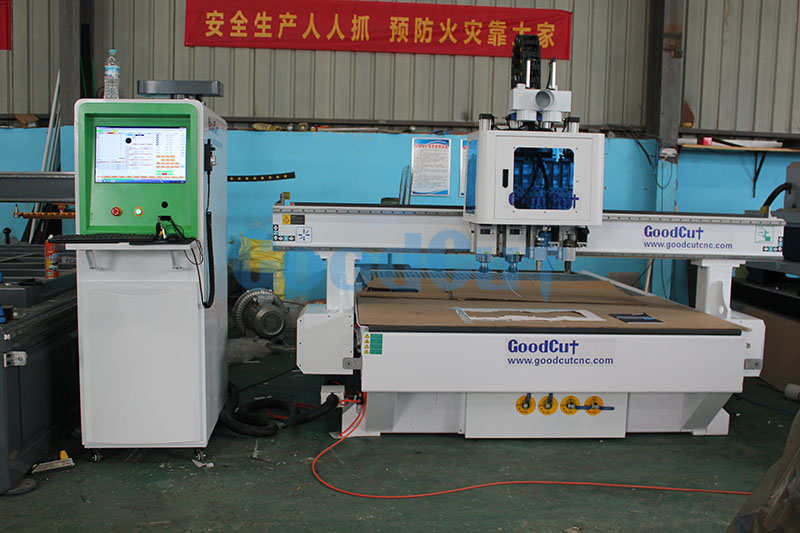

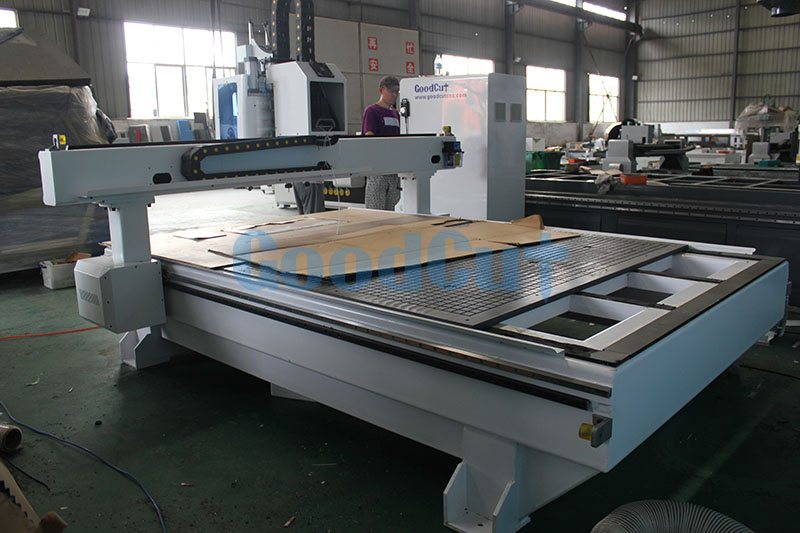

GC1625-O Wood CNC Router with Vibrating Knife Cutting Head for Carton

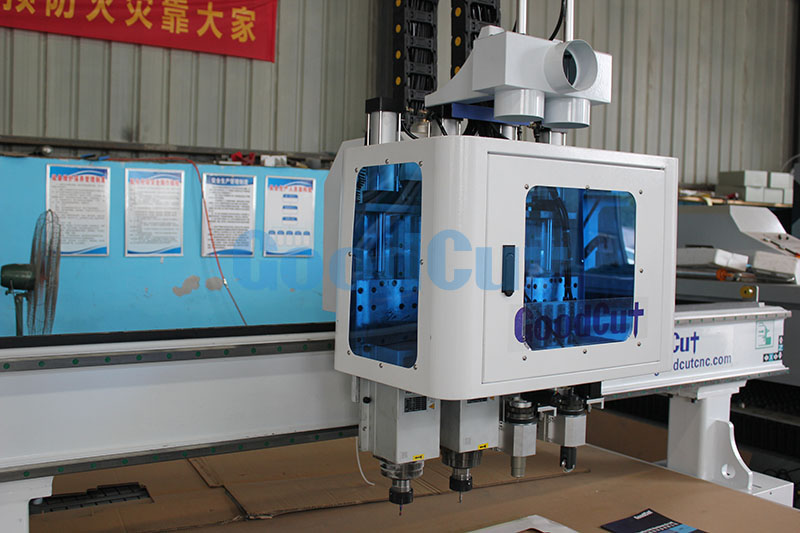

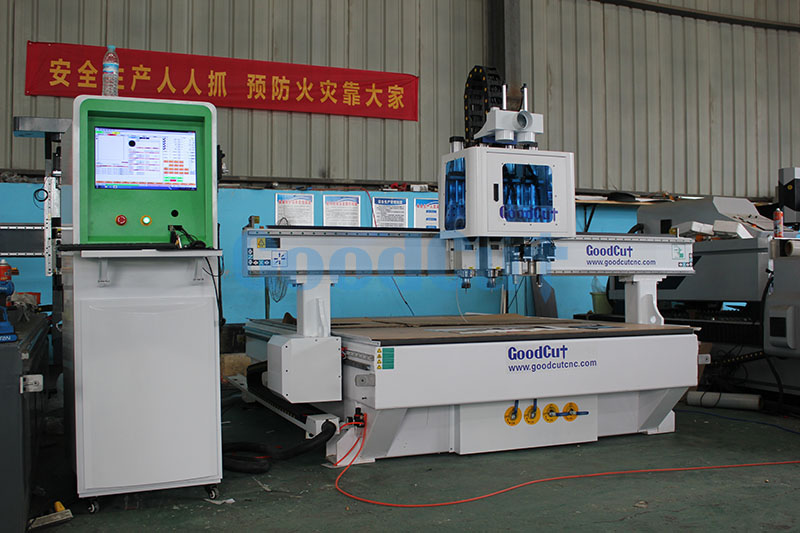

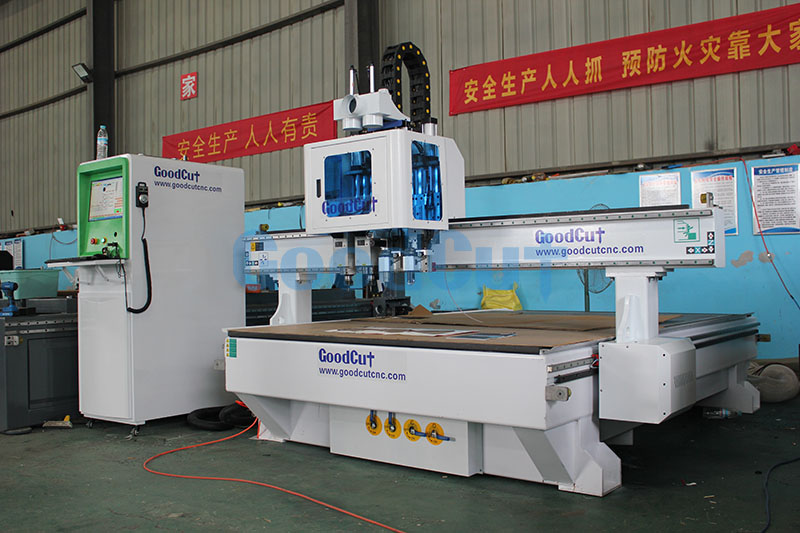

Multi pneumatic spindle

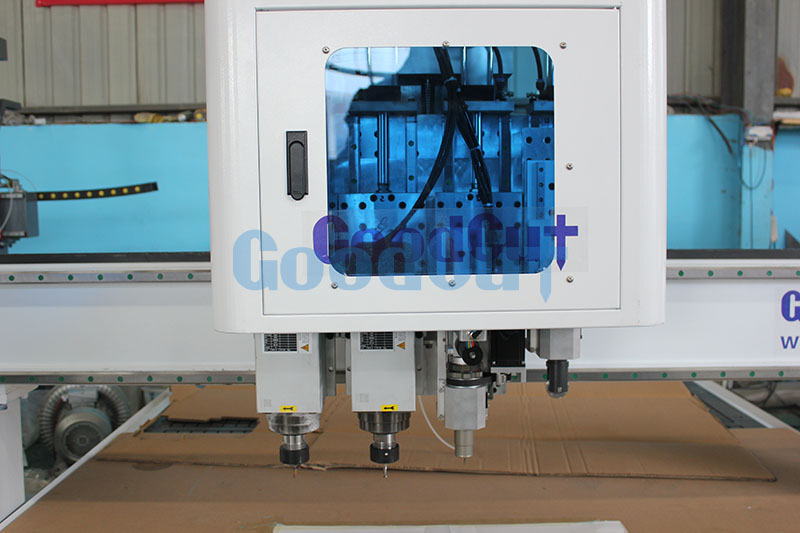

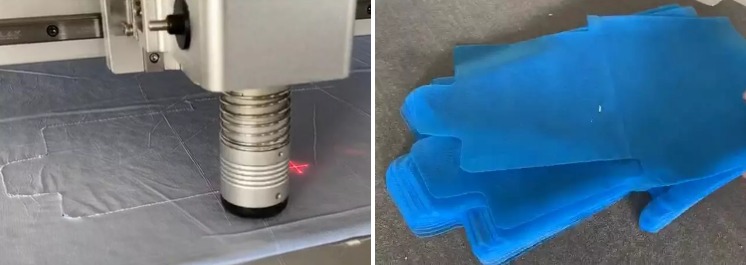

Vibrating Knife Cutting Head
Vacuum aborbed table
HQD 4.5kw/6kw air cooling spindle
Product description: Multi 2/3/4 pneumatic process spindles. Automatic tool change. Multi spindle has different function, can make different job
INQUIRY EMAIL

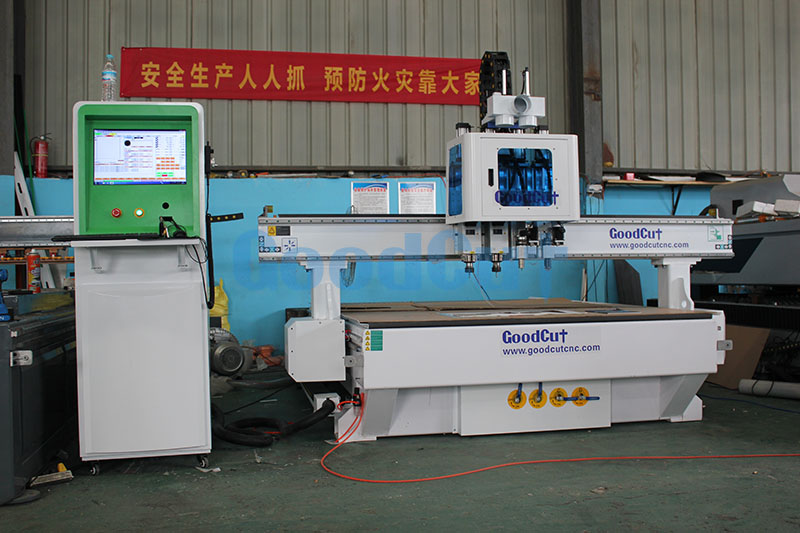

GC1625-O Wood CNC Router with Vibrating Knife Cutting Head for Carton

Parameter:

Description	Parameters
X,Y,Z Working Area	16002500200mm
Table Surface	Vacuum with T-slot Table
Frame	Heavy duty frame, tempering processing
X, Y Structure	Taiwan HIWIN 25mm linear guide, helical rack
Z Structure	Taiwan HIWIN Rail Linear guide and TBI Ball Screw
Max. Power Consumption	(Without Spindle)2.5kw~3kw
Spindle Power	4.5kw air cooling spindles (optiona 6kw ) Vibrating tool head
Spindle Speed	0-18000RPM
Drive Motors	Leadshine hybrid servo motor and driver /Leadshine 750w servo motor and driver
Reducer	Japanese Shimpo reducer
Working Voltage	AC380V/50-60Hz,3PH (Option: 220V/1phase)
Command Language	G Code
Auxiliary parts	Roller system
Operating System	LNC control system Weihong controller/Syntec controller for optional
Vacuum table	7.5kw vacuum table
Inverter	7.5kw Fuling inverter
Computer Interface	USB
X,Y,Z repositioning Accuracy	±0.02mm
X,Y Resolution	±0.01mm
Software Compatibility	Type3/ QingdaoHaiXun, (Option: Artcam Software)
Lubrication system	Auto
Tool sensor	Auto
Dust collector	3kw double packages dust collector
Optional parts	9kw HQD ATC spindle, Boring head with blade

Feature:

1. Function:A multifunctional model CNC machining center, suitable for routing,relief, drilling, cutting, edge chamfering, etc.

2. Construction:Whole machine table adopts high strength thick steel pipe welded. Whole working table cast by resin sand. The annealing and other heat treatment methods ensure that the whole structure is tested to the limit for sturdiness and reliability.

3. Spare parts: Features world top class mechanical and electronic components, e.g. German rack and pinion, Taiwan rail and ball screw, German reducer, French Shneider electrical components, which guarantee stable performance and high quality.

4. Precision: Excellent spare parts, accurate precision detection instrument, which make sure the machine with perfect location and working precision.

5. High-speed: Adopt reducer direct design, high torque, high-energy, two Y axis motors, runs smoothly with high efficiency.

6. Table: Patented Double Layers of Multi-point Vacuum Absorbable Working Table, Large Suction by Multi-slot. Instant Adsorption, Instant Release, Strongly

Detailed Parts:

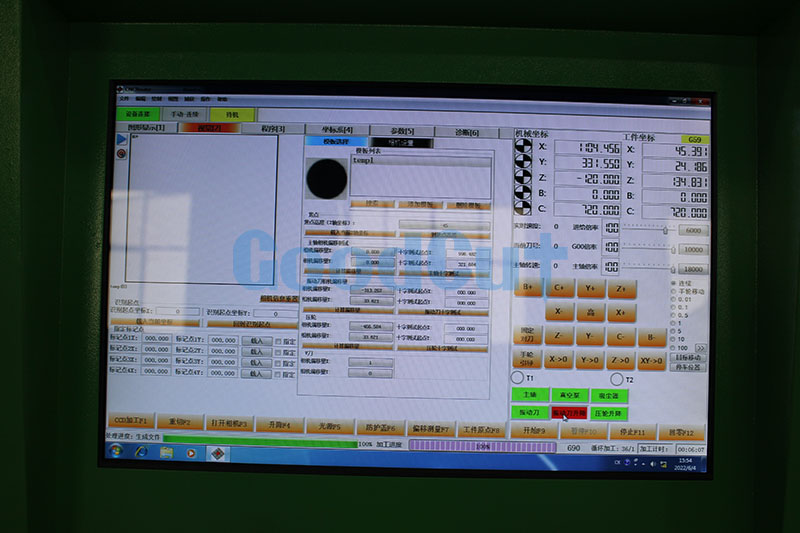

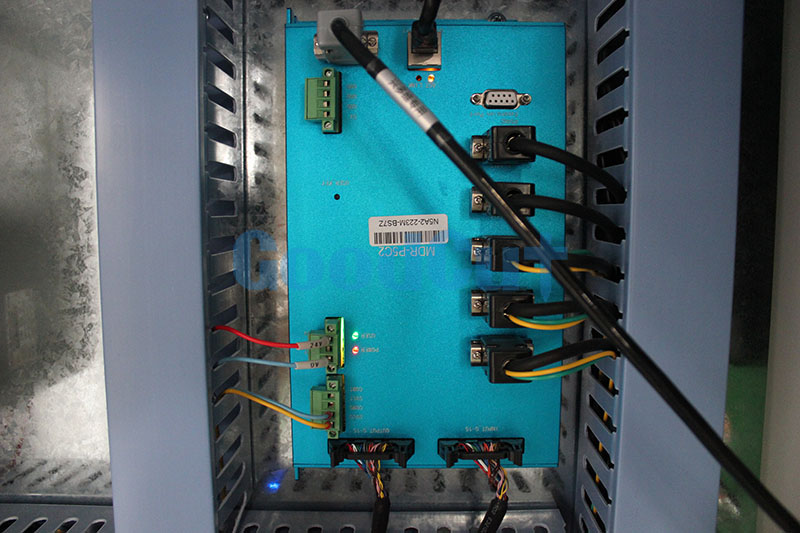

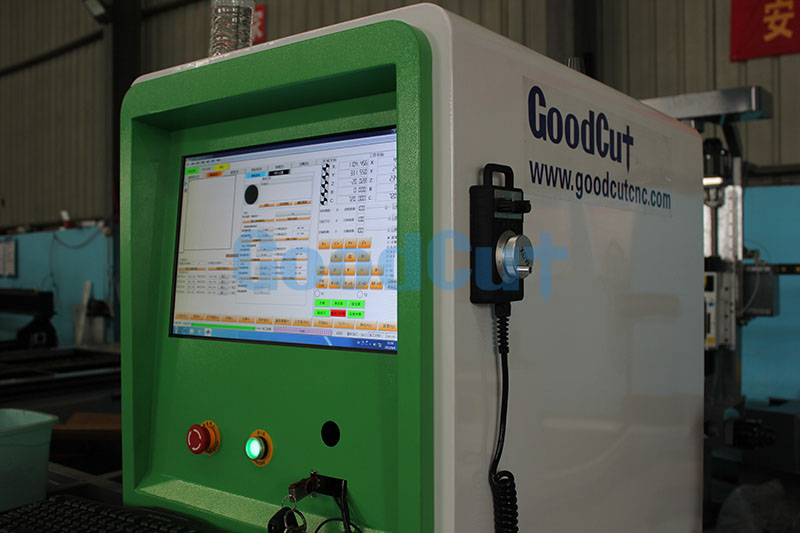

1. LNC controller, with handle, easy to operate.

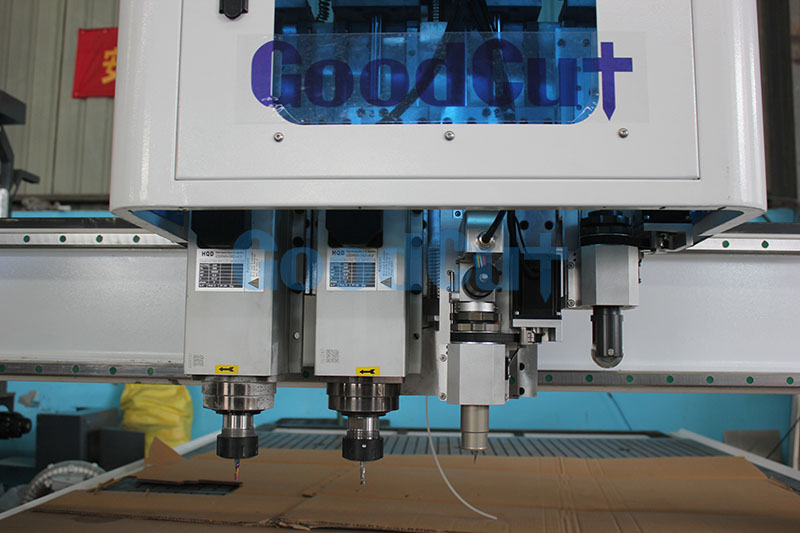

2. differnet spindle, 6kw air cooling spindle, Vibrating tool head

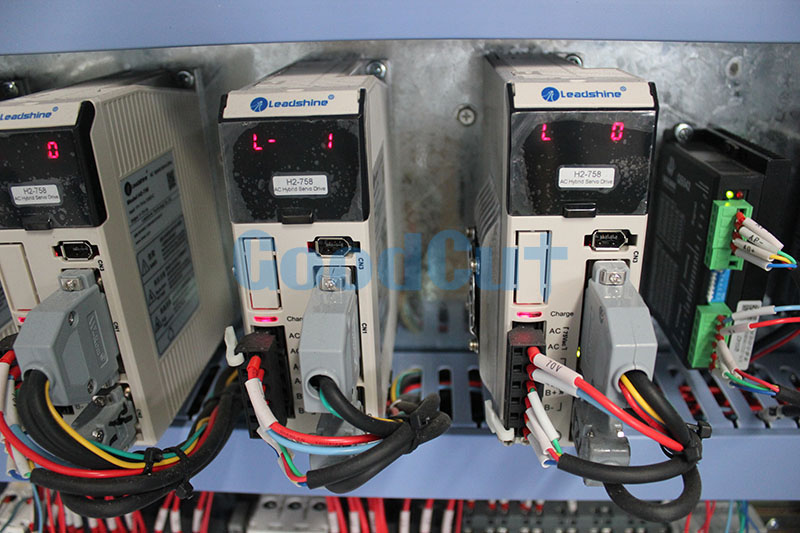

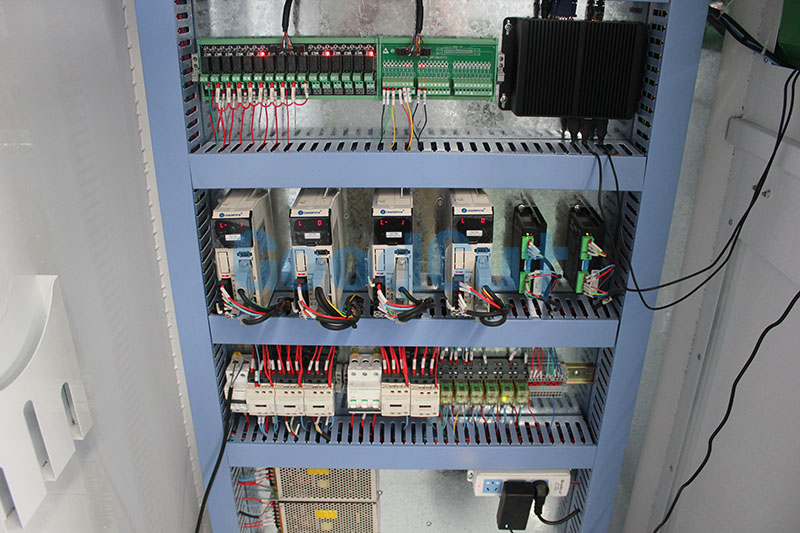

3. Leadshine hybrid servo motor and driver

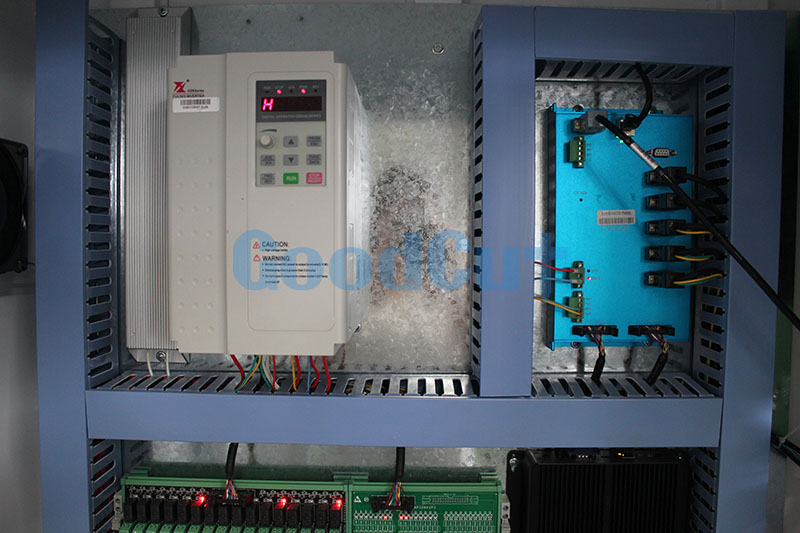

4. Fuling inverter

5. Positioning cylinder

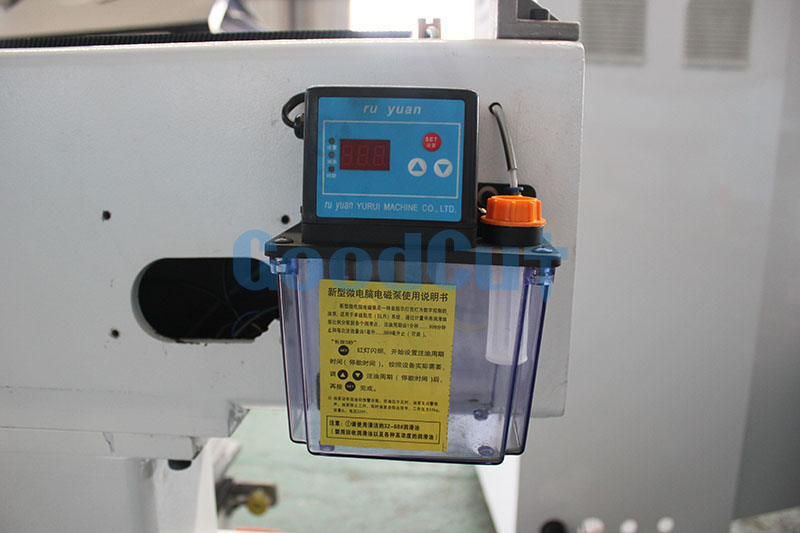

6. Automatic oli lubrication

7. Wheels to auxiliary loading and unloading

Applictions:

1. WoodFurniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.

2. Advertising industry: advertising identification, sigh making, Acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.

3. Die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble,plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.

4. relief sculpture, 3D engraving & Cylinder object engraving.

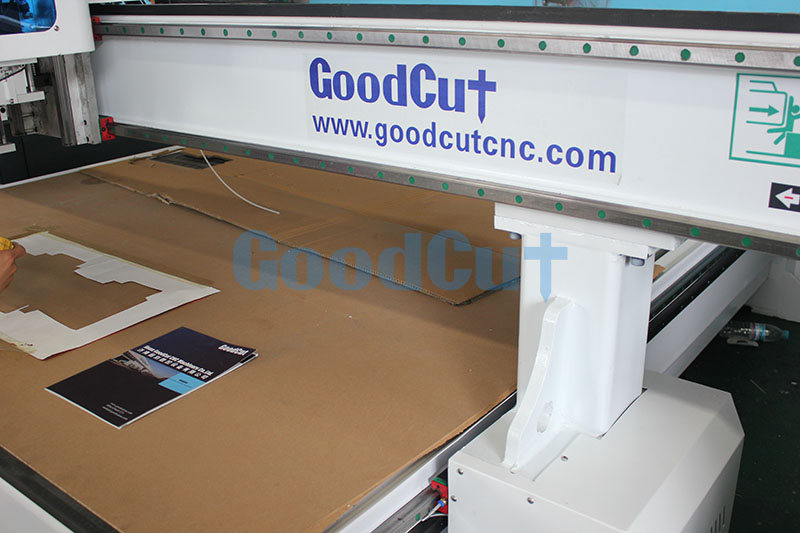

5. Carton, Leather, fabric cutting.
