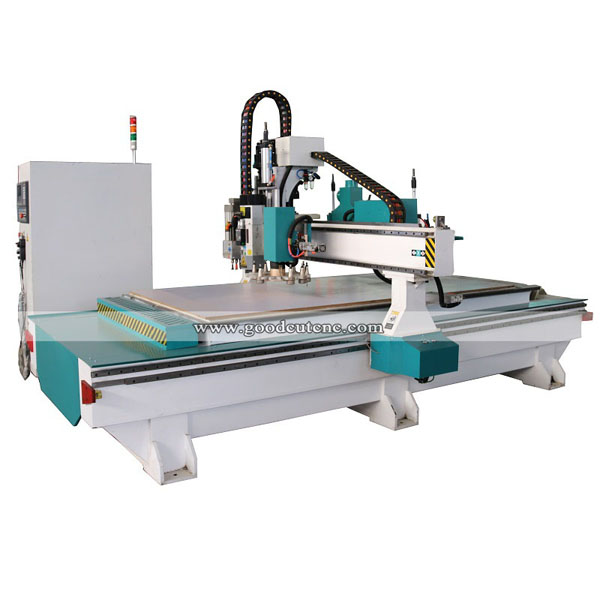

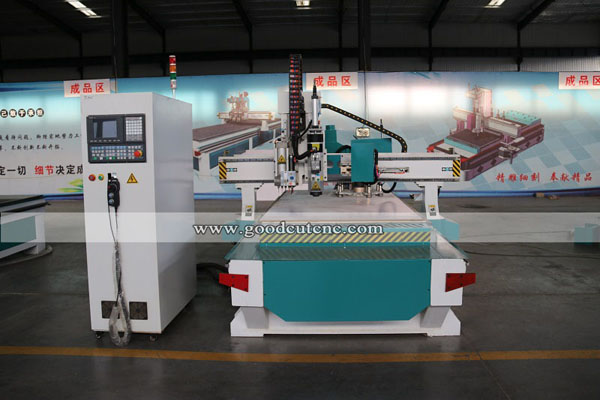

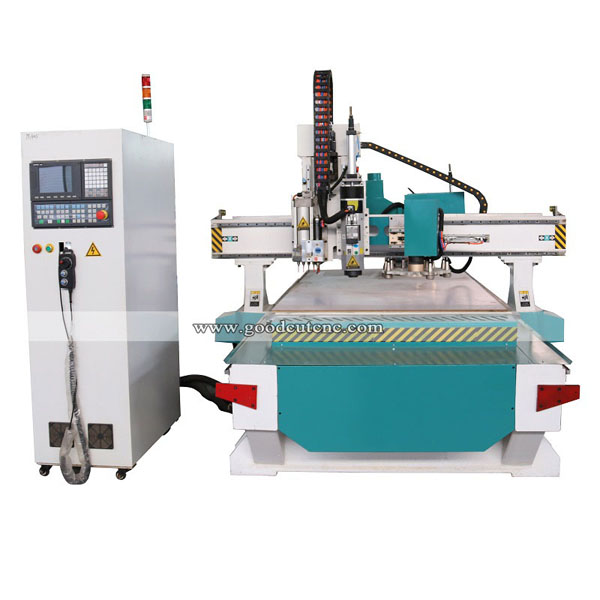

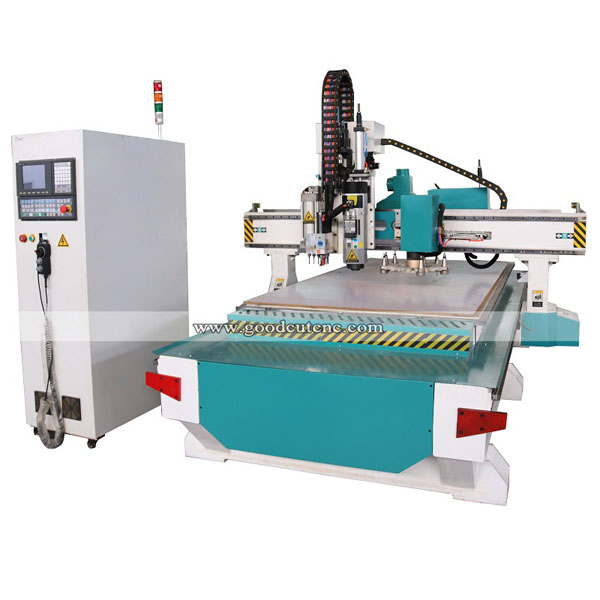

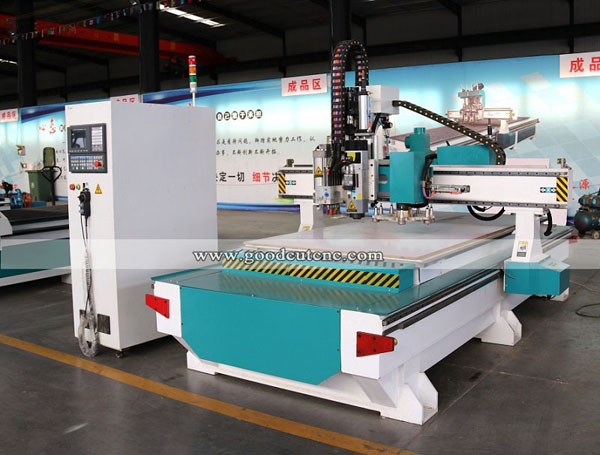

GC1325ATC-D 1325 ATC CNC Woodworking Router Machine with Drilling Package for Carving Wood

GC1325ATC-D 1325 ATC CNC Woodworking Router Machine with Drilling Package for Carving Wood

8pcs 12pcs disk tool magazine
Drilling package
9kw cooling atc spindle
Automatic tool changer
Product description: Vacuum adsorption + T-slot working table Japan Yaskawa servo motor and driver HSD/HQD 9kw air cooled ATC spindle 8pcs 12pcs disk tool magazine Taiwan Syntec 6MA 6MB controller
INQUIRY EMAIL

GC1325ATC-D 1325 ATC CNC Woodworking Router Machine with Drilling Package for Carving Wood

Main Feature:

1. Spindle Power: HSD 9KW air-cooling spindle, with 8pcs disc type tools magazine.
2. Drilling Head: Italy HSD 5+4 gang drill.

3. Driving System: X Y Z axis Japan Yaskawa servo motor drive, Z-axis with brake.

4. Control System: Taiwan Syntec controller, high precision and best stability.

5. Converter: Zoncn/ Fuling brand.
6. Cylinder: 10pcs Positioning Cylinders, pneumatic device for loading and unloading platform.

7. Transmission: Taiwan Hiwin square guide rails (Y 30mm, X/Z 25mm), Lifetime free-lubrication, high precision helical rack gear.
8. Beam: Reinforcing steel structure.

9. Cable: YANGLI special shielded cables for drag chain, anti-static, anti-interference, with good bending resistance.

10. Limit Switch: Japan Omron.

11. Electrical Components: French Schneider Brand.

12. Body Structure: Heavy-duty integral welding steel structure, with tempering aging treatment, which ensure the body durable and never deformation. With big cover outside.
13. Table: Overall steel truss structure, good stability, with no distortion; Vacuum table.
14. Vacuum Pump: 5.5KW.

15. Software: Be compatible with G-code NC file.
16. Optional: Loading and unloading platform, Scanning gun, Automatic coding machine, Dust collector.

Model	GC1325ATC-D
X-Y-Z axis working area	1300x2550x300mm
Machine size	3350x2270x2320mm
Repositioning resolution	0.02mm
System resolution	0.0025mm
X-Y movement	rack and pinion,gear drive/Taiwan
Z movement	ball screw drive/Germany
Guide	linear 25 square/Taiwan
Max.speed	60,000mm/min
Max.cutting speed	30,000mm/min
Spindle power	9kw Italy HSD air cooling spindle
Spindle speed	18,000rpm
Inventer power	11kw Delta
Tool magazine	8 pcs/ 12pcs tools,carousel type
Drive motor	servo/Japan
Working voltage	AC380V/50-60HZ,3-phase
Command code	G code
Computer interface	USB 2.0
Collet	ER32-3.175mm,6mm,12.7mm
Software	Artcam&Alphacam software/UK
Controls	SYNTEC system/Taiwan
Packing dimensions	3420x2280x2256mm,2500kgs
Standard enquipment included	1.Auto oil lubrication system 2.Dust hood 3.T-slot vacuum table 4.Tool shanks 5.Vacuum pump

Advantage:

1. High accuracy, long service time, steady movement
2. Adopt Taiwan intime imported linear guide rail, make sure the machine square the accuracy and can withstand large load
3. Mechanical and electrical design, selection of straight-a excellent brand electrical accessories,will failure rate to a minimum.
4. 9KW air cooling power change knife spindle to ensure the machine can be vigorous cutting
5. Breakpoint power function for carving
6. Auto lubricating system, one touch can finish periodic maintenance easily.
7. Intelligent protection work to prevent incorrect operation etc mesa, may cause the damage of mesa. Intelligent processing
8. Cross-border protection, prevent to design board face more than processing wide of the mechanical collision caused phenomenon
9. Auto-tool Changer system, Tool magazine capacity of 8 tools

Application:

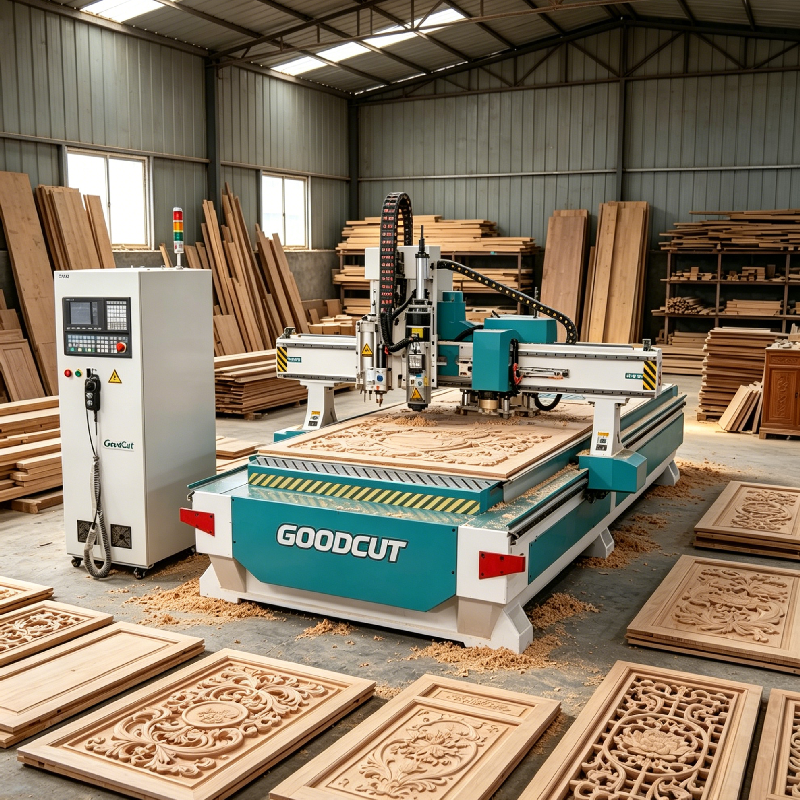

1. Furniture industry: panel furniture, cabinet wardrobe, office furniture, custom furniture. Wood doors, cabinets, solid wood furniture cutting and carving; Wood products: speakers, game cabinets, computer tables, sewing machine, musical instruments.

2. Plate processing: particleboard, ecological board, carpenter board, medium board, insulation, plastic chemical parts; PCB; motor car body, bowling ball; anti double board, epoxy resin, ABS, PP, PE and other carbonized mixtures.
