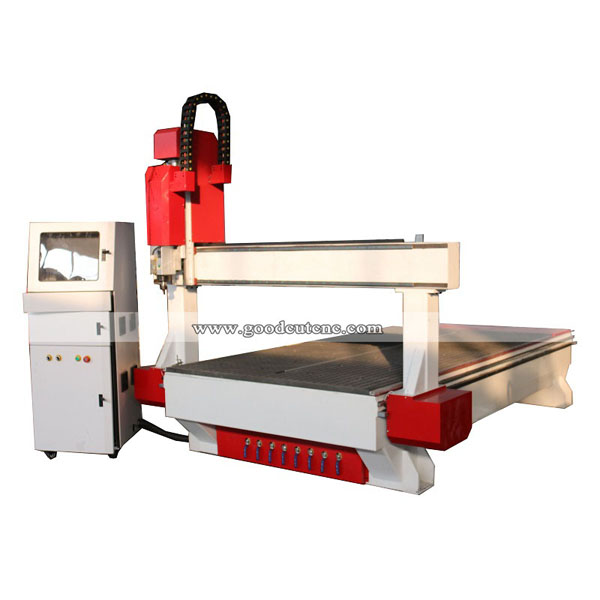

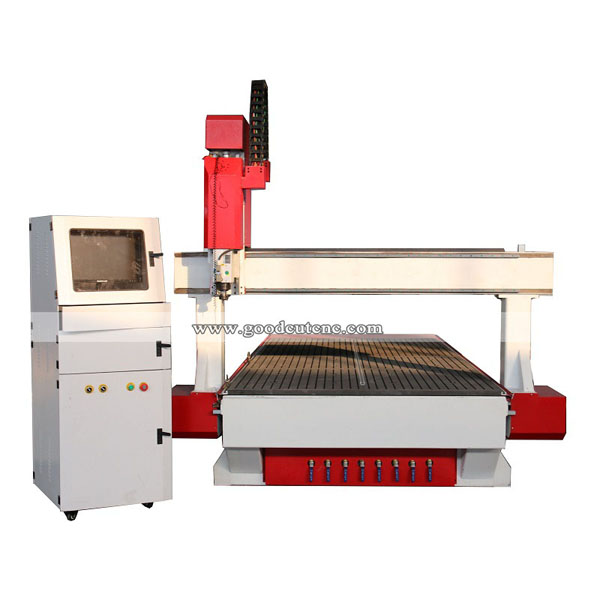

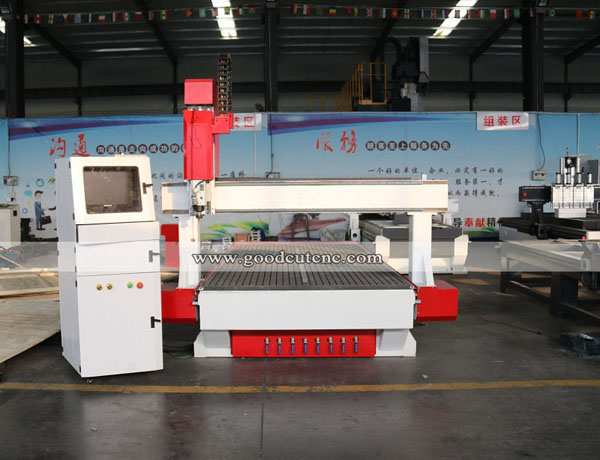

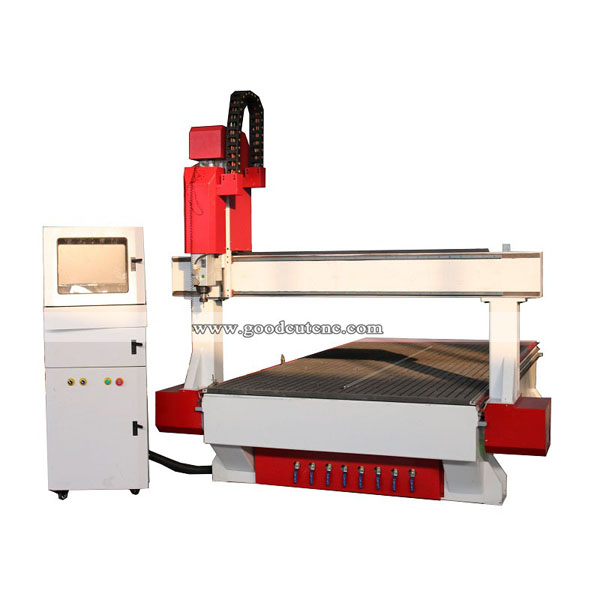

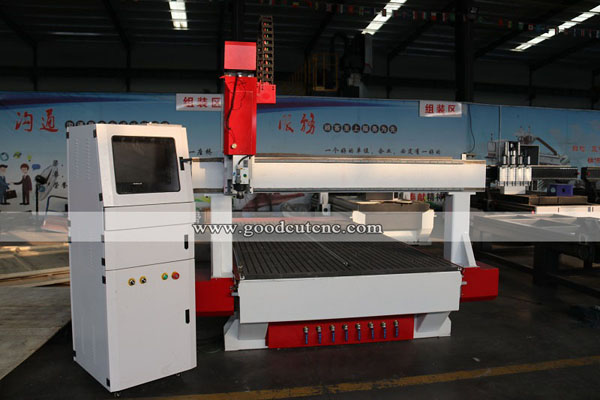

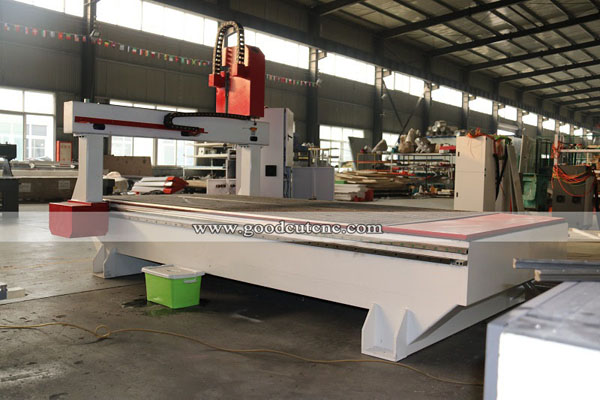

GC2030VH 21003000300mm Wood CNC Router Machine With Italy HSD Spindle

large working size
Spindle: Italy HSD air cooling spindle
controller: mach3, NC studio
Heavy duty frame
Product description: Best configurations cnc router with Italy HSD spindle, vacuum table
INQUIRY EMAIL

big size 2100*3000mm(4*8 feet 5x10 feet are optional) Fully Assembled and Tested in China GoodCut Company

4-Axis Smooth Step Ethernet Control Box - Built in Spindle Relay for On/Off Control

Make your own table top for holding down your part for cutting

3.5kw 4.5kw Italian HSD Spindle

Mach 3 Control Software - Installed, Configured and Tested on PC

Home Switches on All Axis - Home Zeroed Saves all Part(Fixture) Zeros

Japan Yaskawa Servo Motors on X, and Dual Drive Y, Z Aix

Cable Management on All Axis

2 Year Limited Warranty on Defective Parts and Craftsmanship.

* Shipping and Crate charges not Included - These Prices Vary

Descriptions	Parameters
Model	GC1325VH	GC1525 1530VH	GC2030VH	GC2040VH	Custom made
Working area	1300*2500mm	15002500mm 15003000mm	2000*3000mm	2000*4000mm	Custom made
Accuracy	±0.03mm
Table Surface	Vacuum & T-slot Combined (or T-slot Table, or vacuum table )
Frame	Thicken steel Square Tube Heavy structure , 8mm thicken steel
X, Y Structure	Gear and rack transmission, Taiwan PMI/HIWIN Linear Rail 20mm
Z Structure	Taiwan TBI Ball Screw, Taiwan PMI Linear Rail
Max. Rapid Travel Rate	60000mm/min
Max. Working Speed	25000mm/min
Spindle Power	3.2kw, 4.5kw, 6kw HQD or CC Spindle (Italy HSD for Optional) water cooled spindle or air cooled spindle
Spindle Speed	0-24000RPM, 0-18000RPM
Drive Motors	Siemens 808D 808AD Leadshine 450B motor, MA860H driver, Delta, Japan Yaskawa servo motor and driver , Panasonic
Working Voltage	220v/380v Custom made
Command Language	G Code
Operating System	DSP, Nc-studio, Weihong, Taiwan SYNTEC control system, German Siemens
Computer Interface	USB interface
Collet	ER25
Inverter	Fuling or Taiwan Delta
Software	Vectric Aspire/Type 3 /Artcam /Ucancam

Advantages:

1. Original Italy HSD spindle 4.5Kw, very powerful and top quality

2. Japan YASKAWA servo system, powerful, precision and durable

3. Heavy duty frame and gantry, 8-12 mm

4. Rapid running speed: two axes are rack gear, fast speed and high efficience, The highest speed is 45mpm.

5. Intelligent control: adopting DSP control system. It is very easy to master.

Heavy duty bed body, the bed is treated by the furnace, not easy to deform.

The base frame is fabricated from heavy-duty tubular steel that is welded, precision machined and stress relieved so that the foundation remains true and steady over the operational life of the machine.
