Co2 Laser Engraver Cutter

GC1390L-2H New Design CO2 Laser Machine With Double Heads

GC1390L-2H New Design CO2 Laser Machine With Double Heads

Model: GC1290L-2H, GC1390L-2H, GC1410L-2H, GC1610L-2H
Laser tube power: 80W/100W/130W/150W
Laser tube brand: Beijing Reci EFR
Control system: DRW/ Ruida controller
Product description: co2 double head laser cutting machine 130w laser cutting and engraving machine co2 laser cutting machine for non-metal
INQUIRY EMAIL

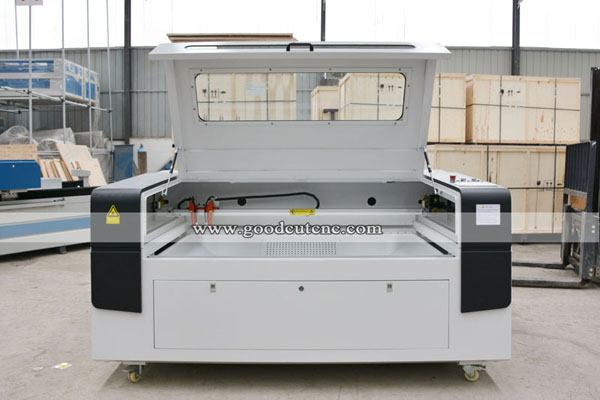

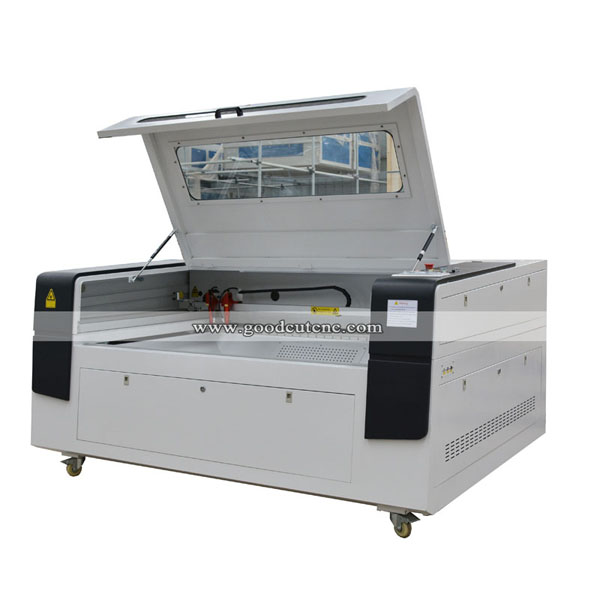

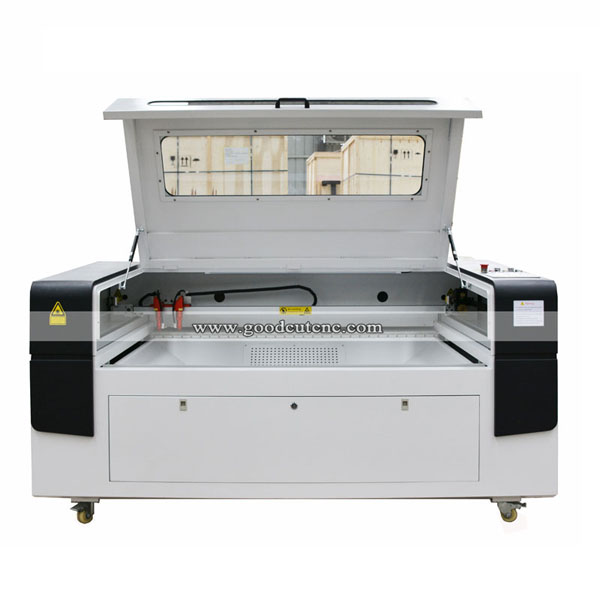

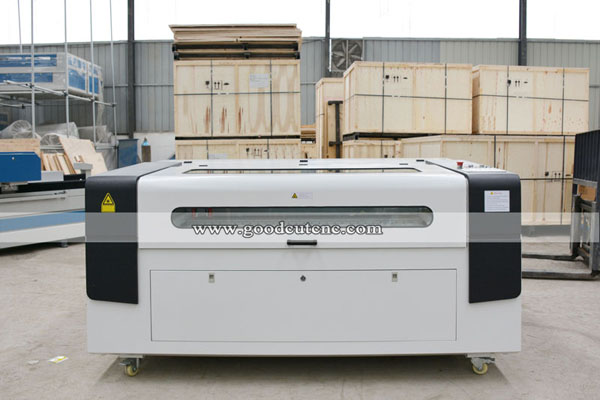

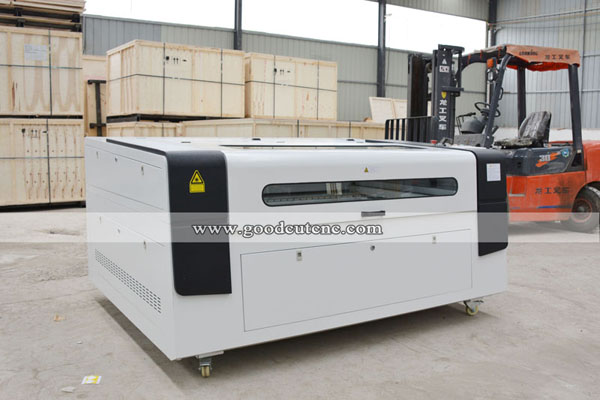

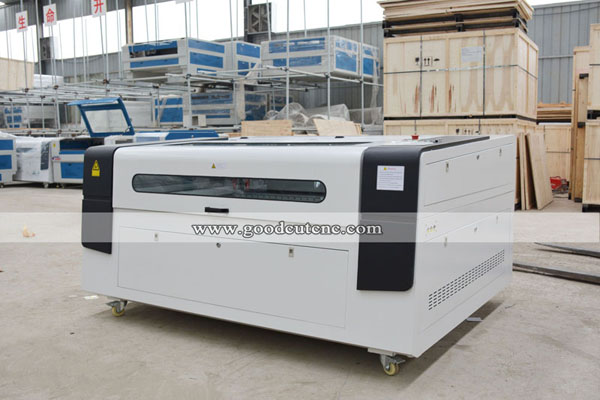

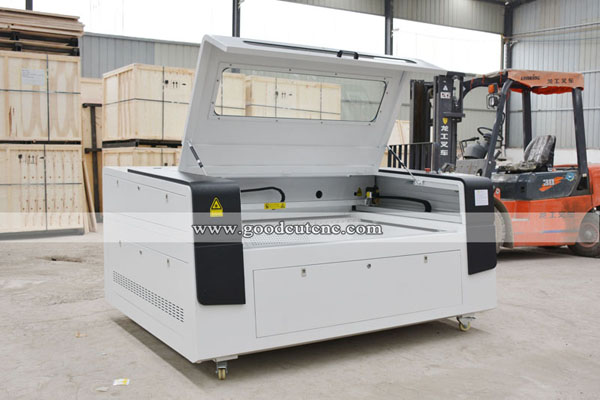

GC1390L-2H New Design CO2 Laser Machine With Double Heads

Double heads co2 80w 100w 130w 150w wood laser cutting and engraving machine

1) Red dot positioning Synchronize with the laser, which make the operation more convenient.
2) Ensure the accuracy higher than similar models on the market.
3) Knives and cellular dual cutting platform can meet the cut requirement of a variety of products.
4) DSP control system and Ruida board can ensure the engraving and cutting task completed quickly at one time.
5) Make the processing of various thickness material more convenient.
6) Wide range of applications: Advertising industry, Office industry, Packing industry, Gift industry, Decoration industry, Printing Industry.

Double heads co2 laser cutting and engraving machine:

1, Double laser heads
High efficient and high quality cutting nonmetal

2, Ruida control system
China top quality control system, and easy to learn and operation.

3, Lasar tube
Laser tube with international warranty. Recommend suitable laser power based on application materials and thickness.

4, High quality guide rail
Adopted square guide rail, with high positioning accuracy for a longer time.

5, High quality ball screw transmission
Best quality ball screw, with high positioning accuracy.

6, Control box
Reasonable layout, clean and efficient design, it convenient for machine repair and maintenance.

Laser model	GC1309L-2H
Cutting area	1300*900mm
Machine dimension	190011301140mm
Packing dimension	190012001200mm
Laser tube brand	Beijing Reci EFR
Laser type	CO2 glass laser tube
Laser power	60W,80W,100W,120W,130W,150W
Cooling way	Water cooling
Laser energy control	0.1~100% set by sofyware and HMI
Speed control	0.1~100% set by sofyware and HMI
Location accuracy	±0.01mm
Engraving speed	0~60000mm/min
Cutting speed	0~40000mm/min
Control system	Ruida controller/
Operating enviroment	Windows98/2000/XP/WIN7/8,vista
Standerds parts	Knife blade working table,water pump,air pump,air exhusted fan etc.
Optional parts	Honeycomb working table,red dot pointer,CW 3000/CW 5000 water chiller
Spare parts	Laser tube,mirror and lens

Double heads co2 80w 100w wood laser cutting and engraving machine:

1. Model : GC1290, GC1390, GC1410, GC1610
2. Working size: 1200x900mm, 1300*900, 1400*1000, 1600*1000mm
3. Laser tube power: 80w /100w /130w/150w option
4. working table : blade table/honeycomb table
5. leadshine motor and driver
7. Ruida control systems
8. Industry chiller cw3000/cw5000/cw5200 option
9. One head or two head option
