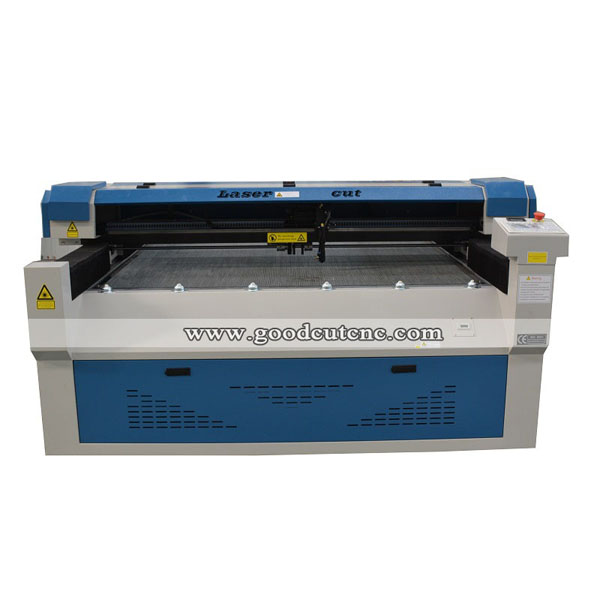

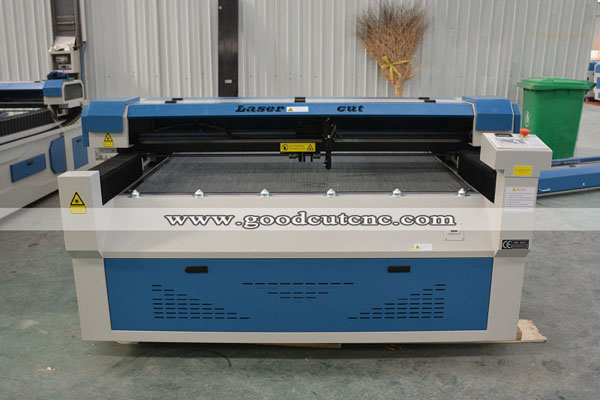

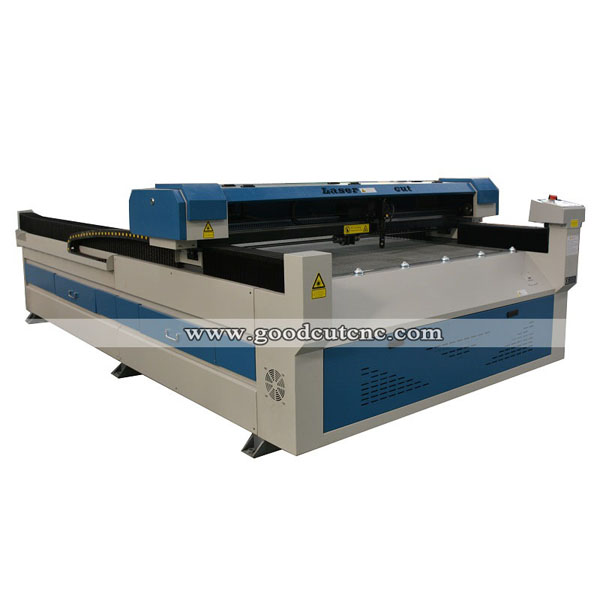

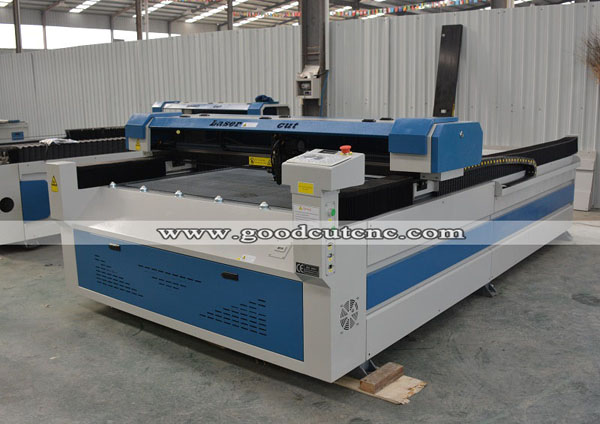

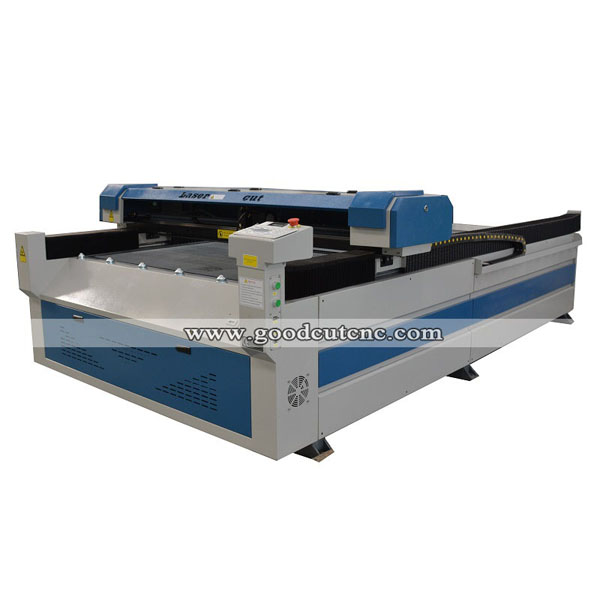

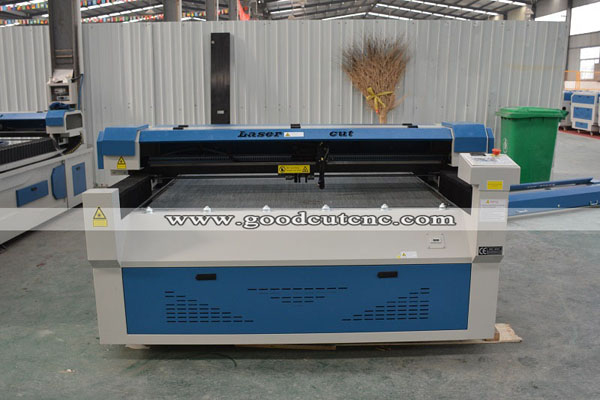

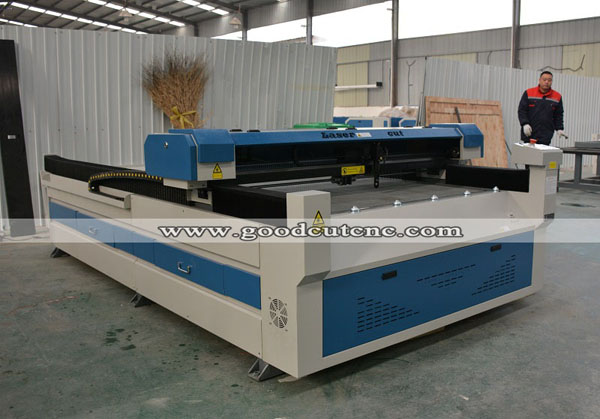

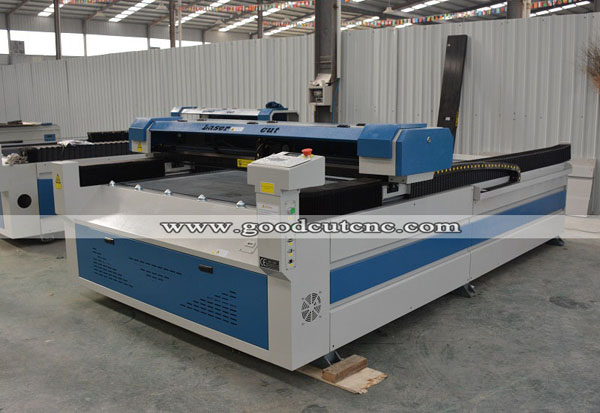

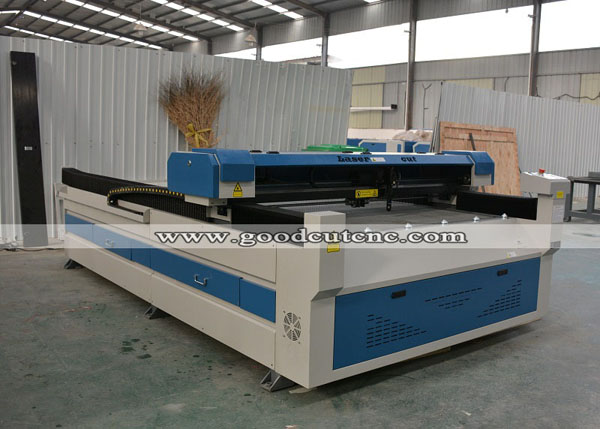

GC1325L CO2 Laser Nonmetal Cutting Engraving Machine

GC1325L CO2 Laser Nonmetal Cutting Engraving Machine

Model: GC1325L
Laser tube power: 100W 130W 150W
Laser tube brand: Beijing Reci EFR
Control system: Ruida controller
Product description: laser cutting machine, nonmetal laser cutting machine, 100W/130W/150W/ 180W Beijing Reci EFR laser cutting machine
INQUIRY EMAIL

GC1325L CO2 Laser Nonmetal Cutting Engraving Machine

Working Area	1300x2500mm / 1500x3000mm
Transmission	Stepper motor, square guide rails, belt transmission
Laser Power	60w/80w/100w/150w/180w
Laser Type	Sealed Co2 Laser Tube
Cooling Type	Water Cooling
Laser Output Control	0-100% Set by Software
Smallest Character Engraving	Chinese: 2.0mm2.0mm, English 1.0mm1.0mm
Positioning Accuracy	0.05mm / 0.02mm
Max. Cutting Speed	40000mm/min
Max. Engraving Speed	70000mm/min
Controlling Software	Ruida controller
Graphic Format Supported	DST PLT BMP DXF DWG AI LAS, etc
Compatible Software	CORELDRAW, PHOTOSHOP, AUTOCAD, etc
Power Supply	AC110V/220V, 50HZ/60HZ

Parameter of CO2 Laser Nonmetal Cutting Machine GC1325L :

Main configurations:

#Working size 2500*1300mm

#Reci EFR 100W 130W 150W laser tube

#RD control system,USB offline

#Taiwan PMI guide rail

#Blade table

#High quality belt transmission

#USA lens and mirrors

#Heavy duty body

#Water protection switch

#Industrial wather chiller CW3000 CW5000 CW5200

Thicken Machine Bed

Adopt Thicken machine bed, heavy loading,

Not easy to get distort

Adopt Advanced Germany Mix Cutting Technology
It supports can cut acrylic, wood, MDF engraving and cutting.

High precision linear guide rail

Dust-proof and auto lubricate with lower noise volume
High accuracy and long life span

Power Supply

Model: 80W/100W/130W/150W
Original: China
Warranty period: 1 Year
Normal service life: 3 Years

Controller(Mainboard)

Model: AWC708C
Original: China
Cutting speed: 0-36000mm/min
Engraving speed: 0-64000mm/min
Resetting: 0.01mm
Positioning accuracy: 0.025mm
Highest scanning precision: 2500DPI
Graphic format: AI ,CDR BMP,JPG,DST,PLT,DXF,DWG,TIFF,PSD
Supported software: CoreDraw, photoshop, Autocad, etc.
Smallest cutting characters: Chinese 2x2mm . English 1x1mm
Input Power: 220V/ 110V / 60HZ
Whole Power: <1100w
Operating temperature: 0-45°C
Operating humidity: 5-95% Free of condensed water

Water cooled chiller

RECI laser tube W6 model:

Unique Mirrors and Lens Cooling Technology

All mirrors and lens is cooled by water
Takes the mirror heat during working
USA "II-IV" Brand Imported Mirrors & Lens
Equipped with luxury consumables
Imported reflect mirror and focus lens,
Makes high efficiency and steady.

Control Panel

Ruida
Original: China
Input format: AI ,CDR BMP,JPG,DST,PLT,DXF,DWG,TIFF,PSD
Supported software: CoreDraw, photoshop, Autocad, etc.

Standard Parts

Red Light pointer
1× CW-3000/5000/5200 Water Chiller/Water Pump
1× Honeycomb table/Blade Table
1× Air compressor + 1×Exhaust blower + 1×Smoke pipe.
1× USB cable (Connecting pc and machine)
1× CD (Including PHCAD operating software, user-friendly instruction manual, guiding videos.)
1× Power cable
1× Tool box
