Co2 Laser Engraver Cutter

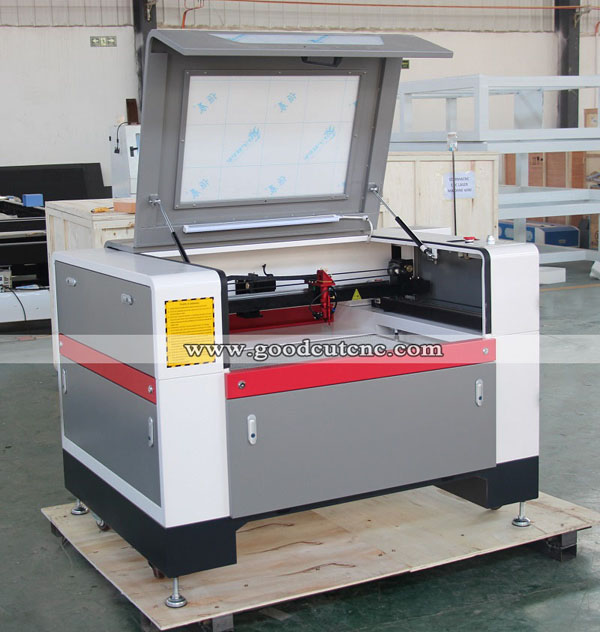

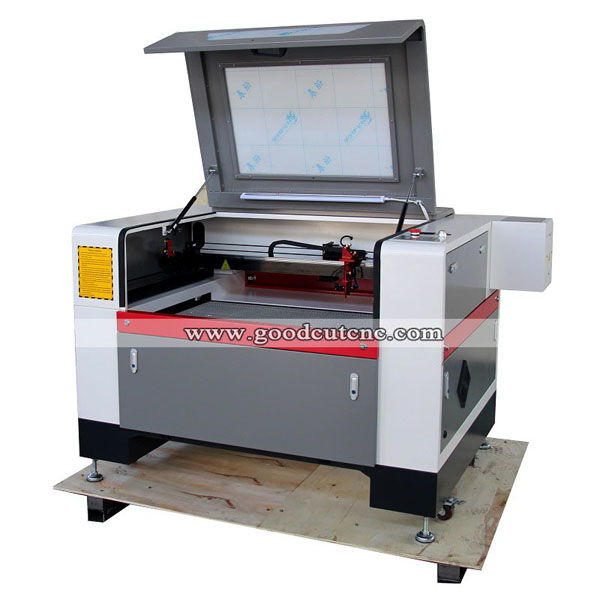

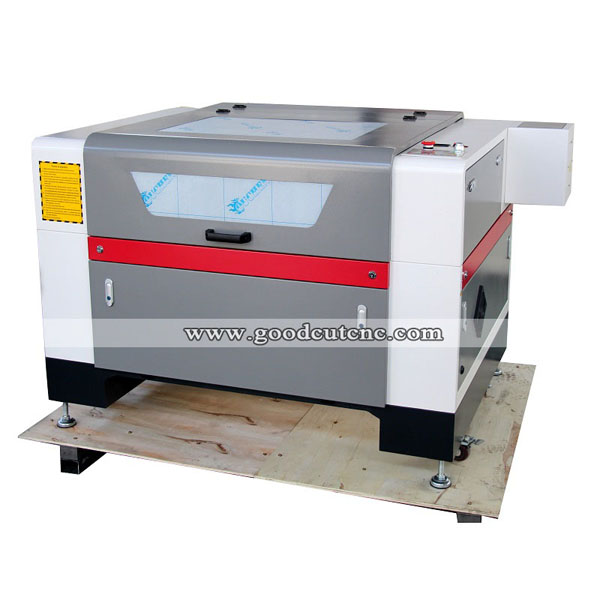

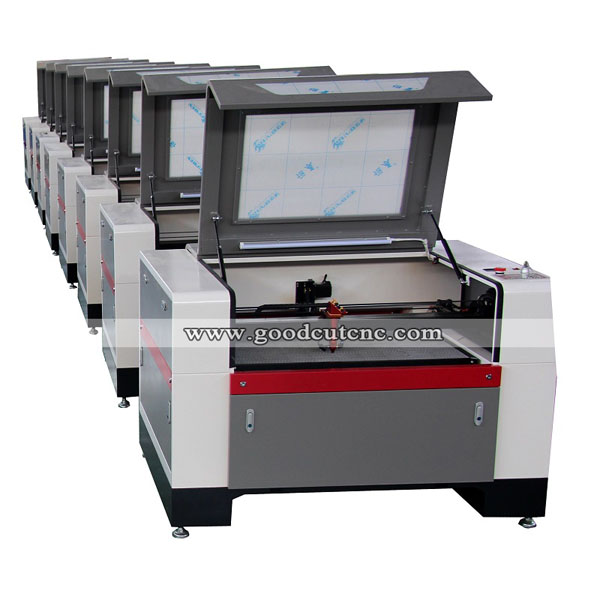

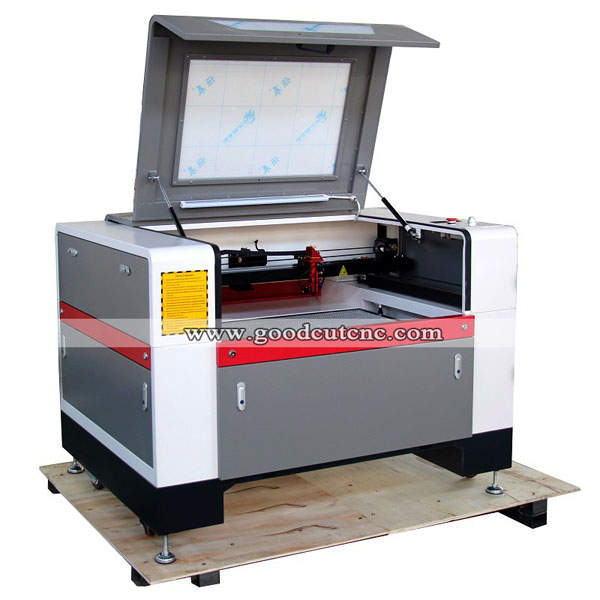

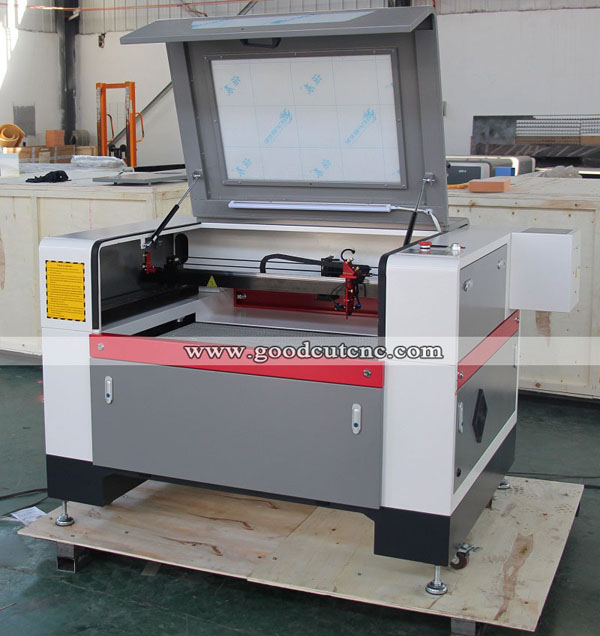

GC6090L CO2 Laser Engraving Cutting Machine

GC6090L CO2 Laser Engraving Cutting Machine

Model: GC6090L, GC1290L, GC1390L
Laser tube power: 50W/80W/100W/130W/150W
Laser tube brand: Beijing Reci EFR
Control system: Ruida controller
Product description: Co2 engraving machine Reci/ EFR CO2 laser tube. RuiDA, AutoCAD control system. wood or acrylic cutting and carving
INQUIRY EMAIL

Model	GC1390L (Optional: GC1290L / GC1410L/ GC1610L)
Working area	1300mm*900mm
Laser power	60W/ 80W/ 100W/ 130W/ 150W
Cooling mode	Water cooling and protection system
Guide rail	Taiwan HIWIN linear square guide rail
Transmission	Metal belt
Driving system	Stepper motor, high subdivision drivers
Table	Blade table (Engraving: Honeycomb table)
Cutting speed	0-60000mm/min
Resetting positioning accuracy	0.03mm
Mini shaping character	English 1*1mm
Graphic format supported	BM,P, HPGL, PLT, DST and AL
Controlling software	RuiDa control system
Application	Acrylic, wood, plastic, organic glass, crystal and other nonmetal material

1. 900*600 effective working area.(suit for small engraving job)
2. Reci CO2 laser tube.
3. Red dot pointer.
4. RuiDA, AutoCAD control system
5. Blowing retardant, mirror protection, emergency stop, digital display
6. Machine color option: blue-white, red-white, yellow-black as requirement.

• Laser-type : Sealed CO2 laser tube, water-cooling, 10.6um
• Laser power: 80W(other wattages available)
• Machine Power: 220 or 110V VAC
• Engraving area: 900*600mm, 1200*900mm, 1300*900mm, 1400*900mm, 1400*1000mm, 1600*1000mm(other size available)
• Max engraving speed: 0-30,000mm/min
• Max cutting speed: 0-24,000mm/min
• Laser output control: 1-100% software setting
• Location precision: less than 0.01m
• Highest scanning precision: 50-1000DPI
• Operating temperature: 0 - 45C
• Operating humidity: 5- 95% non-condensing
• Minimum shaping character: English 1x1 mm
• Driving system: Micro-step motor and amplifiers
• Cooling mode: Freon-based chiller and water flow sensor
• Auxiliary equipment: Vacuum/Exhaust fan, air-exhaust hose, air-assist pump
• Work surface: Iron honeycomb
• Controlling software: Ruida
• Compatible software: TAJIMA, CorelDraw, AutoCAD, Photoshop
• File formats supported: JPG, BMP, PLT, DST, DXF, AI...
• Color separation: Uses color property to set function, speed, and laser power.

Jinan GoodCut CNC Machinery Co., Ltd.

The meaning of “GoodCut” brand: Good Quality, Good Price, Good Service

济南固刻数控设备有限公司

Good Quality

1. 15 engineers with more than 10 years rich working experience, manufacture high precision machines;

2.Three-day 72-hour testing machine inspection, after confirming that the machine has no any quality problems, then it will be shipped;

3. 4 QC staffs do strict evaluations on in-coming inspections, in-process inspections, final machine inspections.

Good Price

1. GoodCut manufactures about 50 sets of machines per month, with a large sales volume. We have long-term cooperation with parts suppliers, can get advantageous prices of parts, so that the price of machine is very competitive;

2. GoodCut aims to develop long-term cooperation with new and regular customers, and to give customers the best prices with the most sincere attitude.

Good Service

1. English manual and video for machine using and maintaining, explaining the operation steps in detail;

2. Professional after-sales service staffs, providing 24-hour online service;

3. Provide free technical training and factory field operation teaching to eliminate customer worries.
