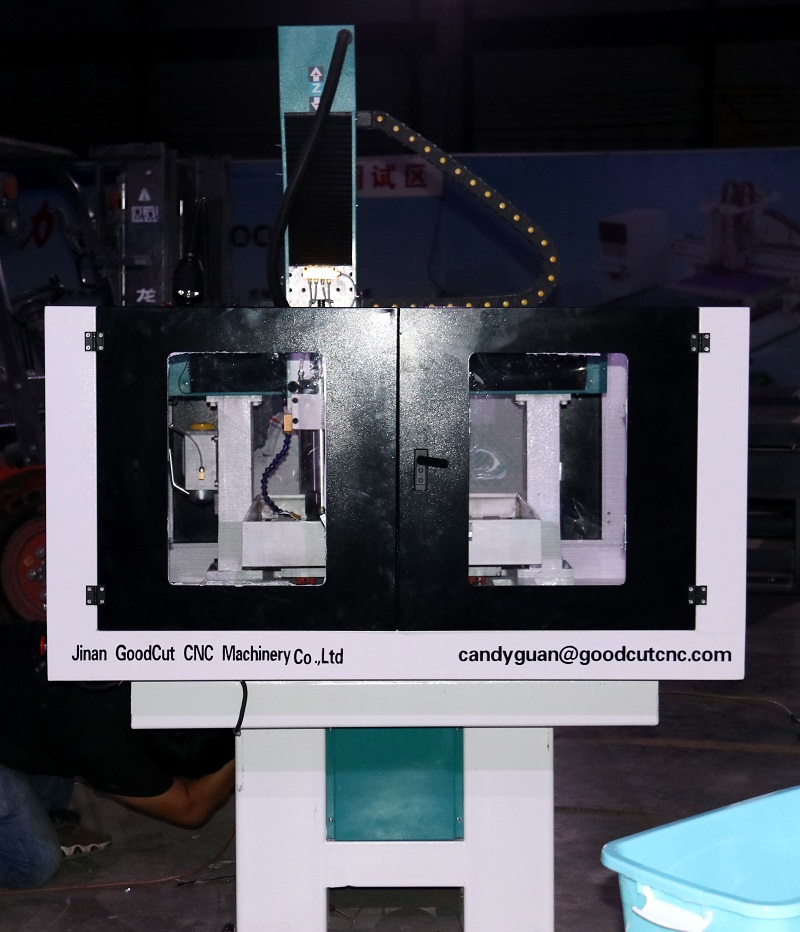

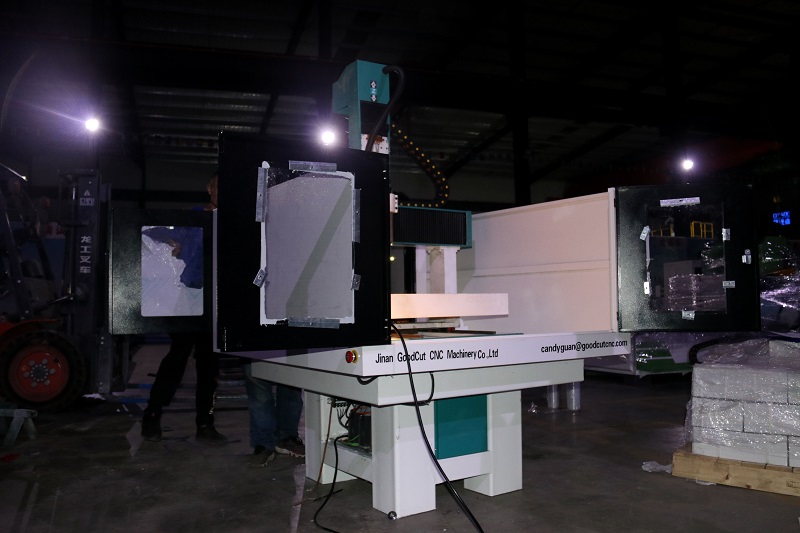

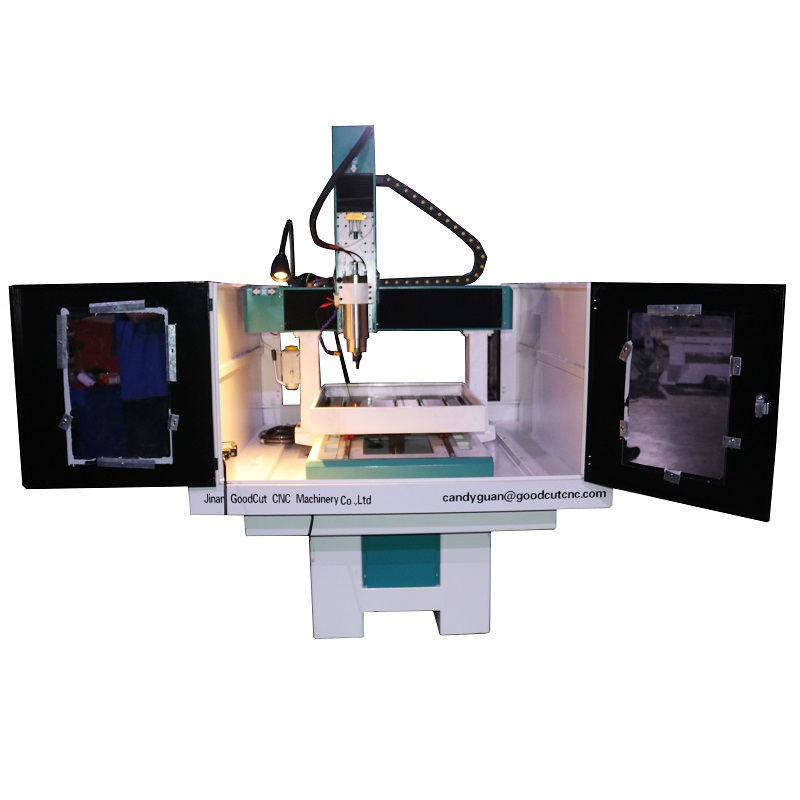

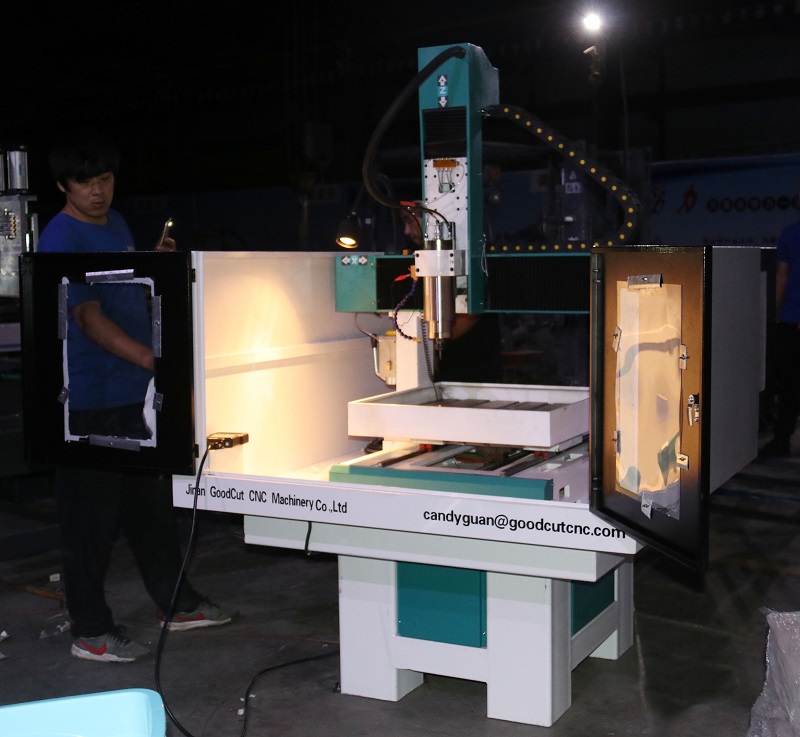

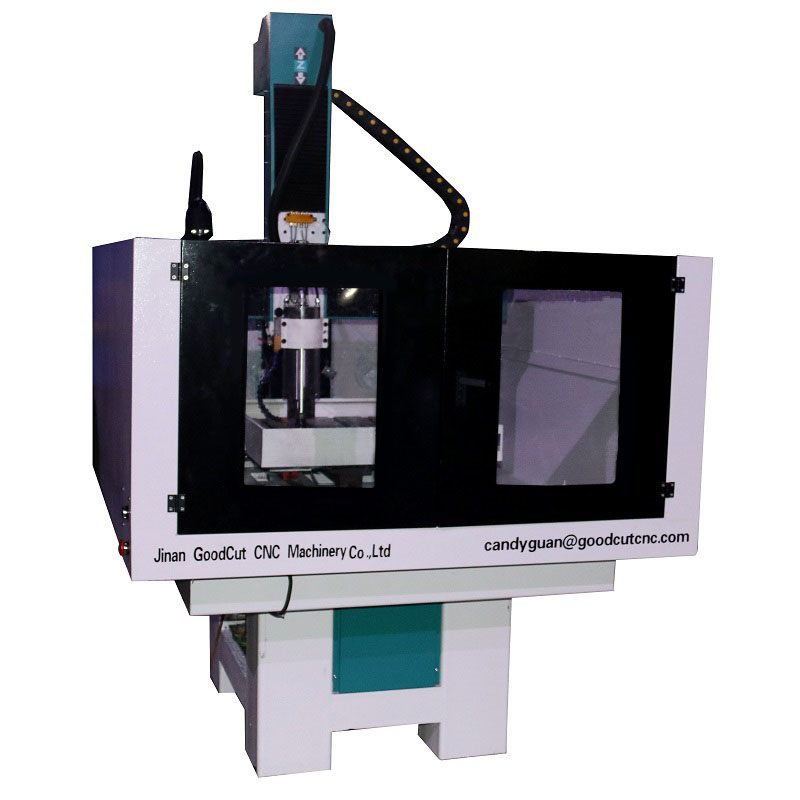

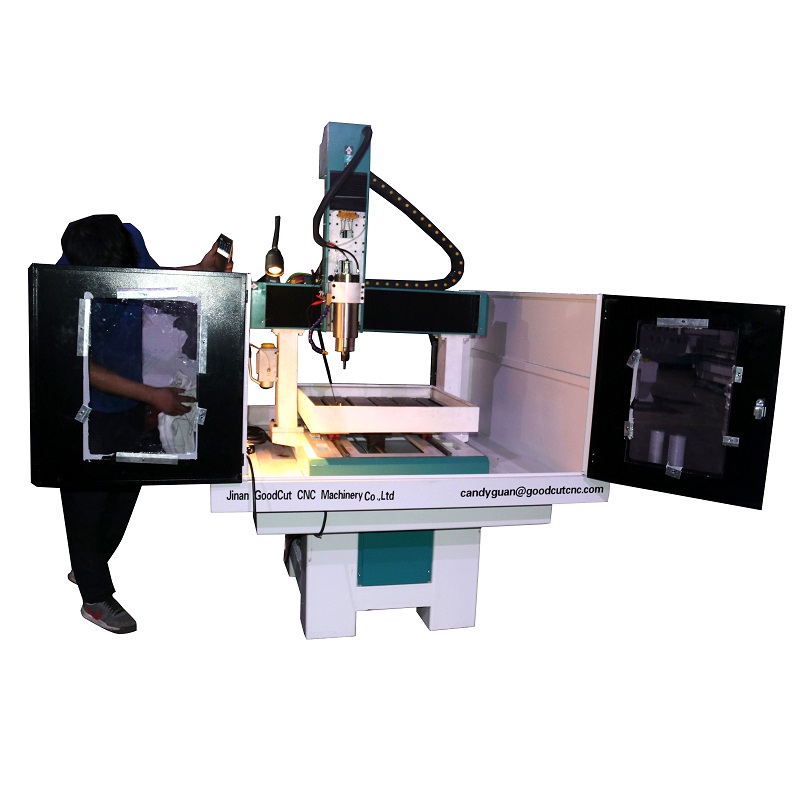

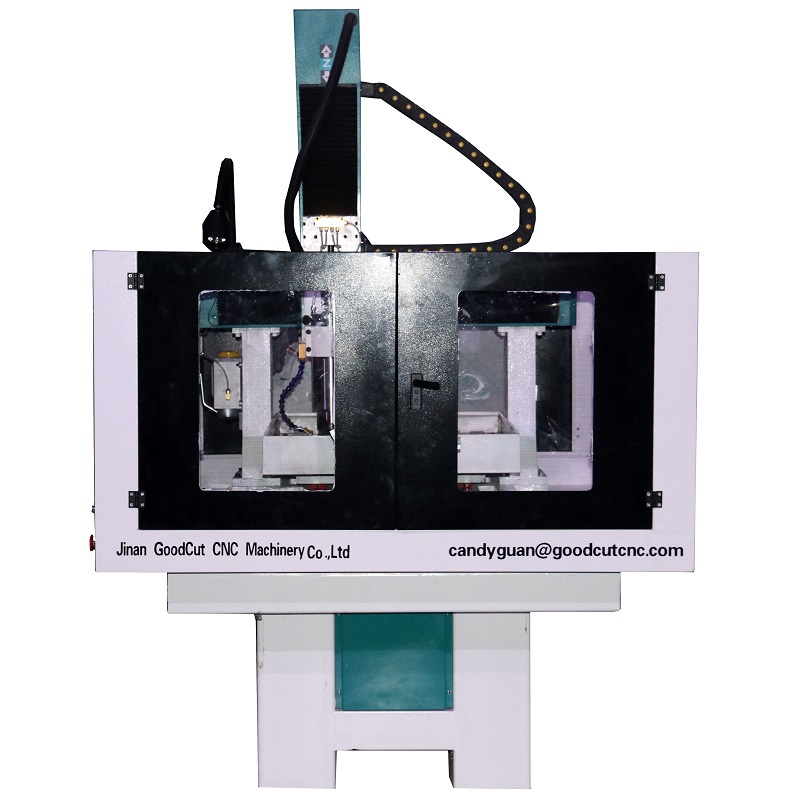

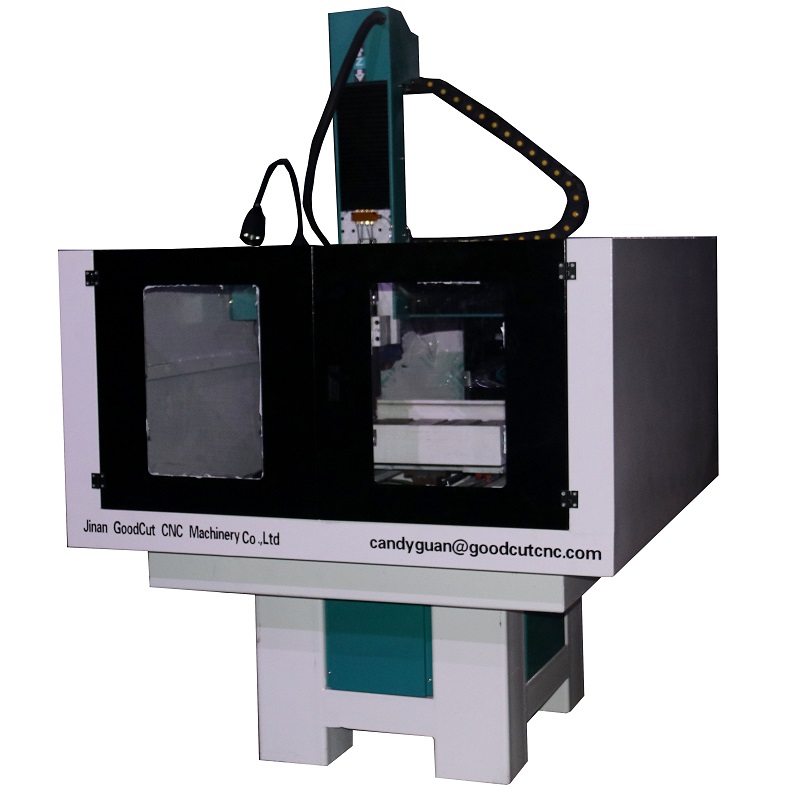

GC4040M GC6060M Mould Making Machine for Aluminum Brass

GC4040M GC6060M Mould Making Machine for Aluminum Brass

Parameter

Working area	400*400*300mm 600*600*300mm ( size can be customized )
Table	Integral cast iron countertop hard grey PVC stainless steel water tank
Spindle power	2.2-5.5 Constant power water cooled spindle + water cooled
Motor and driver	Leadshine 750w servo motor and driver
Control system	DSP A11
Transmission	TBR2505 high precision grinding ball screw from Taiwan
Rail way	Taiwan HIWIN 20mm linear guide
Inverter	5.5kw Fuling inverter
Wire	Built-in cabinet, Davos brand high flexible shielding cable, anti-electromagnetic interference, Authentic Omron electronic point switch with filter, Chint electrical components.
structure	Welded bed with square pipe, cast iron integrated gantry column,   Feed height 300mm, integral cast iron table top.
Speed	6000-10000 mm/min
Switch	Japanese OMRON Switch
Oil system	Manual oil system
Cover	The whole big encircle meal gold
Coupling	High strength grinding coupling
Others	10 metal cutting knives, 2 sets of water pump, plus machine head lamp.

Advantages:

1) The machine body structure adopt cast iron, the rigidity is good, not easy to be deformed, to make sure the machine’s stability.

2) All axis with TBI ball screw transmission, ensuring the machine fast speed and higher precision.

3) Adopting Taiwan’s high-precision square linear guide, effectively imported the precision of carving.

4) Adopt high speed water cooling motor with invariably power, big torque, strong cutting, high-frequency and long-life.

5) Professional factory with DSP A11 control system, can provider good after sales service and technology support.

6) Good software compatibility, with machine ,we provider Artcam, Aspire, Powermill etc.

7) Available for continuous work for a long time.

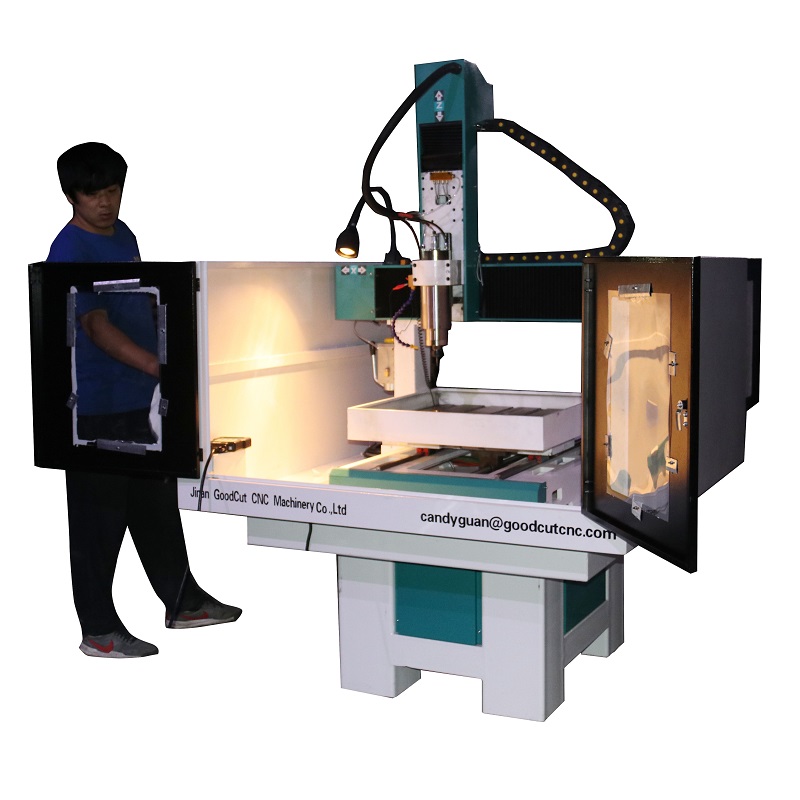

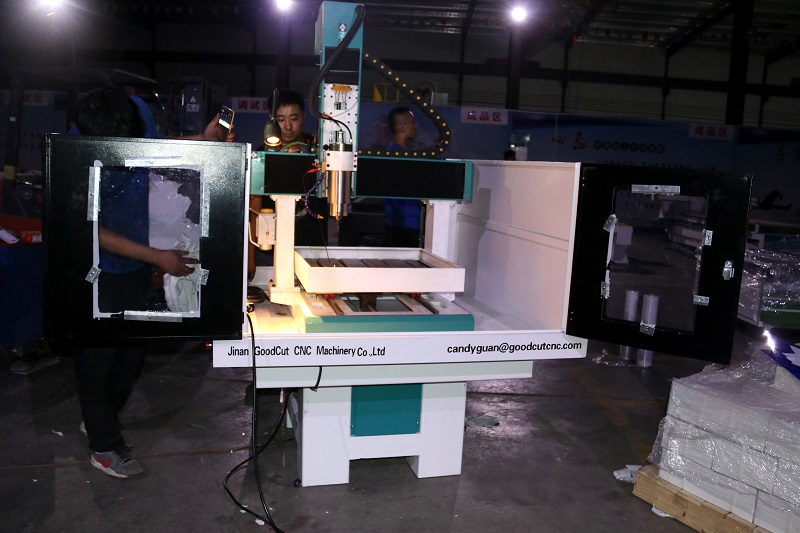

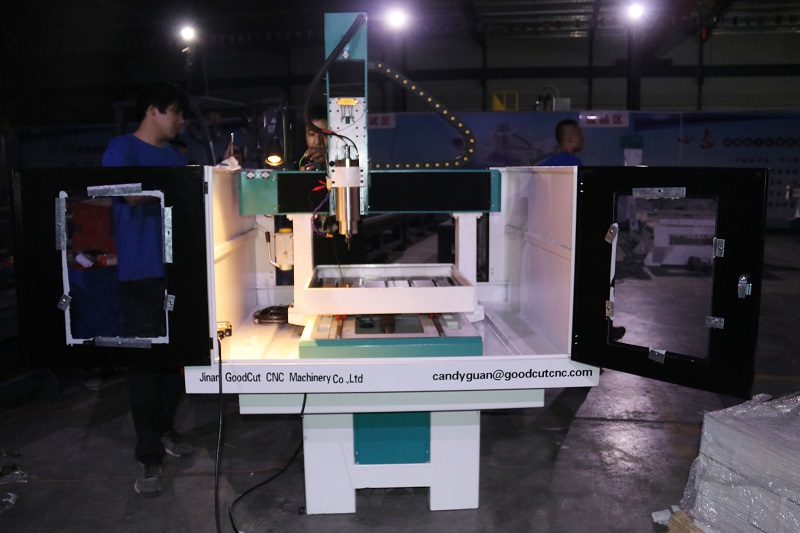

Machine details:

Welded bed with square pipe, cast iron integrated gantry column,

Feed height 300mm, integral cast iron table top.

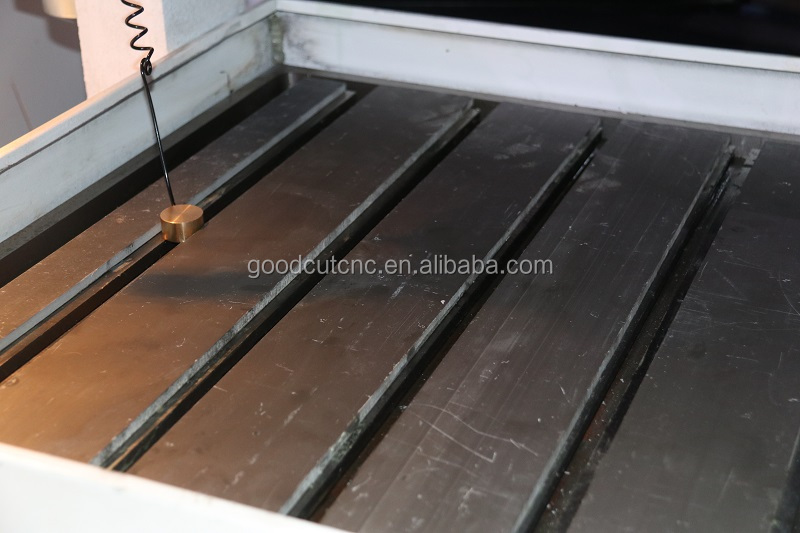

Integral cast iron countertop + hard grey PVC+ stainless steel water tank

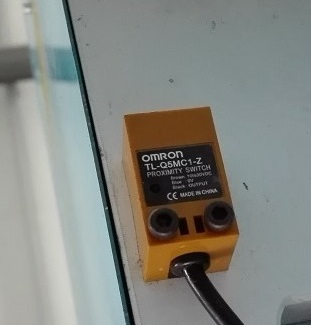

OMRON Switch

Applicable Industries:

Good at in processing all kinds of small workpiece ,widely used in advertising signs, badges, logo, mould construction equipment, mould products, industrial mold, etc.

Applicable Materials:

Suitable for most kinds of material, such as copper, aluminum, brass etc soft metal, also the acrylic, wood, MDF, double color board, stone ect non-metal material.
