Fiber Laser Cutting Machine

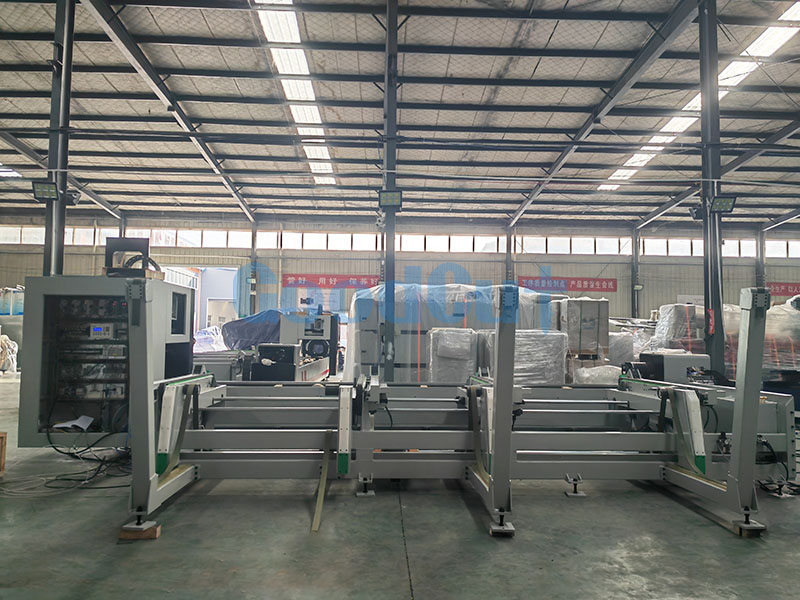

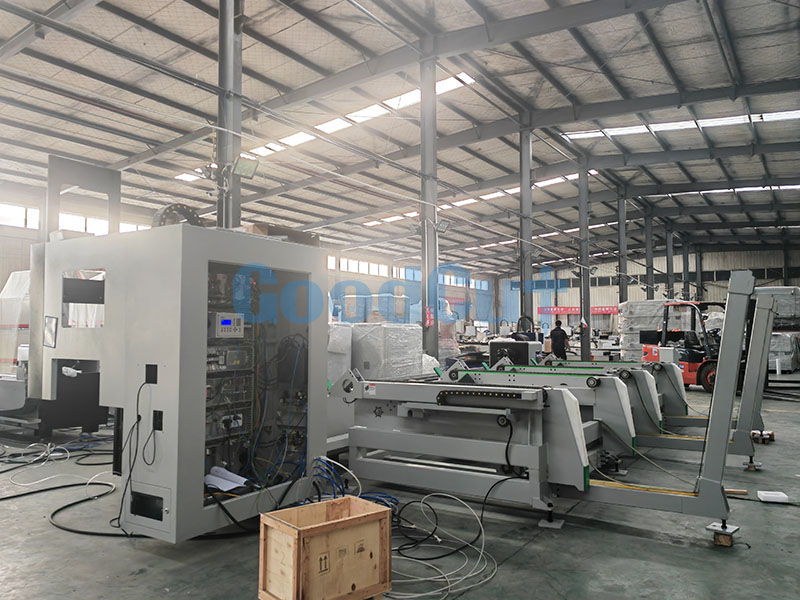

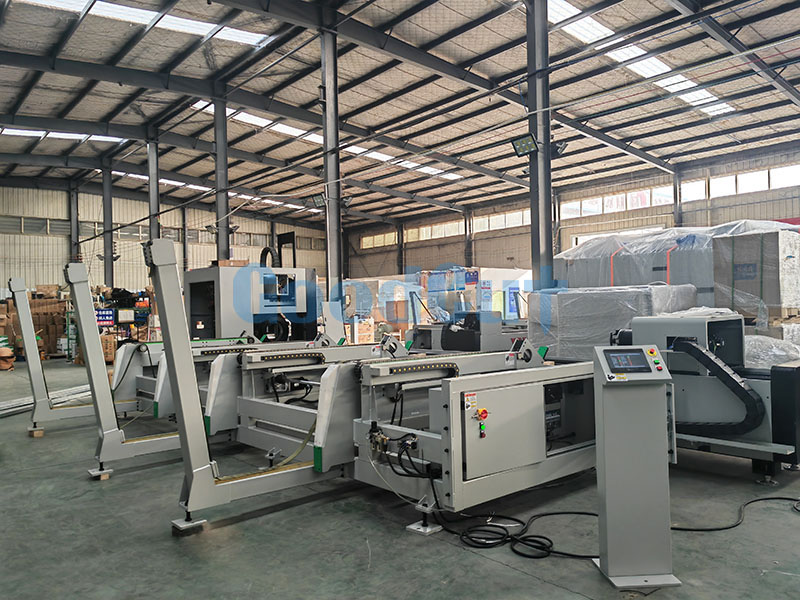

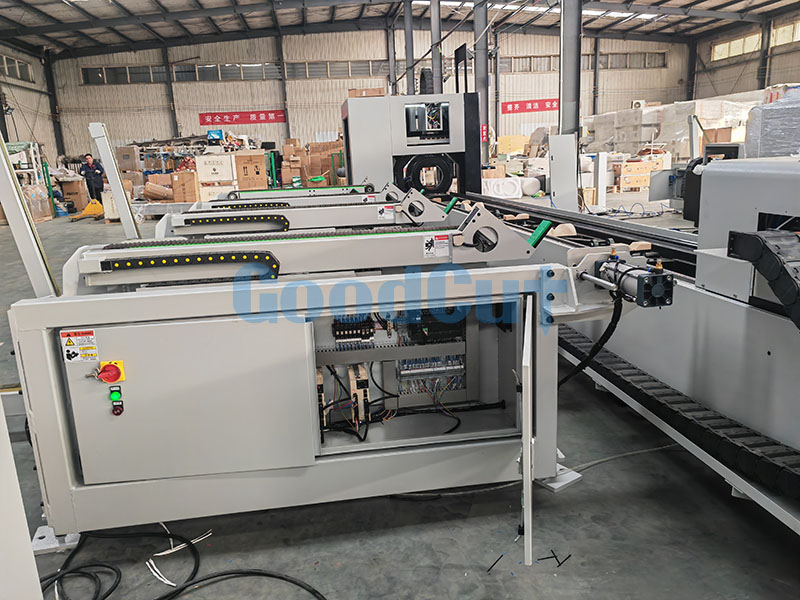

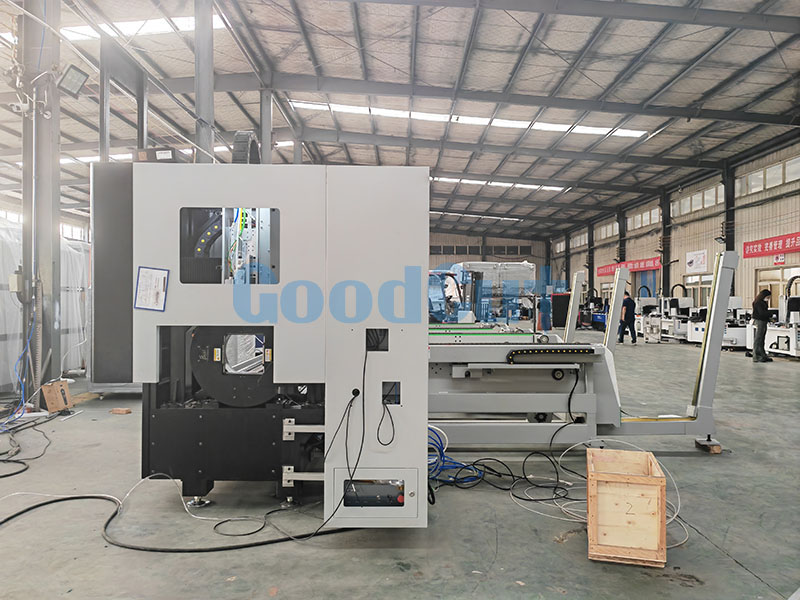

GC-FRA Auto Loading Fiber Laser Cutting Machine for Metal Tube and Pipe

Cutting 6-12m pipe
All kind of pipe, H L C round square tube
Cypcut controller
Raycus laser source
Product description: 6-12m length, 220mm diameter tube cutting. H L C round square all kind of type tube. Cypcut controller with handle Raycus/IPG laser source
INQUIRY EMAIL

GC-FRA Auto Loading Fiber Laser Cutting Machine for Metal Tube and Pipe

Parameter:

Model	GC-FRA
Max.outside diameter of round tubes(mm)	10-220mm
Pipe thickness	Depends on the power
Auto feeding	Yes
Y axis single feeding length	1200mm
Z axis adjustment range	65mm
X axis adjustment range	360°
Machine repeat positioning accuracy	±0.05mm/1000mm
Machine positioning accuracy	±0.1mm
Machine idle speed	120m/min
Maximum acceleration	1.0G
Electricity demand	380V 50Hz(customizable)
Cutting accuracy	±0.1mm
Machine size	934015601615MM
Machine weight	3T
Power	500-8000w(Optional)
Accuracy	±0.1mm
Max . raw material length (mm)	≤6200
Max. finished part length (mm)	1200
Pipe remain length (mm)	180
Multi-funtional cutting	Mitre cut, rectangular, slot, square, circular, cold mouth, special profiles

Feature:

1. This pipe/ tube laser cutting machine has the function of automatic positioning: only need to feed manually to complete the cutting, it is an ideal, efficient and convenient cutting machine for metal pipe laser cutting.
2. The pipe/ tube laser cutting machine covers a small area, the structure of the pipe/ tube laser cutting machine is precise and beautiful, and the work is solid and firm.
3. High precision: Adopt imported IPG/MAX/Raycus laser source to ensure good laser beam quality. The cutting square/ round tube length of the pipe/ tube laser cutting machine can reach 6/8 meters, cutting pipe diameter of 20-200mm /20-300mm. Adjustable with scale and good cutting quality.
4. Suitable for thin pipe laser cutting, coat hanger tube, mop pipe, mosquito net pipe, curtain tube and so on.
5. Fast speed: no deformation and burr of incision, the speed of the square tube laser cutting machine is up to 1 second spent on each cutting.
6. The pipe/ tube laser cutting machine has better effect in cutting thin circular pipes, with super low cost, no noise and no dust.
7. High flexibility: There are many types of cutting pipes, such as round pipe, square tube, flat tube and so on. The square tube laser cutting machine can also support three dimensional machining such as pipe laser cutting, punching, hollow carving and bevel cutting.
8. Equipped with multiple different auxiliary gas inputs, automatic conversion of high and low pressures and different gases.

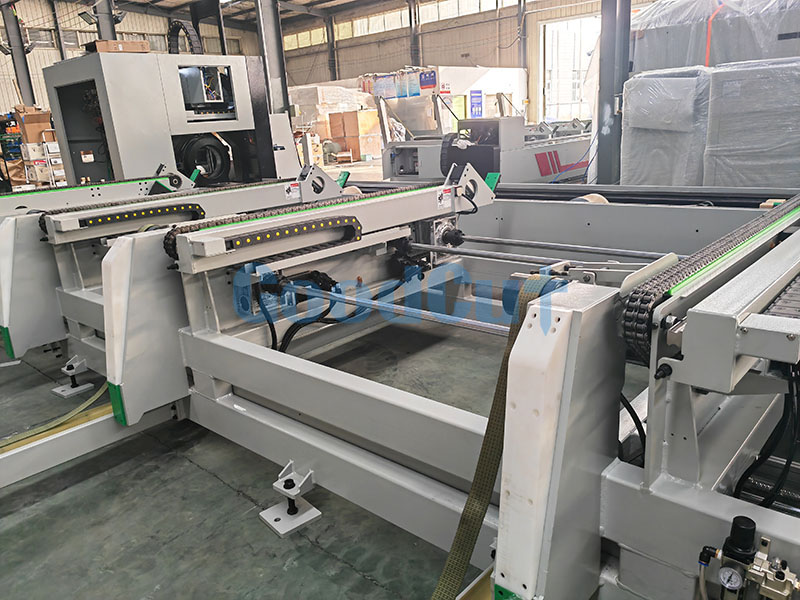

9. Auto feeding: The machine can feed the metal pipe automatically, so that save much more working time.

Application:

1. Widely used in cutting stainless steel,carbon steel, manganese steel, spring steel, titanium alloy, galvanized sheet, aluminum plate, brass, copper and other metal material.

2. Ultra-high type, special metal material cutting.

3. Used for metal round, square tube, L shaped metal, H Shaped metal, etc
