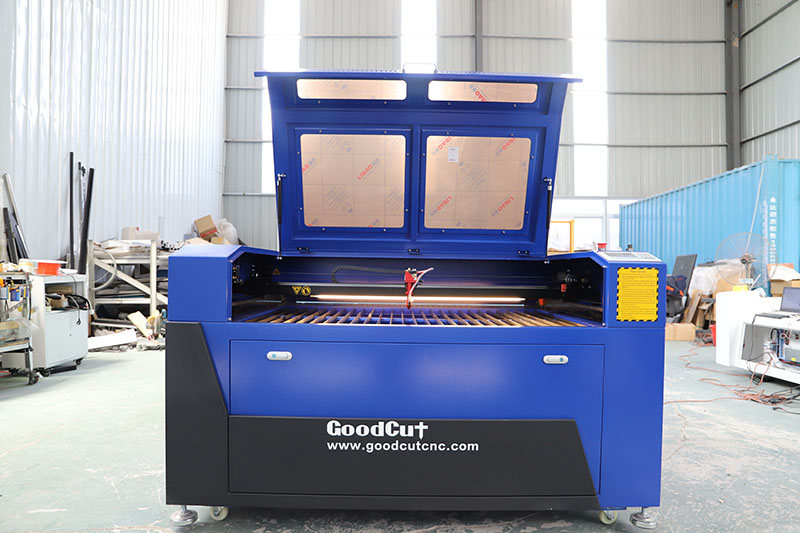

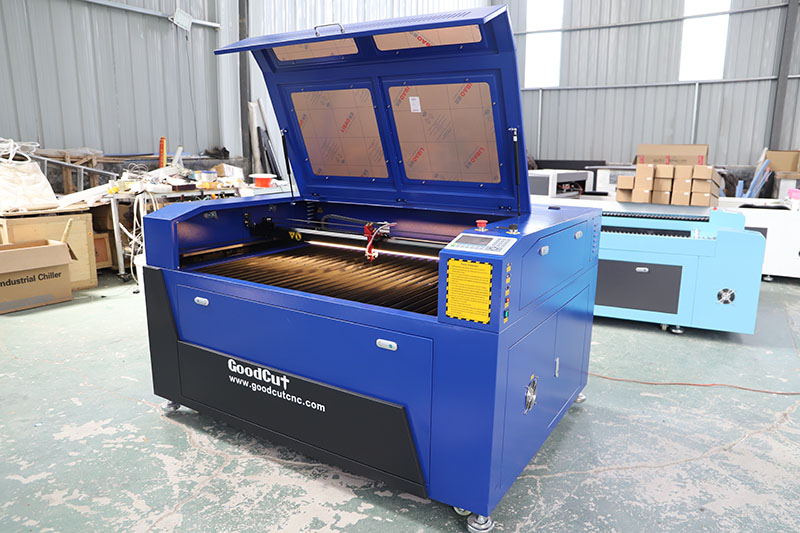

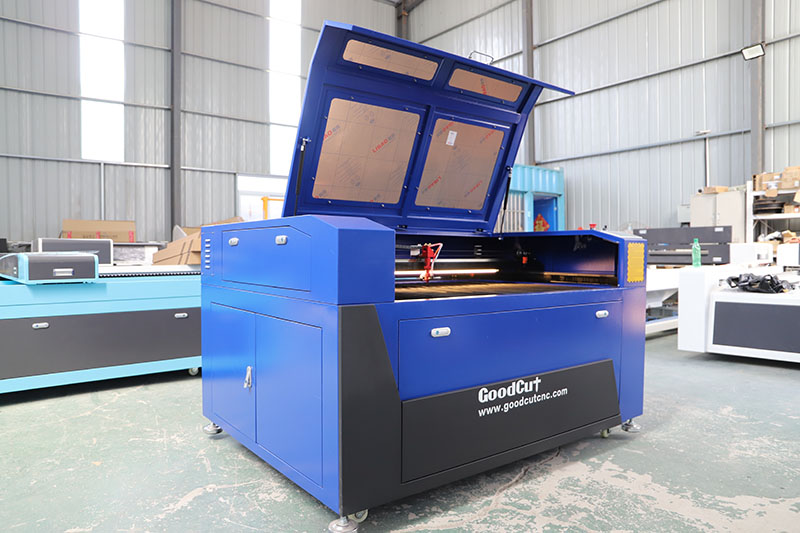

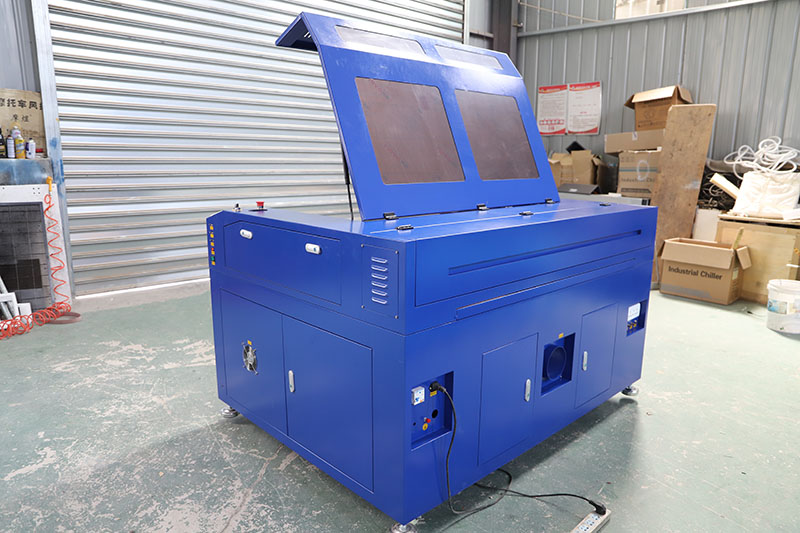

GC1390LG New Design High Quality CO2 Laser Cutter Machine For Acrylic

GC1390LG New Design High Quality CO2 Laser Cutter Machine For Acrylic

CO2 laser
Different power laser tube
RECI/EFR laser tube
Imported lens
Product description: 1300*900mm working size, other size for optional. 100w 130w 180w 300w 500w laser tube, choose according to the max cutting thickness. Cutting and engraving non-metal materials.
INQUIRY EMAIL

Feature:

1.GC-1390L CO2 laser engraving machine, able to engrave and cut various non-metals, like acrylic, double-color plate, marble, wood, MDF, plywood, textile, leather, glass, paper etc.

2.Widely applied in craft gifts, souvenir, Chinese paper cutting, advertising signs, clothes, furniture and many other industries.

3.Fast engraving and cutting speed, high precision. Can be configured with up-down lifting table, honeycomb table, rotary, etc.

4.Machine working size can be selected according to your needs.we have 600x400mm, 900x600mm, 1200x900mm, 1300x900mm, 1400x900mm,1600x1000mm, 1300x2500mm, and so on.

Also we can customize it for you.

Parameter:

Model	GC1390LG(Optional)
X,Y Working Area	1300*900mm
Laser power	60/80/100/130/150/200W
Laser type	CO2
Laser head NO.	One ( two heads option)
Reflector and focus mirrors	Imported
Linear rail	Taiwan PMI

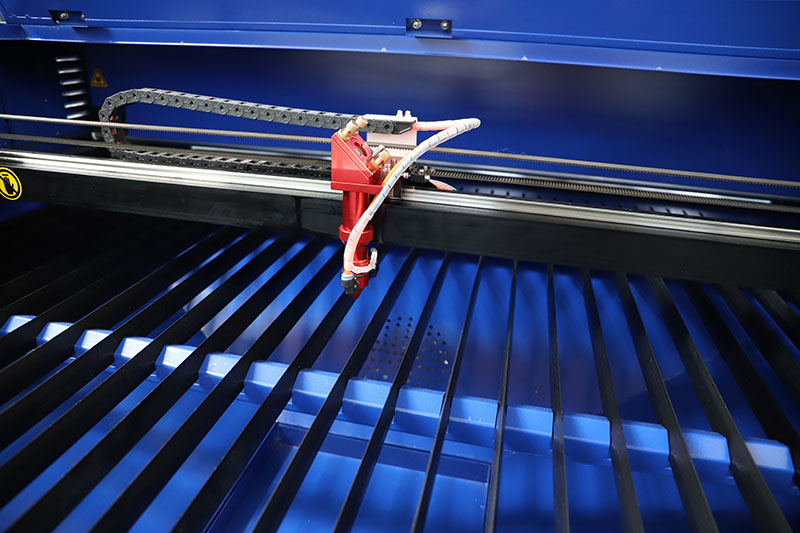

Table type	Knife and Honeycomb table
Cooling system	Water chiller cw3000
Other accessories	Air pump, Exhausted system,
Engraving Speed	0-60000mm/min
Cutting speed	0-36000mm/min
Resetting position accuracy	±0. 01mm

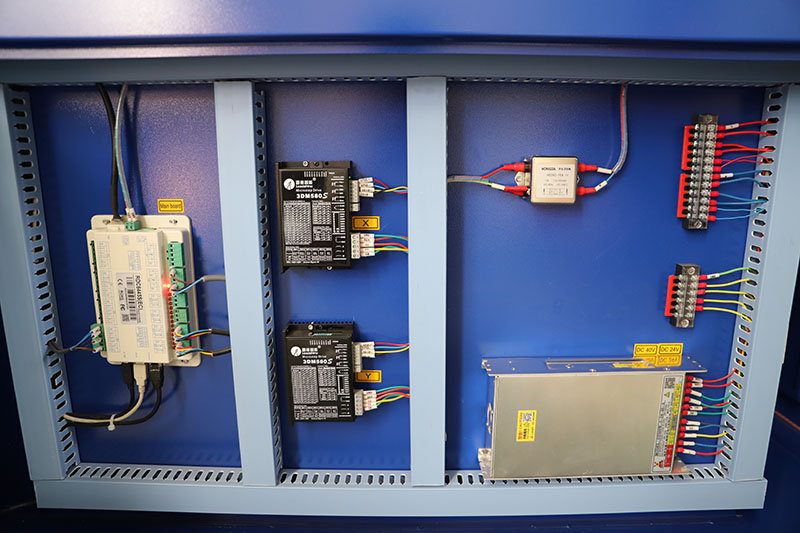

Control system	RD system
Software	Laser work
Graphic format supported	BMP, PLT, DST, DXF, AI, JPG, GIF, PGN, TIF
Software supported	CorelDraw, PhotoShop, AutoCAD, TAJIMA,Artcut
Laser Output	1-100% Software Setting
Working Mode	3-phase Stepper motor
Gross power	<2200W
Minimum shaping character	English 1 x 1mm
Working Voltage	220V/50HZ -60HZ; single phase ( 110v option)
Machine Size	1670X1310X1050mm
Packing Size	1780X1420X1260mm

Detailed Parts:

1. CO2 laser tube

CO2 laser tube power available: 60w, 80w, 100w, 130w, 150w, 180w.

60w, 80w, 100w are able to do both good engraving and cutting. 130W and above are for cutting. Stronger laser power cuts thicker.

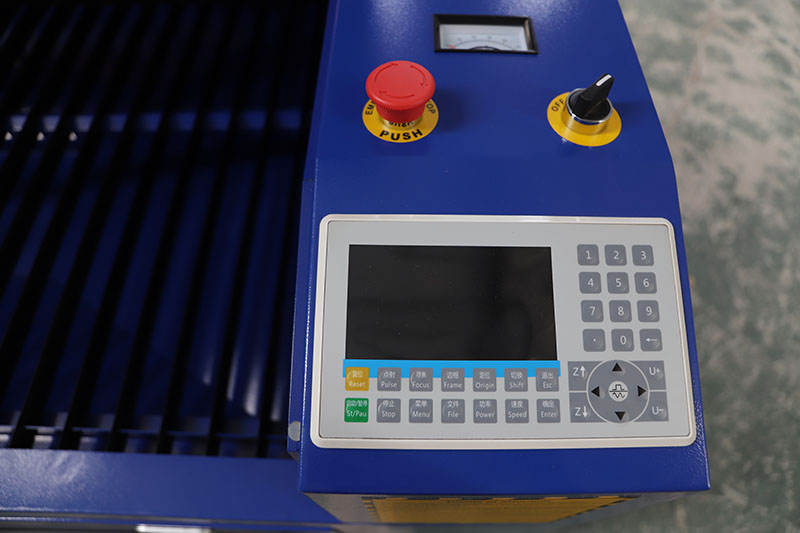

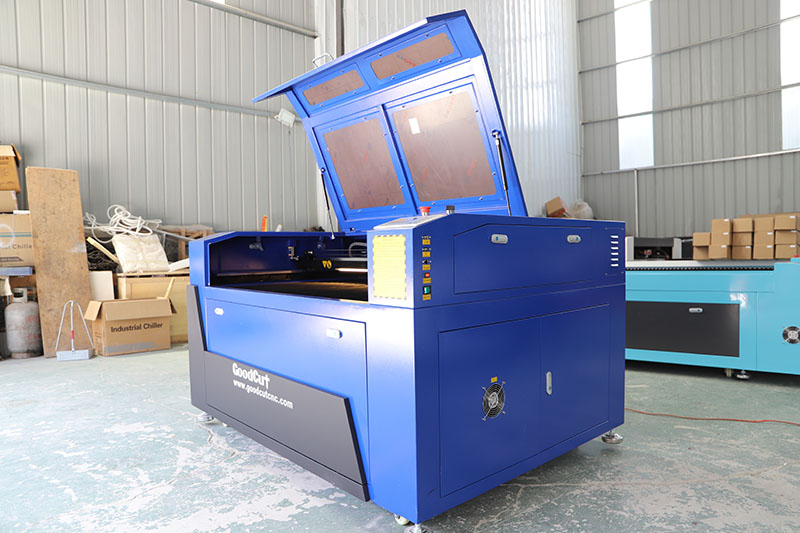

2. Front operation panel

DSP control, LCD display, cutting file and route is showing on the display. Laser output power and working speed can be set on this panel (and in machine software as well).

4. Emergency stop button.

Ampere meter for better observation of laser tube and laser power supply working condition.

5. Water cooling system

water pump / water chillers

S&A brand water chillers, best in china, it is used to cool the laser tube. Different chiller models are available for different

wattage laser tubes: CW-3000, 5000, 5200, etc.

6. Air blowing pump

The air pump blows air to the laser head. It removes the heat and avoids material burning. Engraving cutting is better.

7. Exhaust fan (extractor)

Exhaust fan can remove the fumes caused during engraving and cutting.

Advantage:

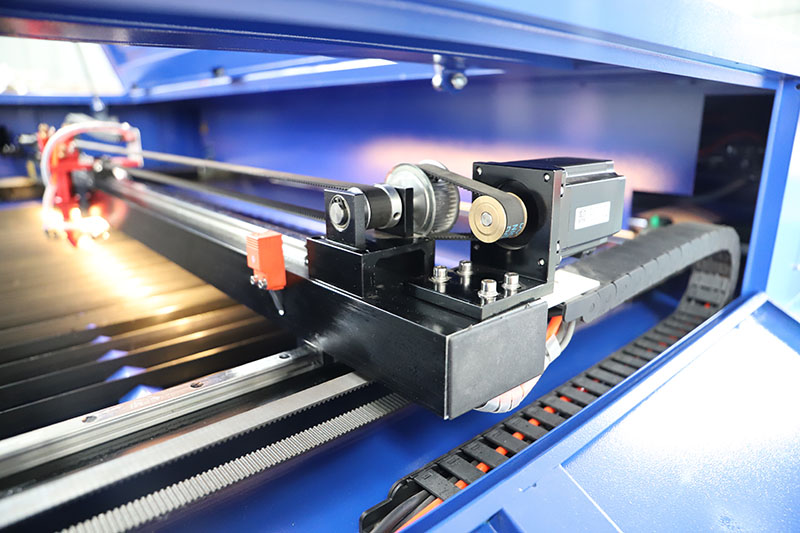

1. X&Y axis with HIWIN high accuracy square rail, perfect performance.

2. Only manufacturer adopts square tube framework machine body 40% higher than simple iron sheet structure, never distortion. Prevents machine from quivering and resonance during long time work.

3. High efficiency tube with stable laser path, life time reaches to 10000 hours.

4. Red cross point offers highest accuracy position.

5. Humanized and modern design makes work happy, safe and easy.

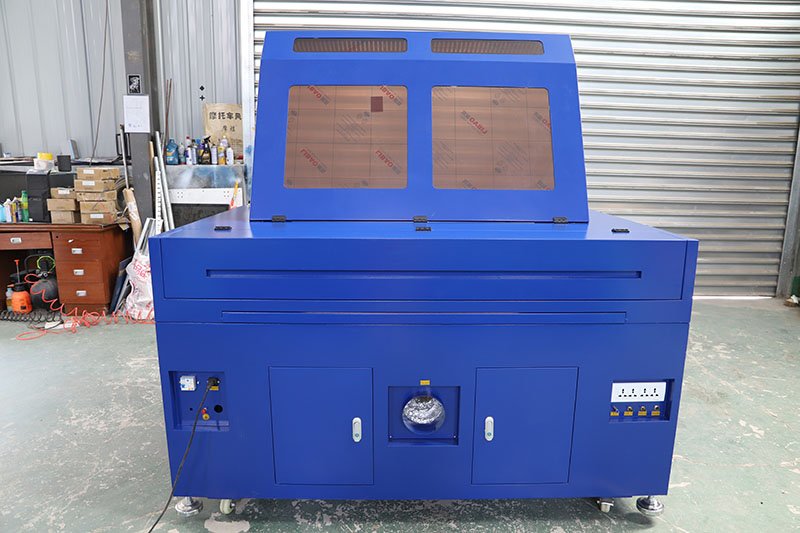

6. Transparent acrylic watching door, easy checking work process.

7. Professional motion control card offers continue fast curve cutting together with shortest path selection. Shorten work time.

Application:

1) Acrylic engraving and cutting
2) Wood/MDF engraving and cutting
3) Leather engraving and cutting
4)Paper engraving and cutting
5) Rubber sheet engraving and cutting
6) Double color board & coated board engraving
7) Marble and stone engraving
8) Cylinder engraving
