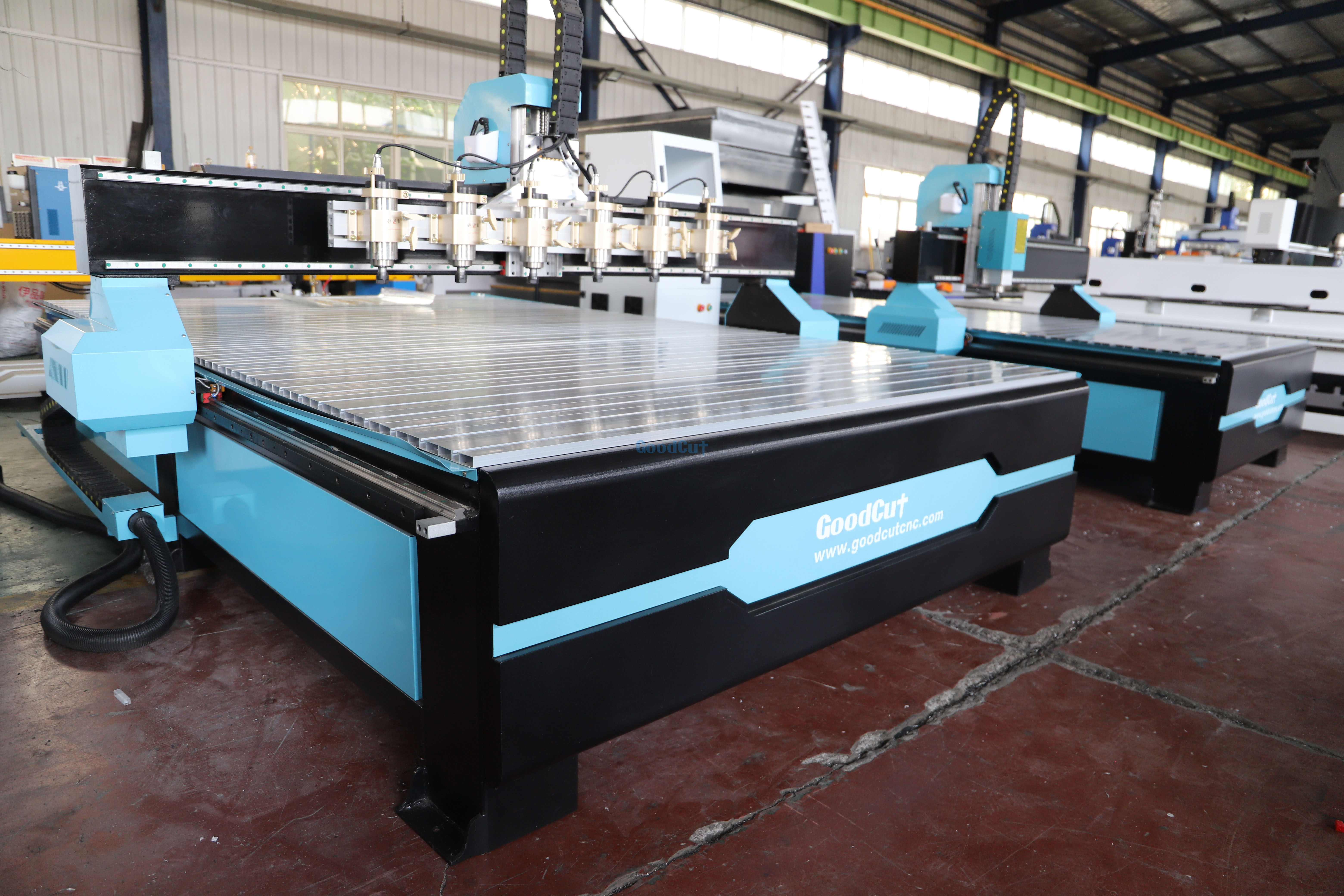

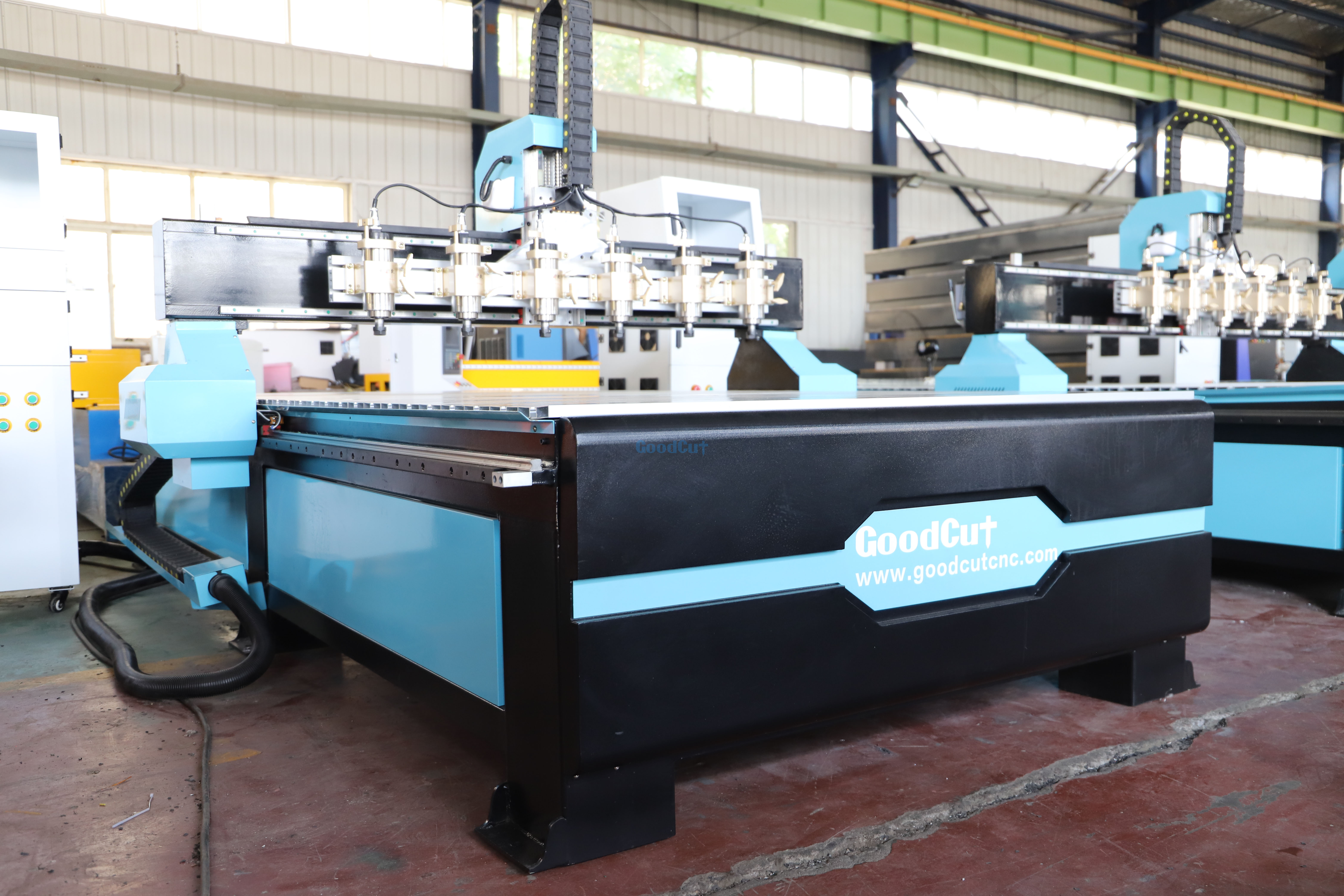

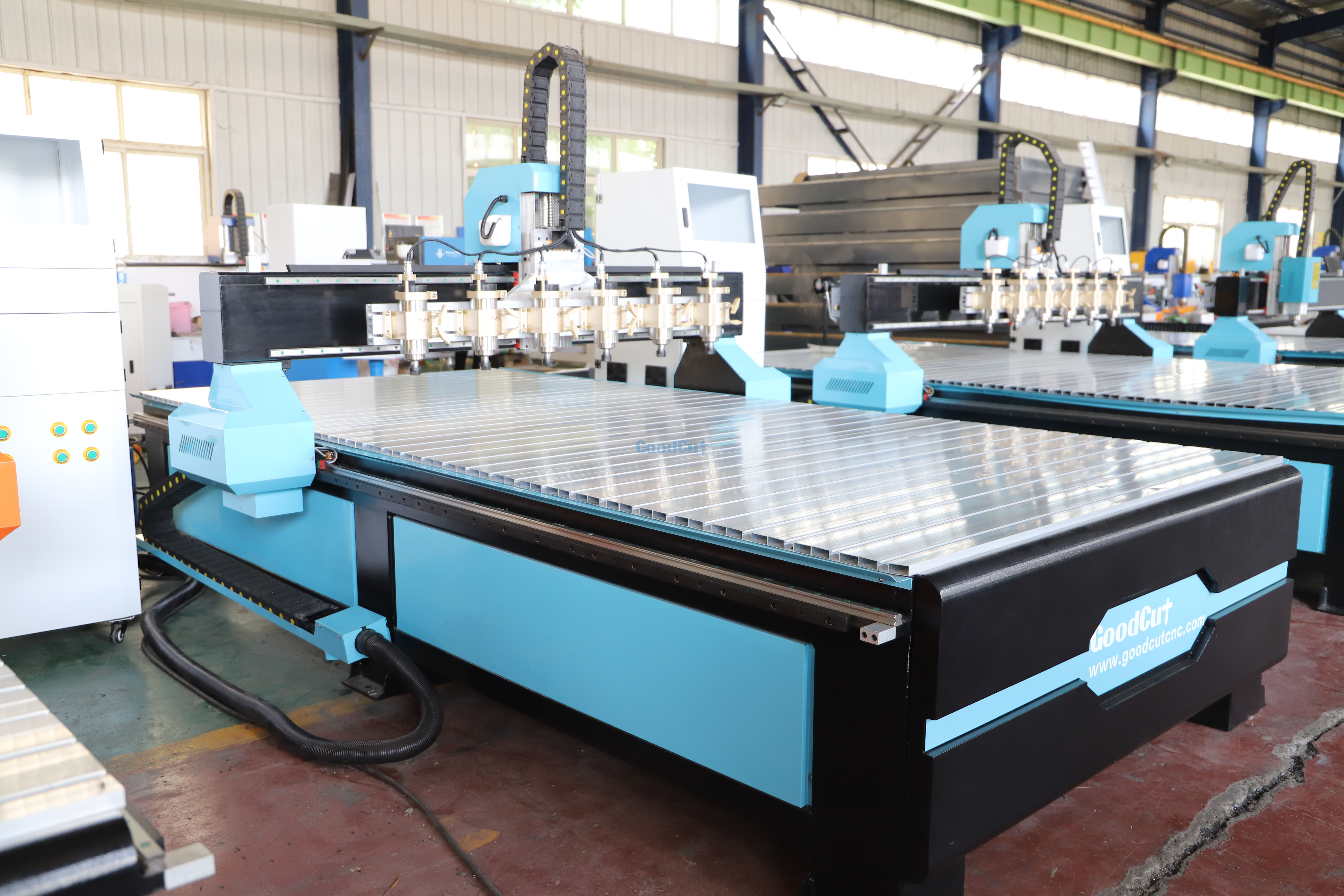

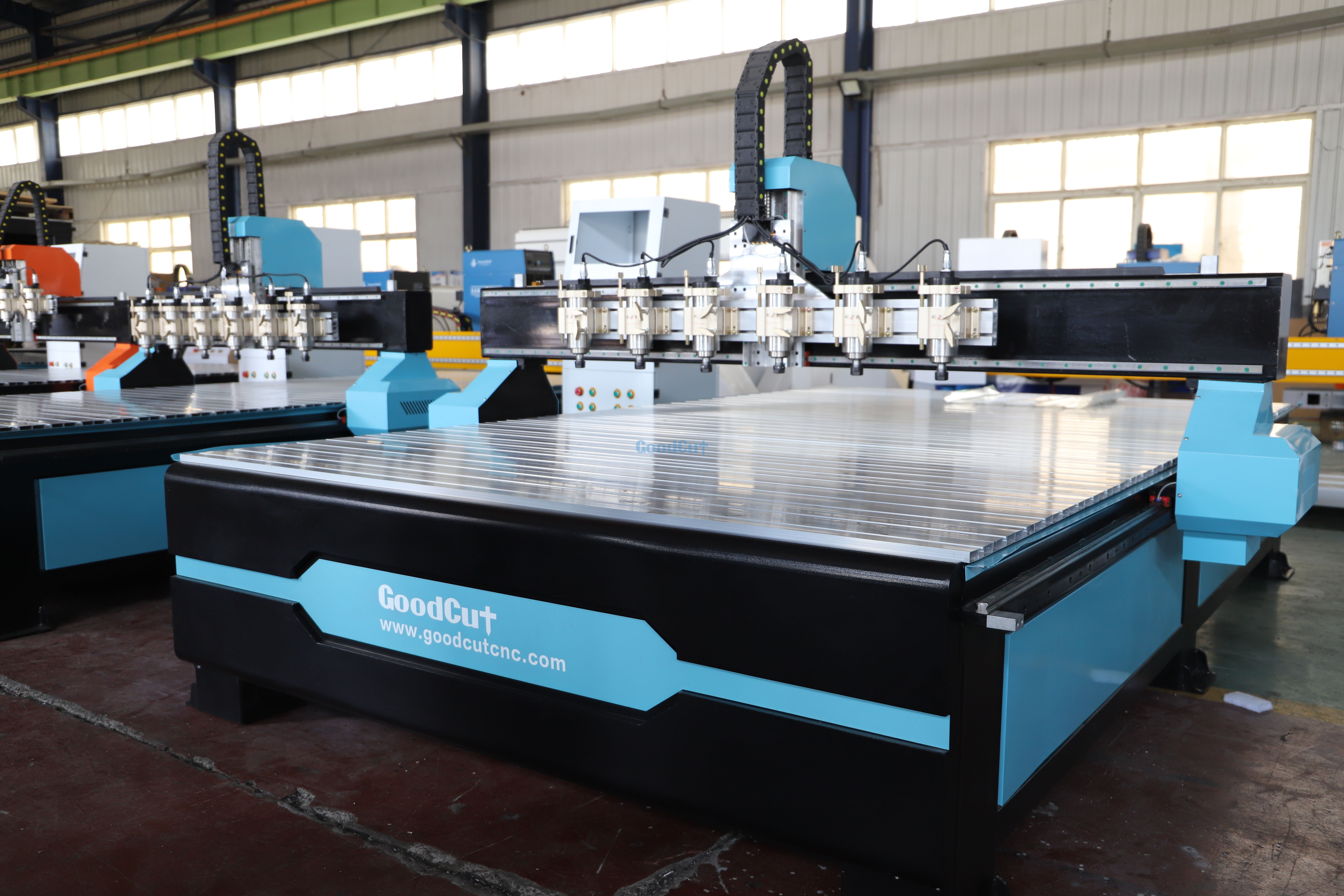

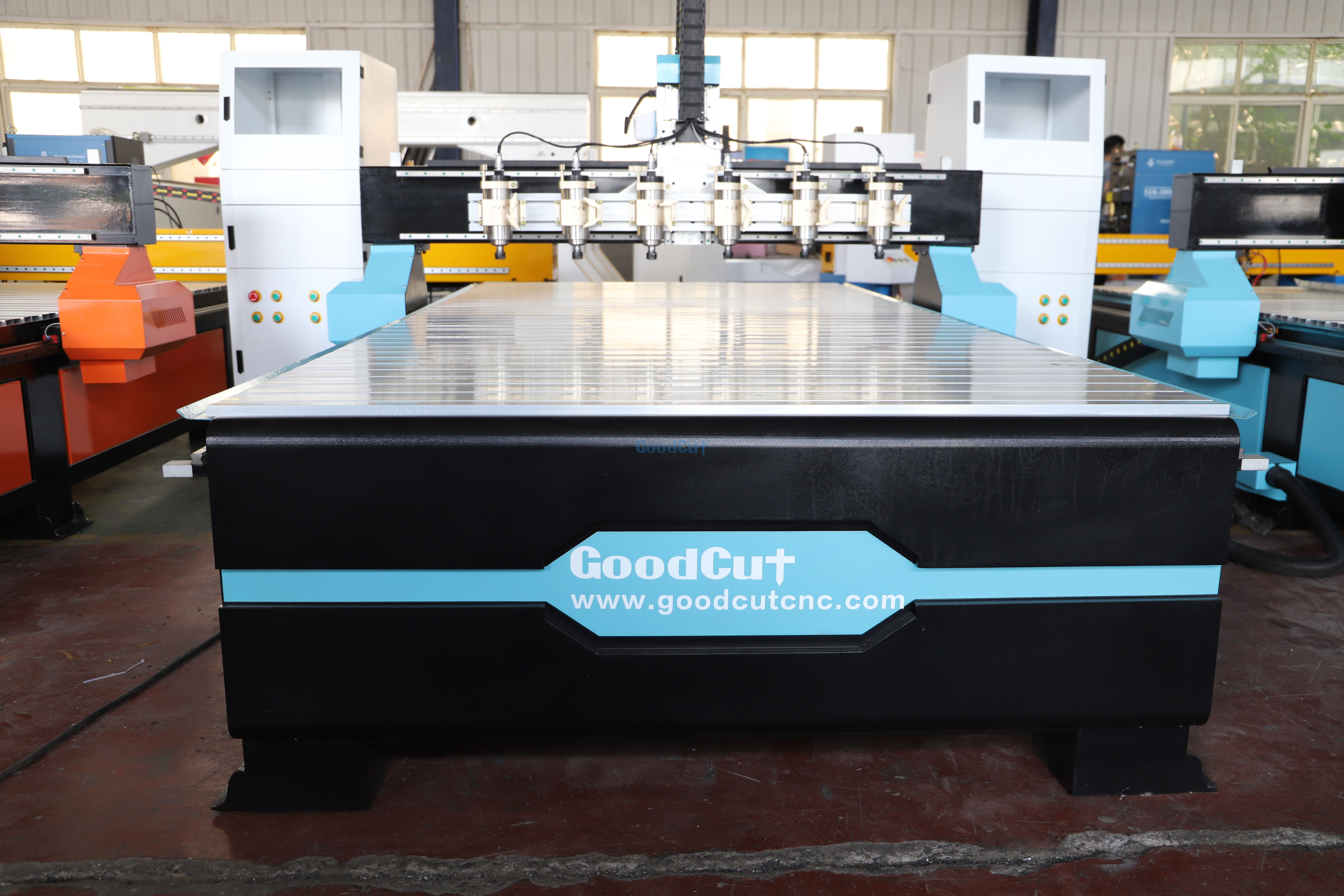

GC1325-6H Multi-Head CNC Router Machine For Wood

GC1325-6H
3.2kw 4.5kw 5.5kw, 6kw HQD/HSD water/air cooled spindle
Motor and Driver: Leadshine/ Taiwan Delta/ Japan Yaskawa
Control system: DSP/ NC studio/ Mach3
Product description: multi heads multifunction flat carving engraving 2.2kw water cooling spindle*6psc. The quantity spindle can be customized.
INQUIRY EMAIL

1. Working size 1300*2500*200mm, machine size can be customized.

2. 6*2.2kw water cooling spindle, can work at the same time , so higher efficiency

3. High Efficient German Rack gear transmission; X,Y axis Rack and pinion, Z axis German Ball Screw

4. Taiwan Hiwin square guide rail

5. Leadshine hybrid servo motor and driver, guarantee working precision, have no loose step situation

6. Fuling Inverter

7. Machine body is air posture steel structure. Gantry moving type, guide rail support surface is very stable.

Rack drives smoothly to ensure no distortion, no jitter for long time high-speed operation.

8. The main configurations are used imported or joint venture brand components, performance is very stable.

9. Simple operation, designed to be more friendly and humanized, so you can use the machine very easily.

10. Software:

Along the cnc drouter machine with carved software,advanced file pretreatment function can correct the error in the files, and is compatible with the process codes of multiple national and international software. (such as Powermill, UCANCAM, Type3, Artcam,).

Descriptions	Parameters
Model	GC1325-6H
Working area	13002500200mm
Control system	DSP / Mach3 / Weihong control system etc
Spindle	2.2kw*6 water cooling spindle
Spindle speed	0-24000RPM
Inverter	Fuling inverter / BEST inverter
Motor and driver	6 piece*hybrid servo motor or stepper motor
Voltage	380V, 3ph, 50Hz
Linear rail	Sweden ABBA #20 linear guide for all axis
Table structure	New type thicker and bigger heavy duty welded frame and gantry
Table surface	T-slot work table
X,Y axis transmission	Helical rack and pinion drive for X,Y axis
Z axis transmission	Taiwan TBI ball screw for z axis
lubrication system	Manual lubrication system
Code	G Code, HPGL Code
Surroundings	Temperature: 0-45℃; humidity:30%-75%
Software	Type3 software, Ucancam software, Artcam software
Packing	Wooden Box

Detailed parts

High quality Fuling inverter

DSP control system, not need to connect computer, it is easy to operate.

Leadshine hybrid servo motor and driver, very famous brand in China, has high quality.

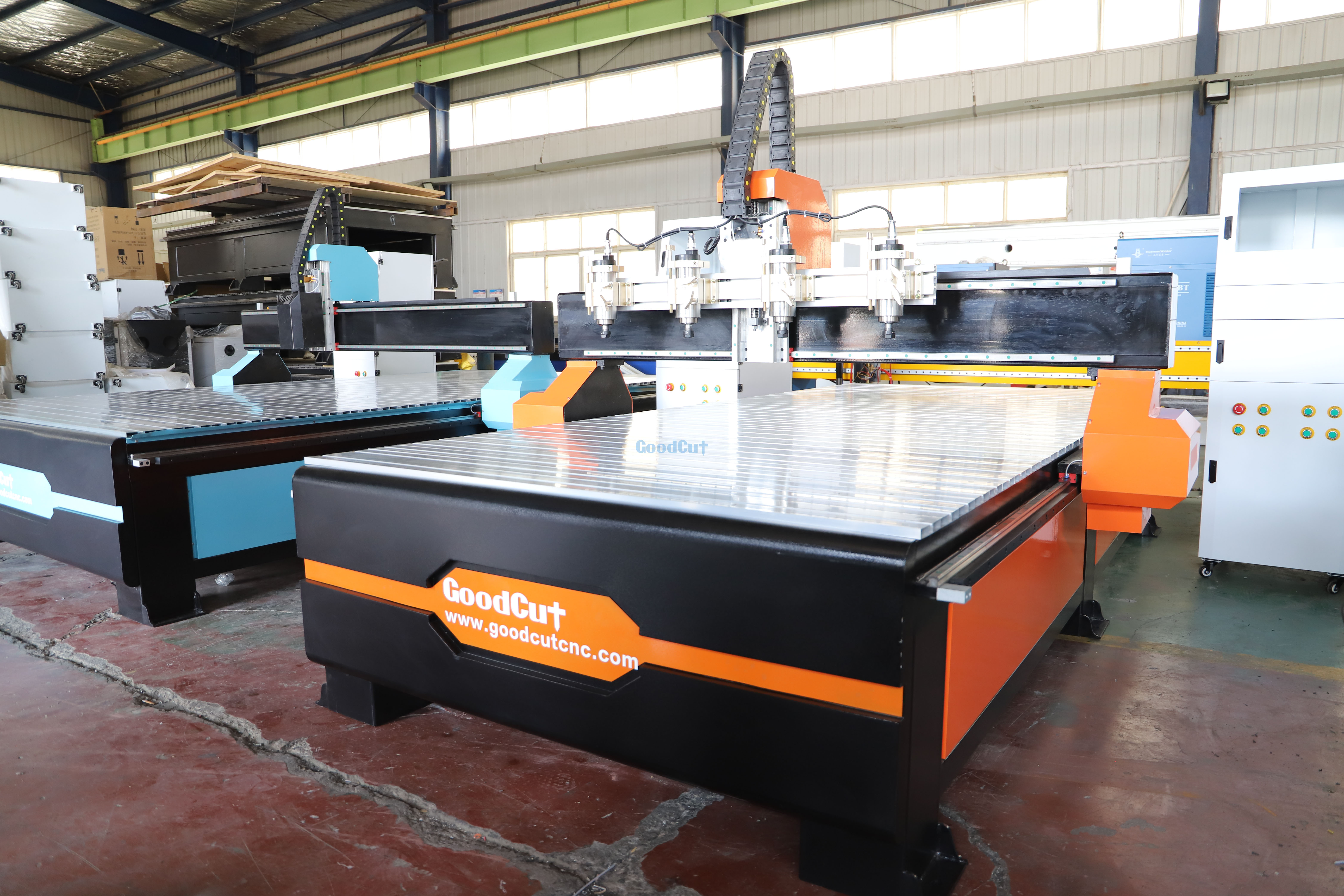

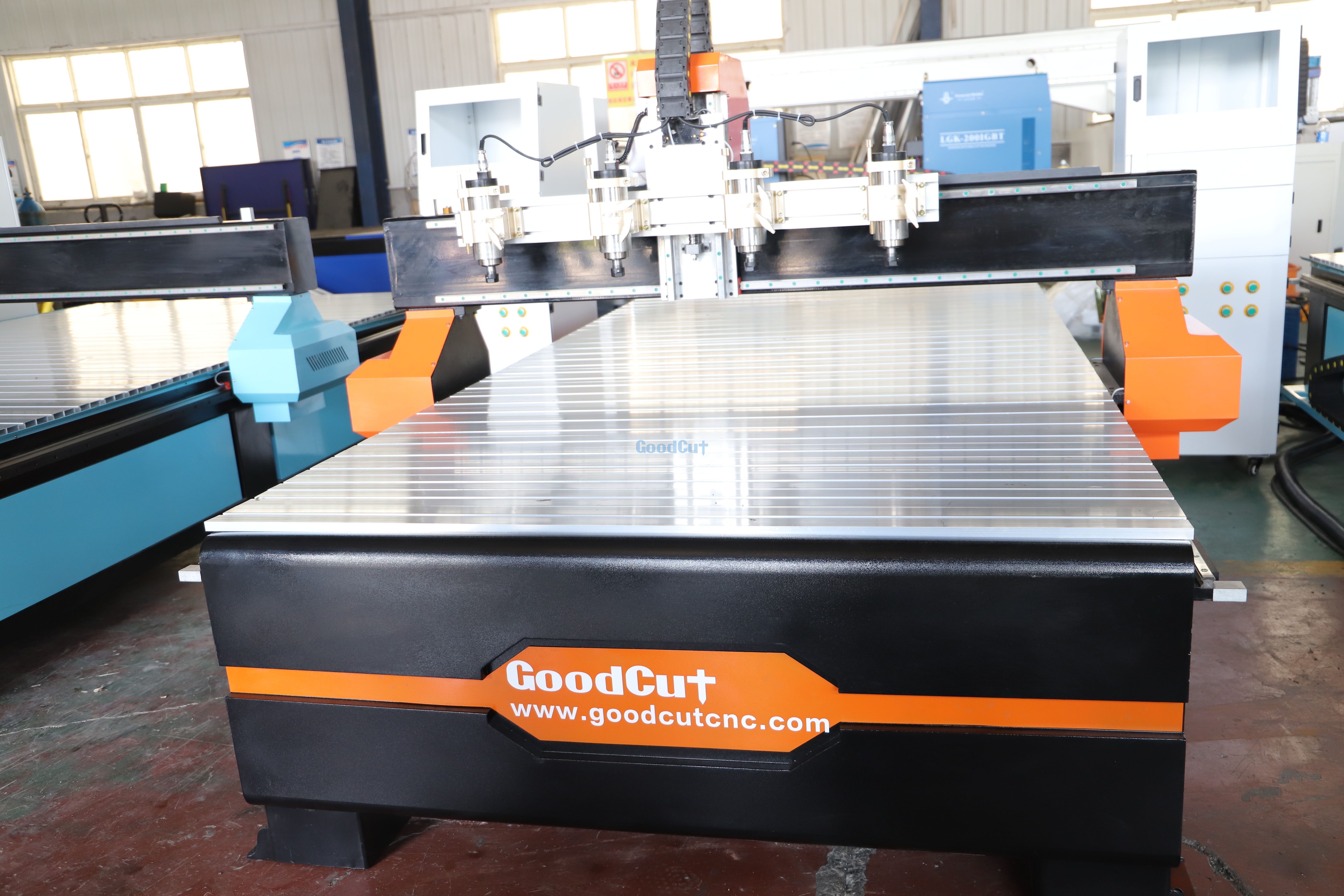

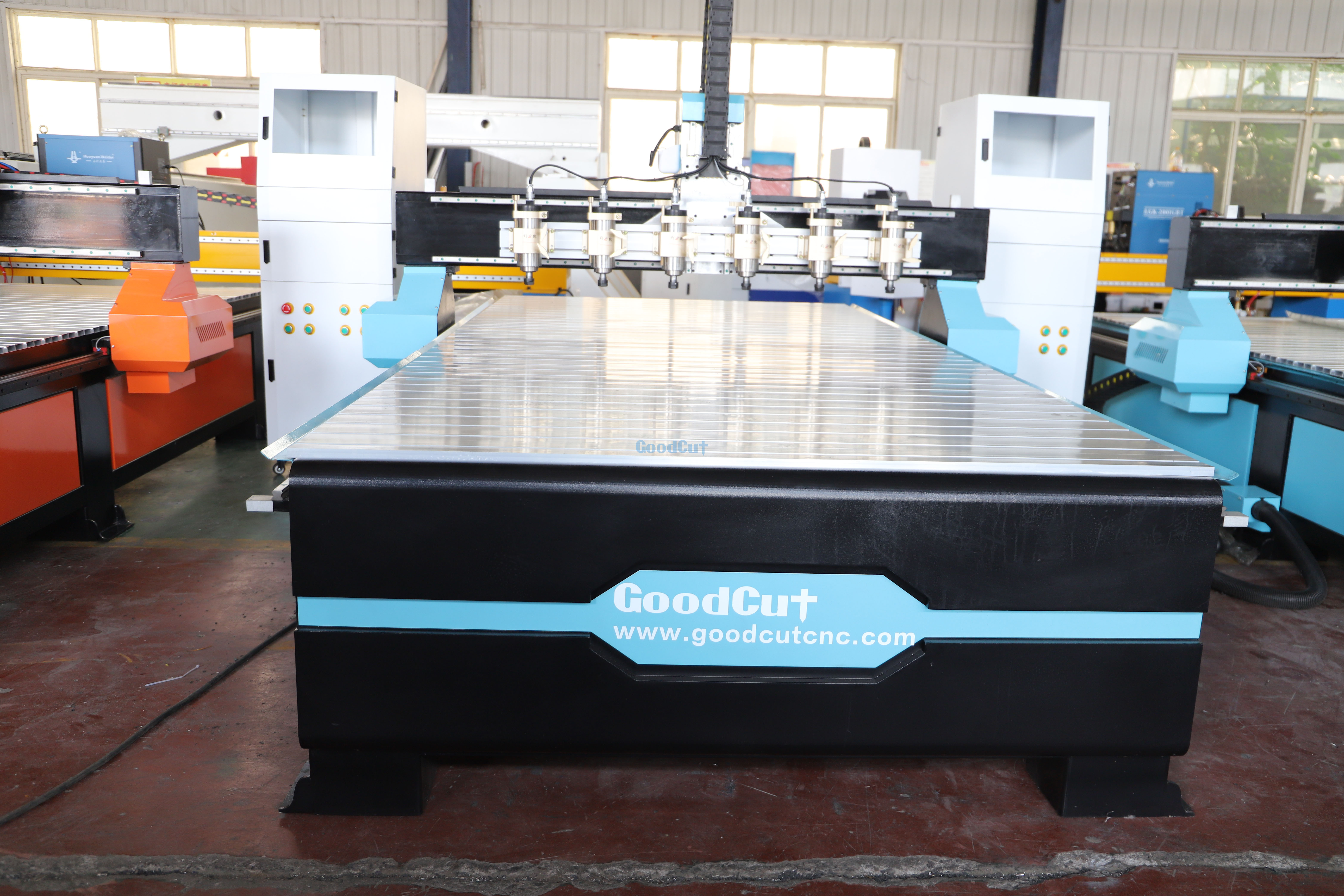

Multi heads, can work together.

Application:

1. Advertising industry

Signage; Logo; Badges; Display board; Meeting sign board; Billboard

Advertising filed, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.

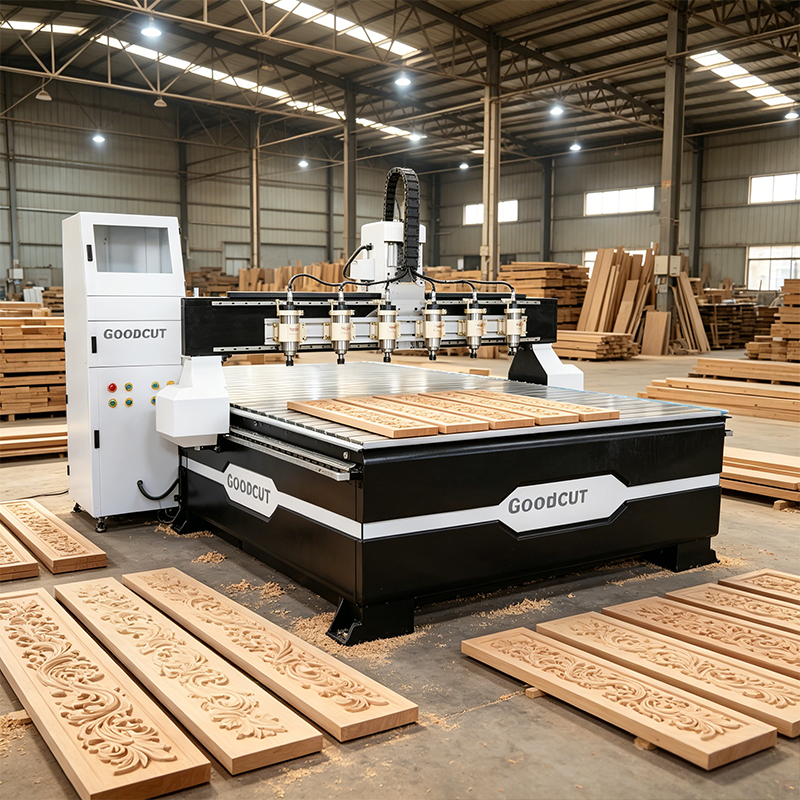

2. Wood furniture industry

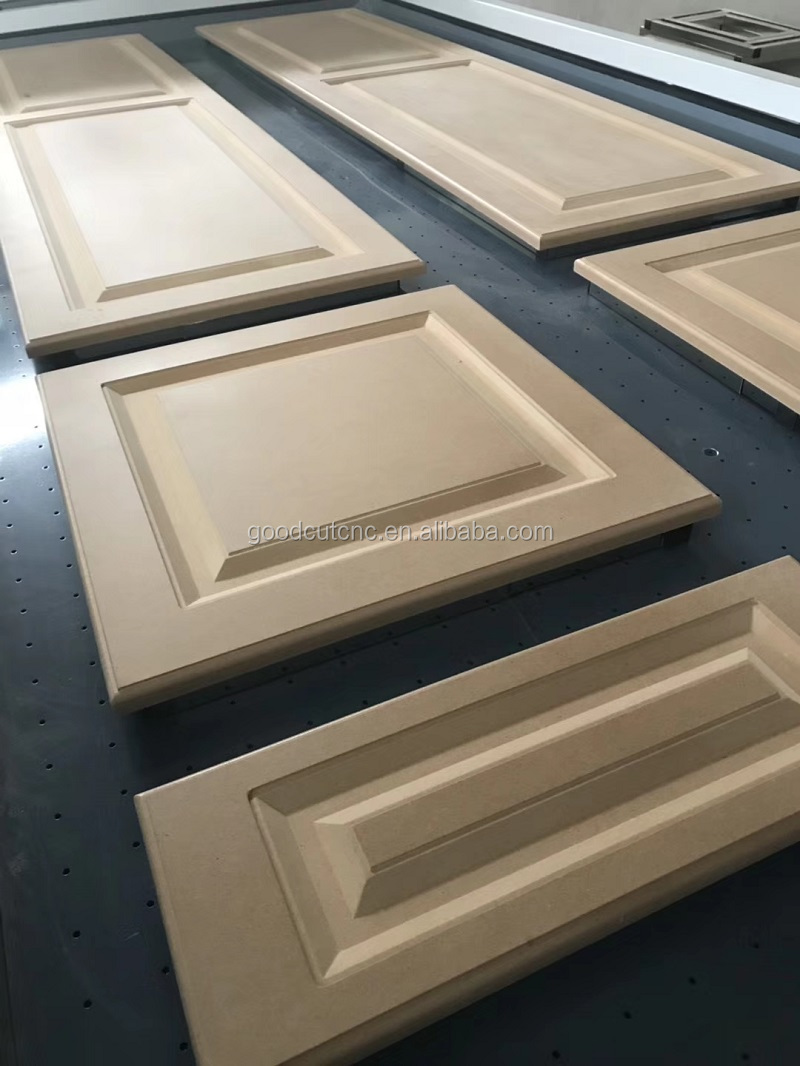

Doors; Cabinets; Tables; Chairs.

Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.

3. Die industry

A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand , plastic sheeting, PVC pipe, and other non-metallic mold.

4. Artwork and Decoration

wood crafts; gift box; jewelry box
