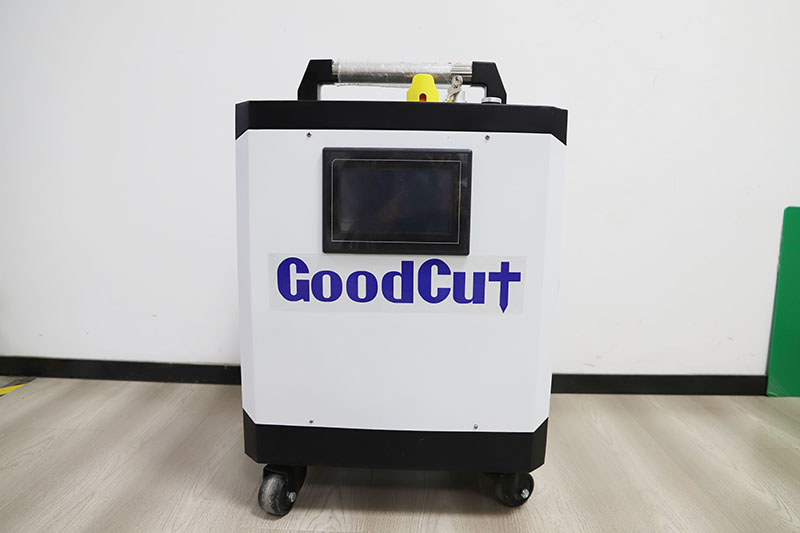

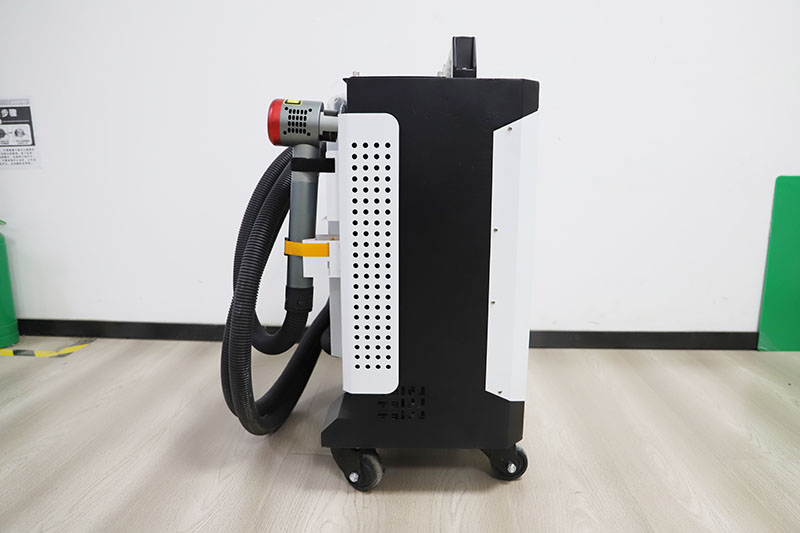

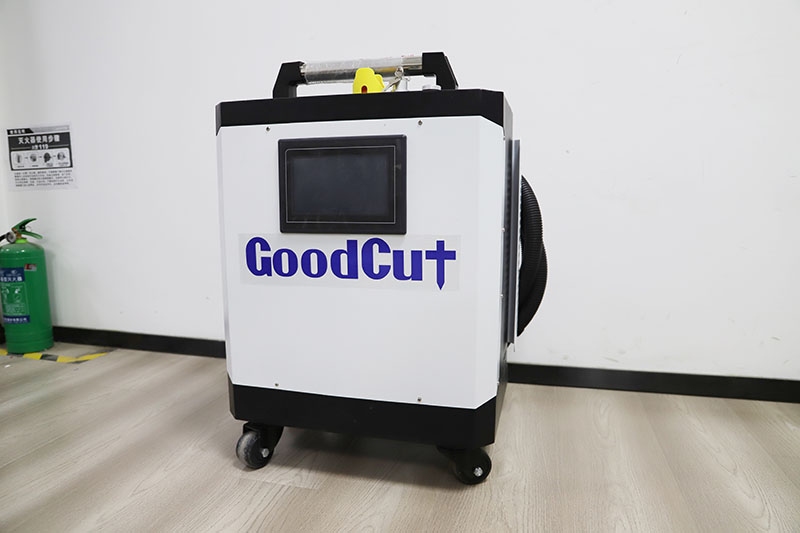

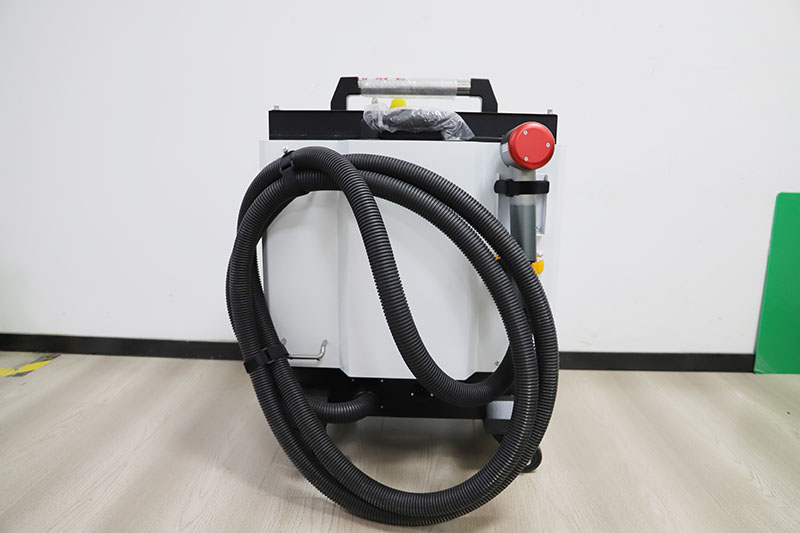

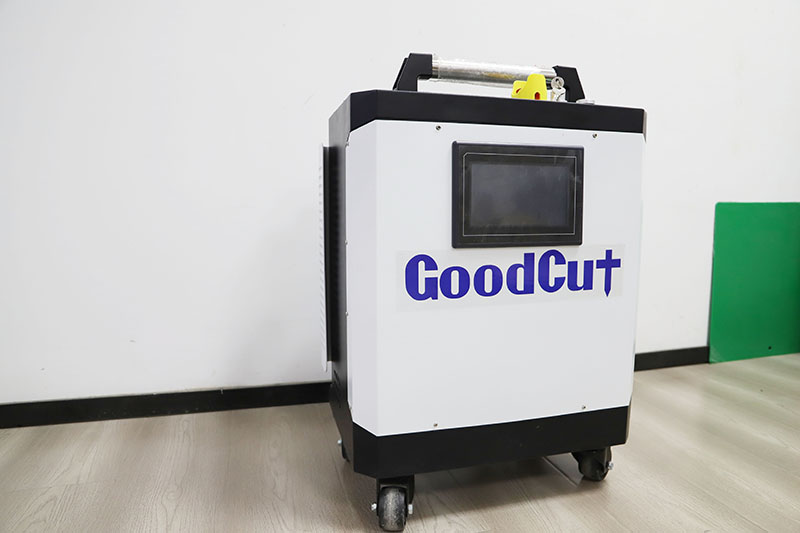

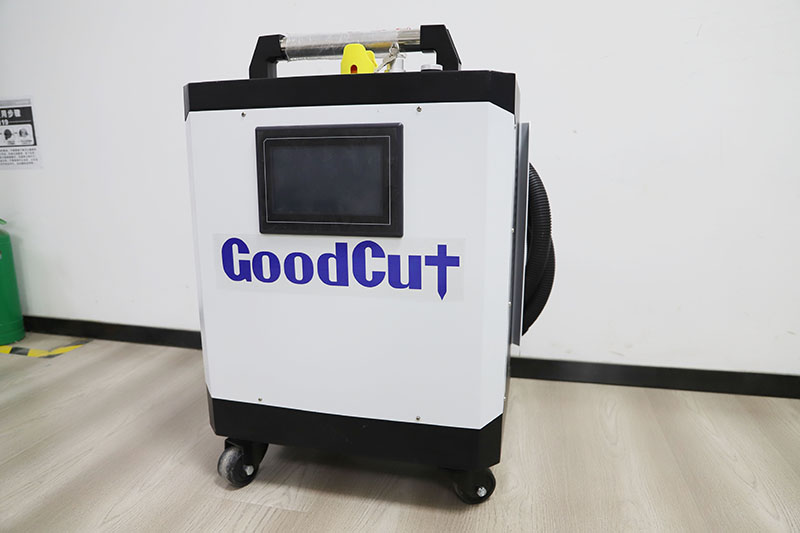

GC-CP500 Pulse Laser Cleaning Machine

Pulse Laser Cleaning Machine
Power 500W
MAX laser source
MAX Controller System
Product description: laser cleaning machine Pulse laser cleaning Clean up
INQUIRY EMAIL

Green and environmental protection

Laser cleaning machines offer high cleaning standards through fixed-point contact cleaning, effectively removing micron-sized pollution particles while also protecting brittle material surfaces. They are environmentally friendly and do not require any consumables. Moreover, they avoid any damage caused by chemical corrosion as they do not use chemical cleaning agents.

No damage to materials

Pulsed laser beam offer precise positioning and cleaning without damaging materials, making them ideal for sensitive surfaces such as aluminum, carbon, stainless steel, carbon fiber-reinforced polymers, or coated materials. They can clean even minor crevices and offer high flexibility in use.

Laser cleaning head

The laser cleaning head has a clever internal design that is completely sealed, preventing the optical part from being polluted by dust. It's also lightweight and ergonomically designed for a comfortable grip. The operation is simple and easy to learn with just one hand. The protective lens adopts a convenient drawer structure for easy replacement.

Special pulse laser source

laser cleaner offers pulsed laser power ranging from 100w to 1000w. At 100W power, the light is Gaussian, while at 200W power, both Gaussian and flat-top light are optional. When the power is above 300W, the light is flat-top. Gaussian light provides relatively concentrated energy for deeper cleaning, while flat-top light distributes energy evenly, resulting in a relatively smooth surface after cleaning.

Laser cleaning system

Laser cleaning system features a touch screen control panel with eye-catching buttons that supports multiple languages. Various parameter graphics are pre-stored, and six cleaning patterns are available, including straight line, spiral, circle, rectangle, rectangle fill, and circle fill. Additionally, 12 different modes can be quickly switched and selected, making it convenient for production and debugging purposes.

Smoke purifier

If a laser cleaning machine is equipped with a smoke purifier during the cleaning process, it can effectively remove most of the smoke and dust, thereby avoiding harm to the operator and the environment. Additionally, the dust can be filtered and collected through the machine's 4-stage filter dust collection system.

Specifications
Model	GC-CP100 Pulse Laser Cleaning Machine	GC-CP200 Pulse Laser Cleaning Machine	GC-CP300 Pulse Laser Cleaning Machine
Laser power	100w	200w	300w
Power adjustment range (%)	10~100	10~100	10~100
Maximum pulse energy	1.6mj	1.8mj	1.8mj
Pulse width	150-190ns	10-500ns	20-500ns
Laser source	JPT	JPT	JPT
Cleaning head	GuoYuan	GuoYuan	GuoYuan
System	GuoYuan	GuoYuan	GuoYuan
Clean head weight	＜0.75kg	＜0.9kg	＜1.25kg
Scan width	0mm-100mm adjustable	0mm-100mm adjustable	0mm-145mm adjustable
Scan line diameter	160mm	160mm	160mm
Delivery cable length	Factory 3 meters	Factory 5 meters	Factory 5 meters
Laser wave length	1070nm	1070nm	1070nm
Total power	＜500W	＜1000W	＜1200W
Package size	640410590mm	560640980mm	5706501030mm
Weight	28kg	85kg	85kg
Cooling system	Air cooling
Language	Chinese, traditional Chinese, English, Russian, Japanese, Spanish, German, Korean, French, etc.
Cleaning mode	Line mode, rectangular first mode, rectangular two mode,prototype mode, sine mode, dual spiral mode, free mode and ring
Ambient temperature range	10-40 Degrees
Ambient humidity	≤70%
Voltage	Single phase 220V ±10%, 50/60HZ AC
Application	Cleaning precision small parts, especially new energy batteries, weld oxide film, anode oxide layer, rust rust, metal plating, and hardware/glue on the hardware of metal plating.	Thinner paint (≤50um), optical device coating, aluminum alloy anodic oxidation layer, oil film, forging and casting oil cleaning.	Thinner paint( ≤100um),Oil pipeline rust optical device coating, aluminum alloy anodic oxidation layer, oil film, forging and casting oil cleaning.
