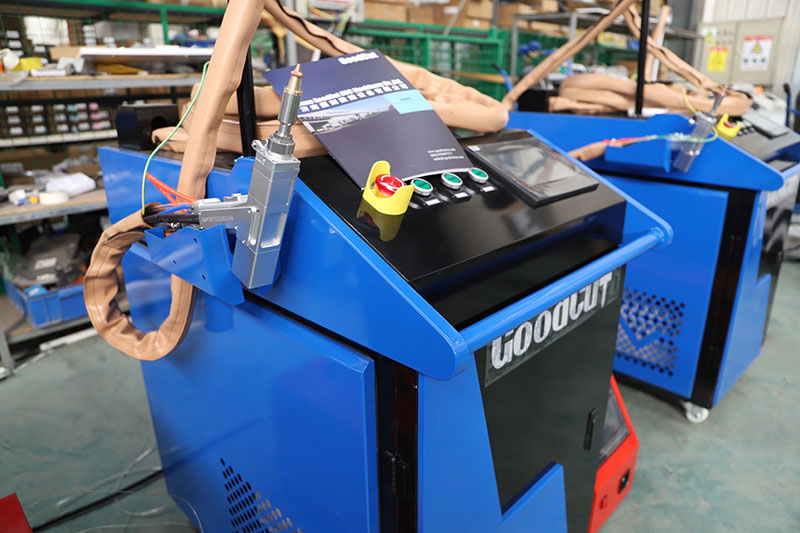

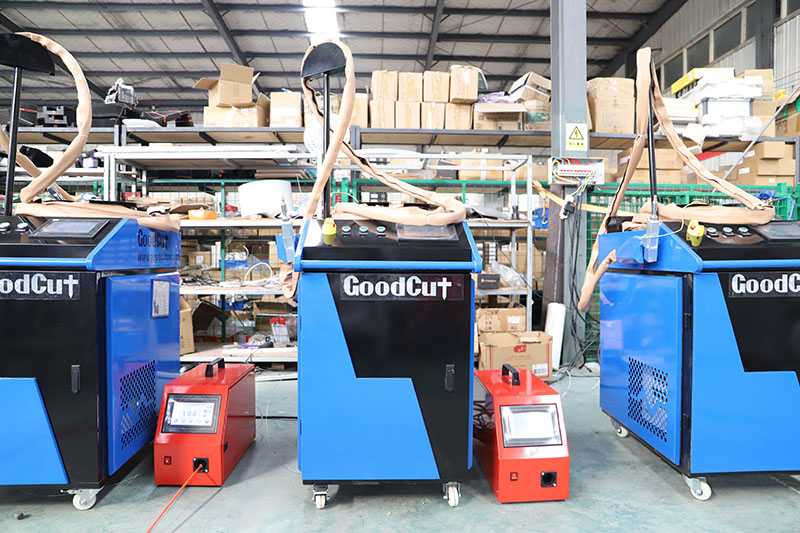

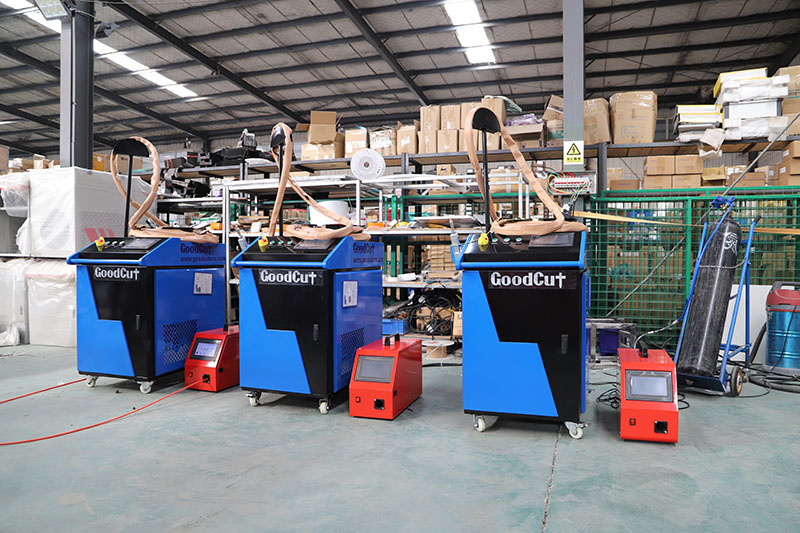

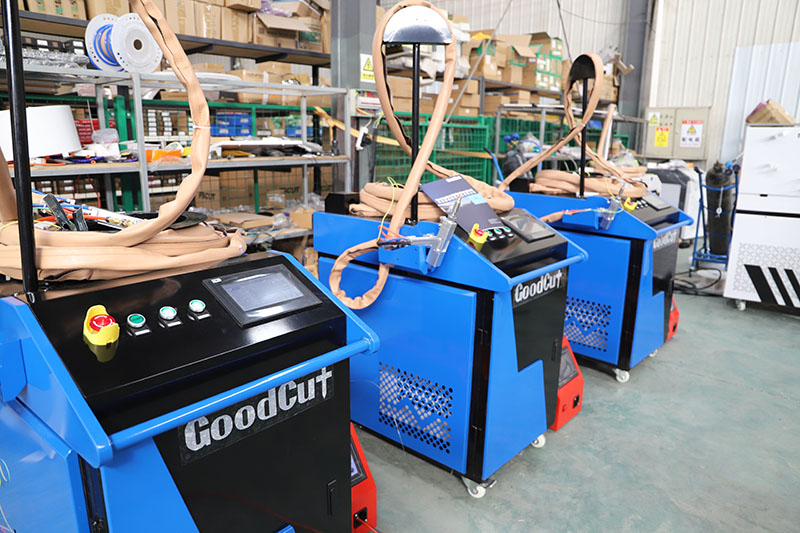

GC-WCC 4 in 1 Functions Laser Welding Cutting Cleaning Machine

GC-WCC 4 in 1 Functions Laser Welding Cutting Cleaning Machine

Welding cutting cleaning
Raycus / Max laser source
Auto feeder
New design
Product description: 1kw 1.5kw 2kw 3kw laser power Raycus / Max laser source Auto feeder device
INQUIRY EMAIL

Parameter:

Configuration of the machine
Model	GC-WCC
Fiber Laser source	1000W / 1500W / 2000W / 3000W
Brand of laser source	Raycus/MAX
Controller system	Chaoqiang Weiye
Welding / Cutting / Cleaning head	Chaoqiang Weiye
Wire feeder	Chaoqiang Weiye
Functions	Cutting, welding, cleaning, cleaning the welding path and gap
Laser wavelength	1064nm
Weling min molten pool	0.1mm
Welding depth	≤3mm
Spot size adjustable range	0.3-3.0mm
Workbench repeatability	±15kw
Viewing system	Red light positioning
Cooling	Water cooling
Operating Temperature	0-45℃
Operating humidity	5%-95%
Graphic Format Supported	BMP,GIF,JPEG,PCX,TGA,TIFF,PLT,CDR,DWG,DXF
Net Weight	200KG
Warranty	Two year
Voltage	AC220V±10%/50Hz/60A
Machine Size	1200700950mm

Feature:

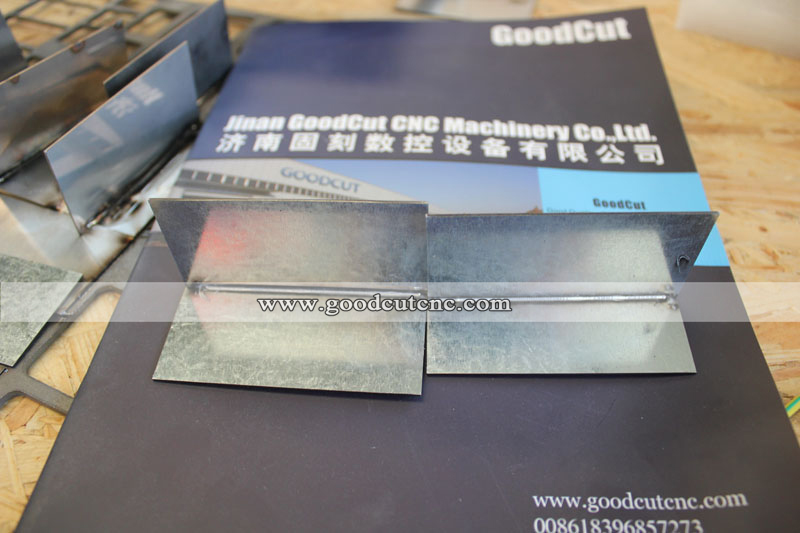

1. The weld seam is smoothe and beautiful, it doesnot need to be polished or the workboard of the polish is very small.

2. Through control the laser energy, the welding will not defrom or very few deformation.

3. Handheld laser welding machine is easy to handle and needn't to require the professional welders.

4. The wobble welding machine can handle the hard welding material easily, such as aluminum, brass.

5. Long life span up to 100,000 hours and low comsumption.

6. the Auto wire feeding handheld welding machine can weld parts with wider gap.

7. With a 8-15m fiber line, It can weld long-distance and large- area parts.

8. Various welding processes, such as spot welding, seam welding and overlap welding.

9. The welding efficiency is around 5 times of TIG welding.

10. It is welding used in electronics, sheet metal, air condiction industry etc.

Deatiled parts:

1. Automatic Wire feed
No consumables, small size, flexible processing, low operating and maintenance costs.

2. Water Chiller
High cooling rate, which can weld fine weld structure and good joint performance.

3. Laser Welding / Cutting / Cleaning Head

Smart high frequency swing welding head. Can be widely used in metal equipment, stainless steel home and other industries complex irregular welding process.

Also can do cutting and cleaning work, just change differnet head.

4. Laser Source
Chinese top brand fiber laser source Raycus, high power. The energy density is high, the heat input is low, the amount of thermal deformation is small.

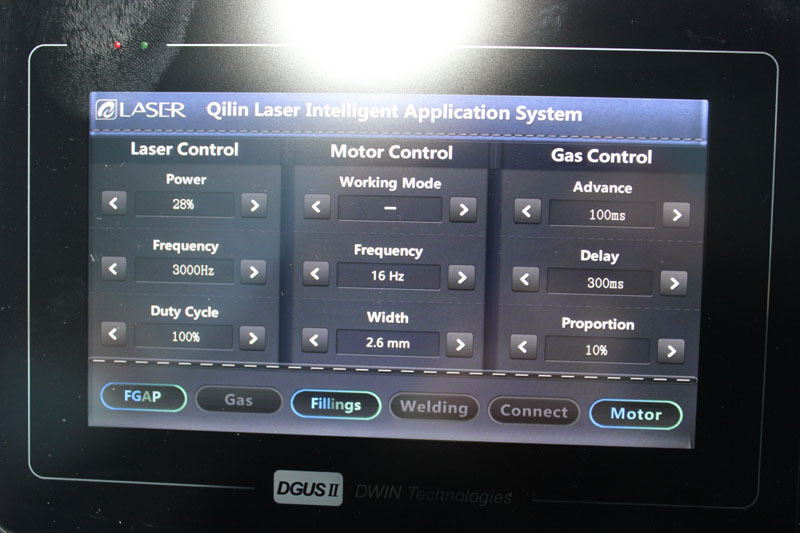

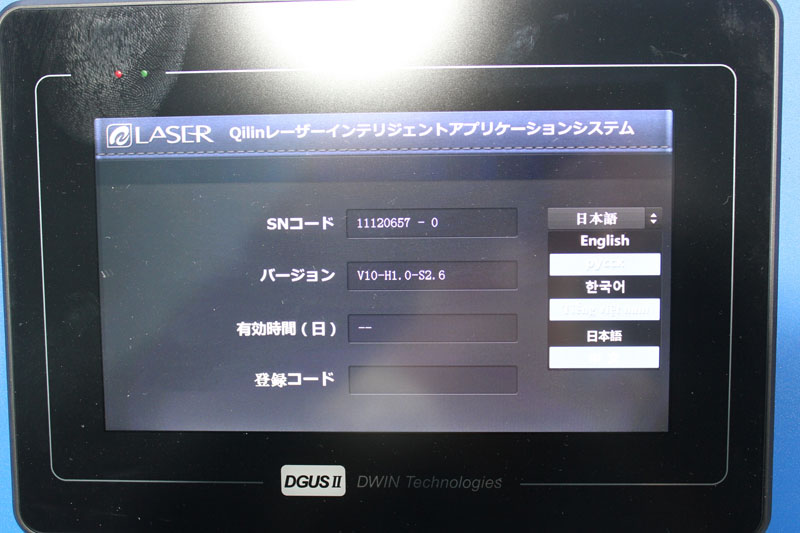

5. Control Panel

With auto layout optimization, ensure high speed operation of whole machine.

Application:

1. Material

Stainless steel, copper, aluminum, gold, chromium, silver, titanium, nickel and other metals or alloys, it can also be used for a variety of welding between different materials, such as: copper - brass, titanium - molybdenum, titanium - gold, nickel - copper and so on.

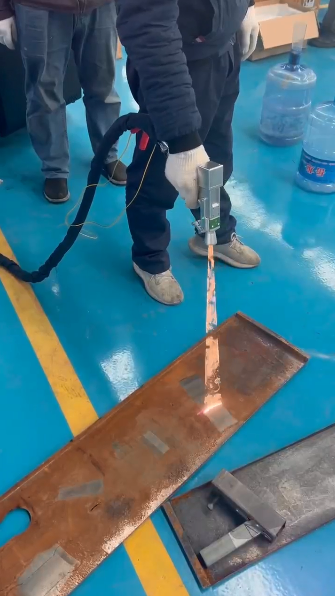

2. Welding，Cleaning，Cutting

Kitchen cabinets, staircase elevator, shelf, oven, stainless steel door, window guardrail, distribution box, medical equipment, communications equipment, craft gifts, household and other industries.
