Item |
Parameter |
|
X、Y、Z Axis positioning accuracy |
0.02mm |
|
X、Y、Z Axis repeat positioning accuracy |
0.01mm |
|
X、Y、Z working area |
1000*1300*2500mm |
|
X、Y、Z Transmission |
Screw transmission，Taiwan HIWIN, Linear guide |
|
Working area |
1300*2500mm |
|
Controller |
DSP controller |
|
Maximum feed height |
1000mm |
|
Spindle motor power |
5500W /380V |
|
Maximum spindle clamping tool |
3.175/4/6/8/10/12.7 /14/16mm |
|
Spindle cooling mode/spindle speed |
0-24000rpm/min |
|
Fast speed of space travel |
20m/min |
|
Driving system |
Servo motor and driver |
|
Operating voltage |
380V |
|
Machine frame |
High quality reinforced bridge steel, New design |
Configuration:
1. Structure: thickened bed without deformation, small shaking when working, fine engraving effect
2. Drive: Weishi servo, strong power, smooth transmission, small heat, good closed-loop control, can be used for a long time without stopping.
3. Control system: DSP control system, strong anti-interference ability, stability, can control more parameters.
4. Transmission: screw transmission, high efficiency, high precision
5. Guide rail: Taiwan square straight line 30 increase guide rail, high precision, good stability

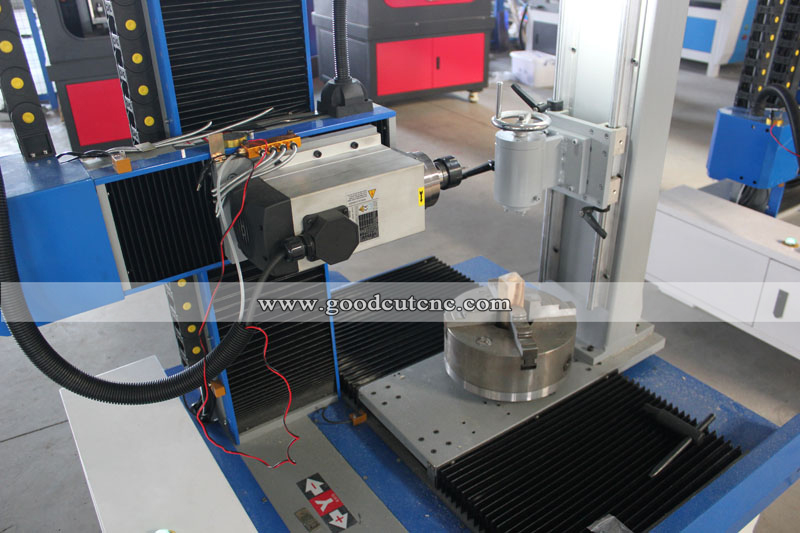

6. Main shaft: constant power frequency conversion cooling main shaft, low noise (seiko).
7. Oil filling: automatic oil filling system.
8. Transmission: High precision flange 80/ reducer, wear-resistant, strong strength, long-term use is not easy to wear
High speed, high precision and good stability.

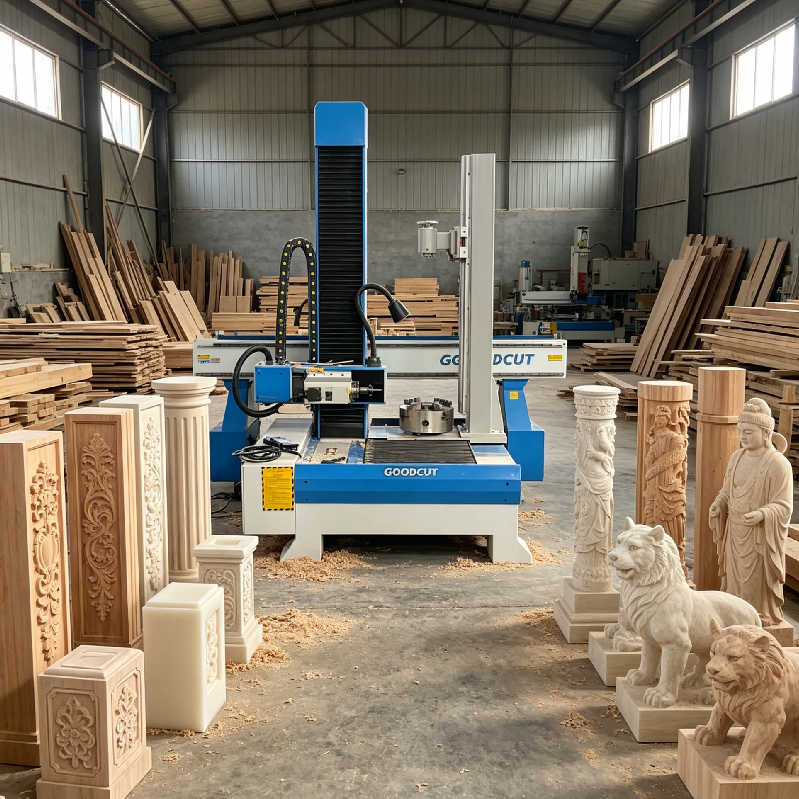

Applicable scope: stone, jade, metal, wood, etc
