GC1325L-M Wood Cutting Machine Cnc Metal And Nonmetal Co2 Laser

GC1325L-M Wood Cutting Machine Cnc Metal And Nonmetal Co2 Laser

130W/180W/ 260W Optional Laser tube power
Leadshine stepper motor

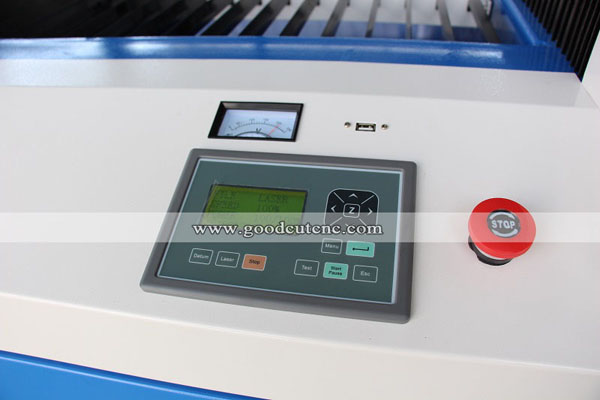

RuiDa control system
US II-VI lens
Product description: Working area: 1300*2500mm, Laser tube power: 130W/180W/ 260W Optional, Transmission: Taiwan TBI ball screw, Adopt Thicken machine bed, heavy loading
INQUIRY EMAIL

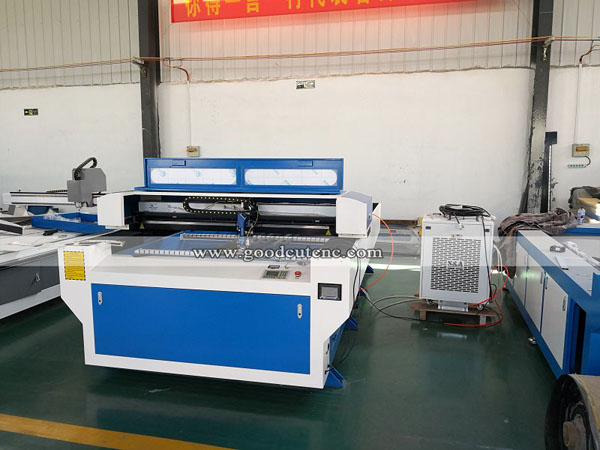

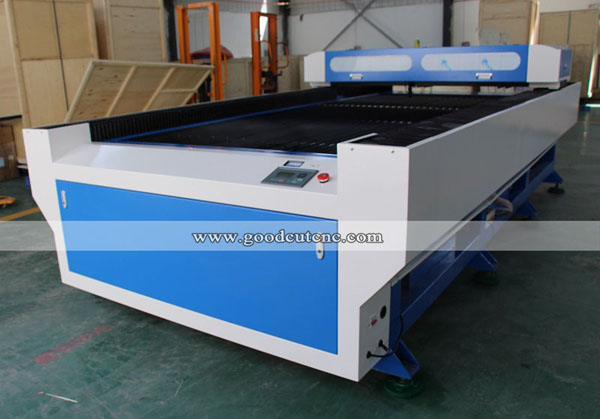

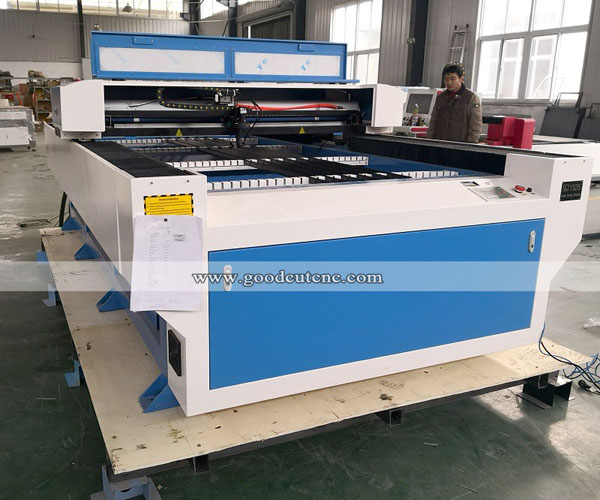

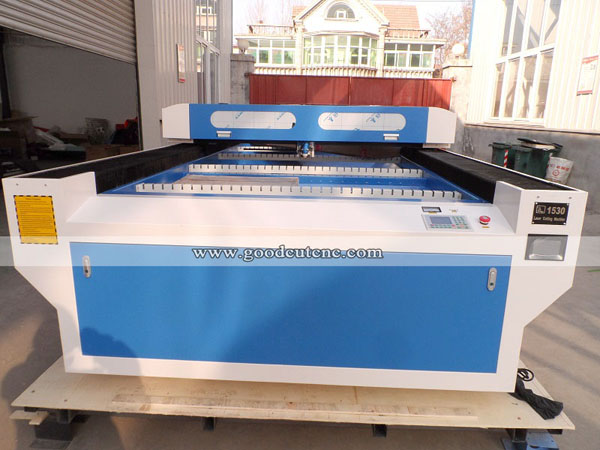

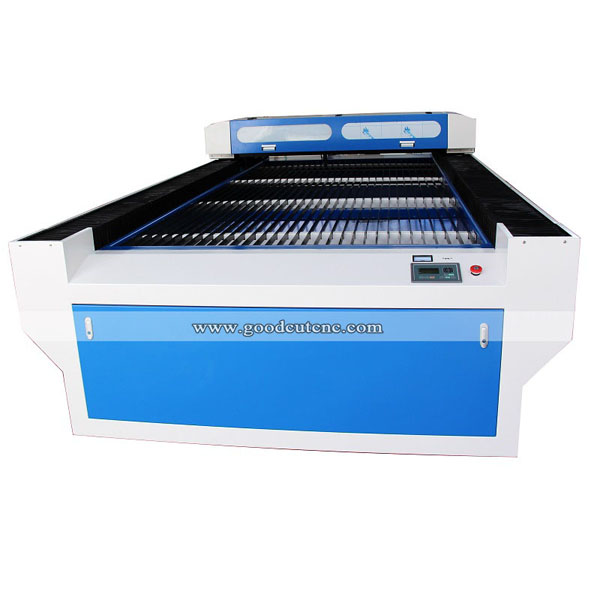

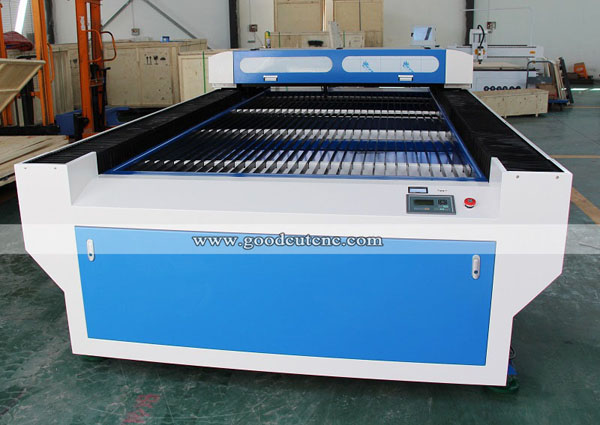

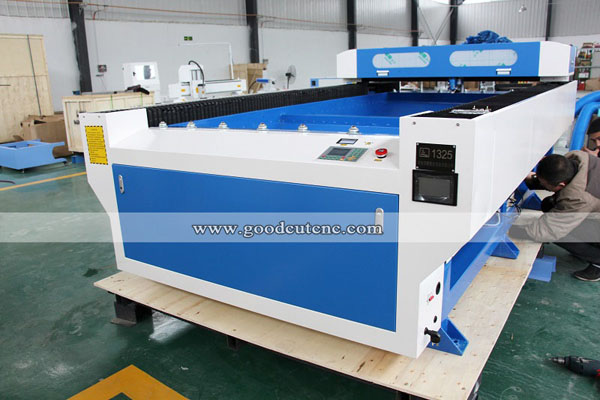

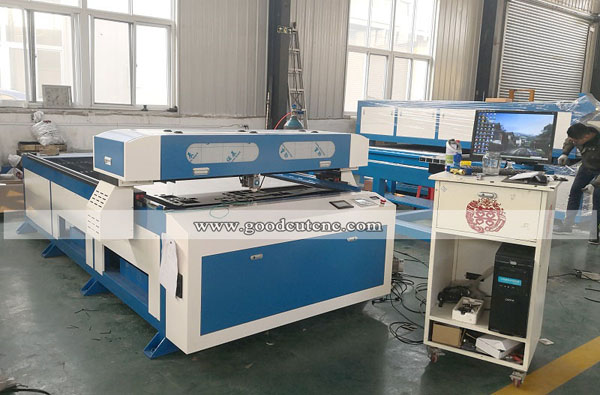

GC1325L-M Wood Cutting Machine Cnc Metal And Nonmetal Co2 Laser

Main features

1.Outstanding cutting cross section, high precision, good stability, satisfying the process demands of precision parts. Dynamic performance is stable, able to work for long time.

2.Capable of cutting both non-metal and metal, able to cut stainless steel, carbon steel, acrylic and wood, etc.

3.Laser cutting head with auto focusing system. Laser cutting head automatically adjust its height along the metal sheet surface, ensuring the focal length keeps the same all the time. Smooth cutting edge, no need polishing or other further handling. Flat and wavy steel sheets can be cut with this machine.

Parameters :

Technical Parameters
Model	GC1325L-M
Laser type	Co2 laser
Laser power	130 / 180 / 300 / (optional)
Working area	1300x2500mm (others could be customized)
Max cutting thickness	Depends on laser power and material.
Laser optical component	II-VI lens and mirror (USA)
Laser tube	RECI or EFR glass tube
Drive	Leadshine stepper motor
Transmission	Hiwin Linear guide rail and belts transmission
Auto focus	Yes (cutting metallic materials)
Fixed laser beam optical path	Yes (5 laser mirrors and 1 lens)
Cooling way for lens & mirror	Air cooling or water cooling (optional)
Camera orientating system	Optional (this function can work in with UV printing machine, working video: https://youtu.be/zcZorfFwTPc)
Resolution ratio	0.025 mm
Min shaping character	Chinese 2mm / English Letter 1mm
Re-positioning accuracy	+/- 0.01mm
Graphic format supported	DXF DWD JPEG PCX AI TIFF PLT CDR BMP GIF
Gross power	<2500w, 220v, 50/60hz
Gross weight	900 KG
Machine dimension	316021001100mm
Package size	371022601290mm

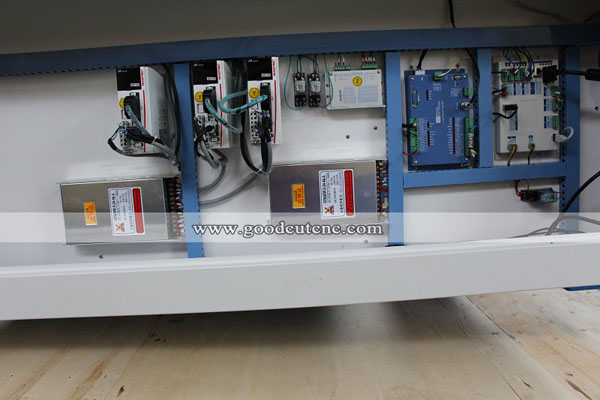

Parts images

Original: China
Input format: AI ,CDR BMP,JPG,DST,PLT,DXF,DWG,TIFF,PSD
Supported software: CoreDraw, photoshop, Autocad, etc.

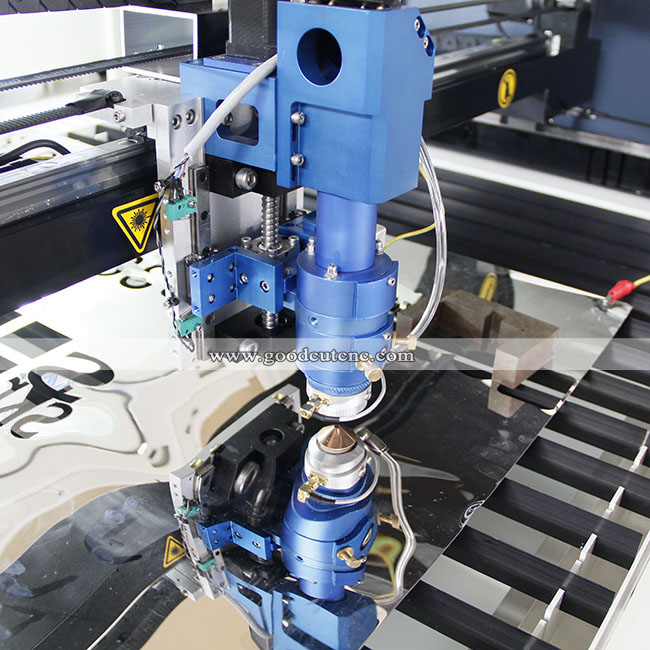

Metal laser Cutting Head

Yankong hybrid servo motor

Applicable Materials

Stainless steel, carbon steel, galvanized steel, acrylic, plywood, MDF and other materials

Application Industries

Advertising industry (stainless steel and acrylic), sheet metal industry (carbon steel), packaging industry (plywood), arts and crafts, awards and trophies, paper-cutting, architectural models, lights and lamps, electronic appliances, photo frame and album, garment leather and other industries.
