GC1330F Hotwire 1330 3D cnc Hot Wire Foam Cutting Machine for EPS

GC1330F Hotwire 1330 3D cnc Hot Wire Foam Cutting Machine for EPS

Model: GC1330F
Dimension(L*W*H): 1300*3000mm
Cut direction: Horizontal, Vertical and cross cutting
Sample: Eps Foam Block
Product description: hot wire 3D cutter cutting 2D 3D foam EPS
INQUIRY EMAIL

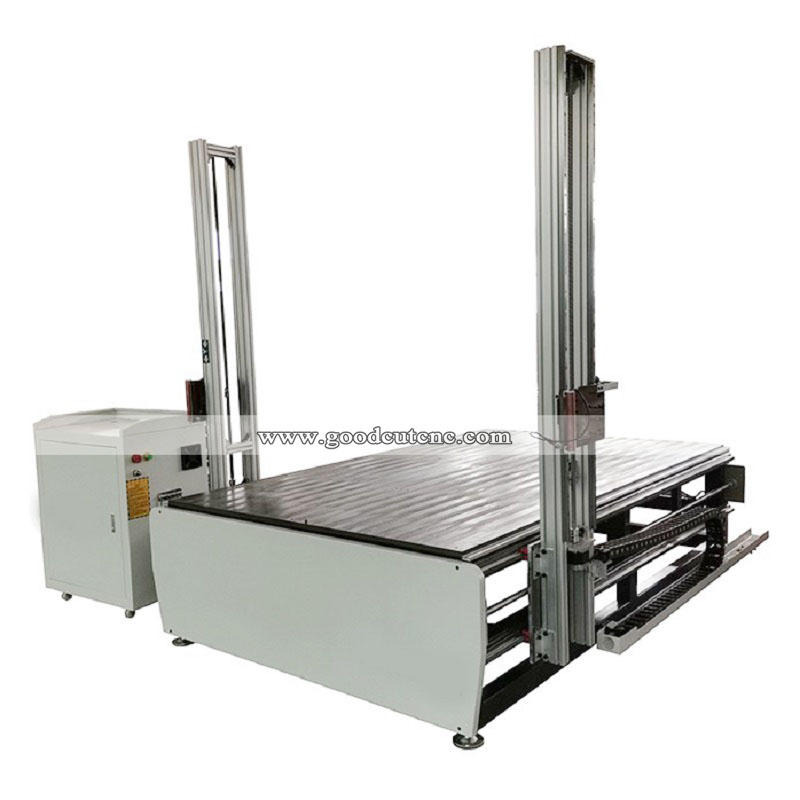

GC1330F Hotwire 1330 3d cnc Hot Wire Foam Cutting Machine for EPS

1. CNC cutting machine is controlled by the computer system, and we can design and make the different kind of cutting machine according to the different products requirements, it can save a lot of the cost such as replace the mould and save a lot of time. It used for a lot of yields especially on the packing industry.
2. GoodCut hot wire 3D cuter is a special cutting machine which for complex shape product of EPS. This kind of cutter has one or several cutting lines for different production request.

GC1330 hotwire foam cutter Description & Specifications:
X Working Area	1300mm
Y Working Area	3000mm
Z Working Area	1300mm
Traveling Positioning Accuracy	±3mm
Repositioning Positioning Accuracy	±2mm
Working dpi	±0.04mm
Rotating Speed	0-6000mm/min
Machine Structure	Thick welded steel
Command	G-code.u00.mmg*.plt
Working voltage	AC220V/20HZ
Weight with package	850kgs
Package size	1.6(width)3.8(length)1.5(width)m
Control System	dsp
Guide Rail	Round guide

Features:

1.Whole steel structure,durable model. dual motor drive, high speed.

2.Professional design software,easy to drawing.

3.DSP or NC studio controller for option.

4.Imported wires(0.3mm diameter) to guarantee the better running.

Hot wire foam cutting machine is controlled by computer,the drawing and cutting software support English and Chinese,easy to operate:the users make drawing in software,then convert into cutting code,the machine will run automatically. Mainly used for: complex 3d design tool symbols, letters, text graphics architectural appearance, architectural decoration components, architectural models, exhibition booths and so on.
