GC1530-6R 4 axis 6 Spindle 6 Rotary Axis Cnc Router Machine For Wood Board and Legs

Model: GC1530-6R
Spindle: 3.2kw 4.5kw 5.5kw, 6kw HQD/HSD water/air cooled spindle
Motor and Driver: Leadshine/ Taiwan Delta/ Japan Yaskawa
Control system: DSP/ NC studio/ Mach3
Product description: 4 axis multifunction flat carving and cylinder engraving 2.2kw water cooling spindle*6psc. 6pcs rotary: the diameter can be customized. The quantity spindle can be customized.
INQUIRY EMAIL

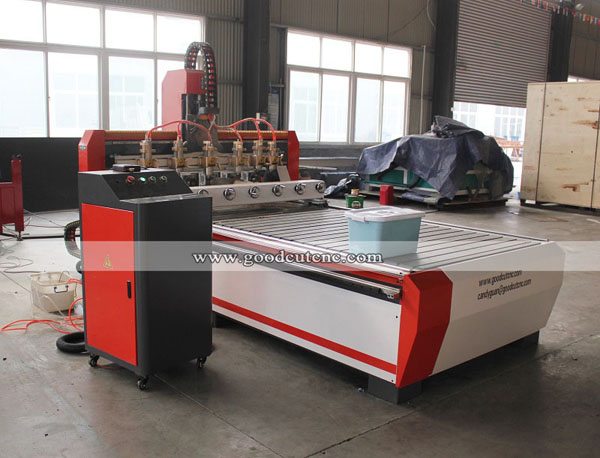

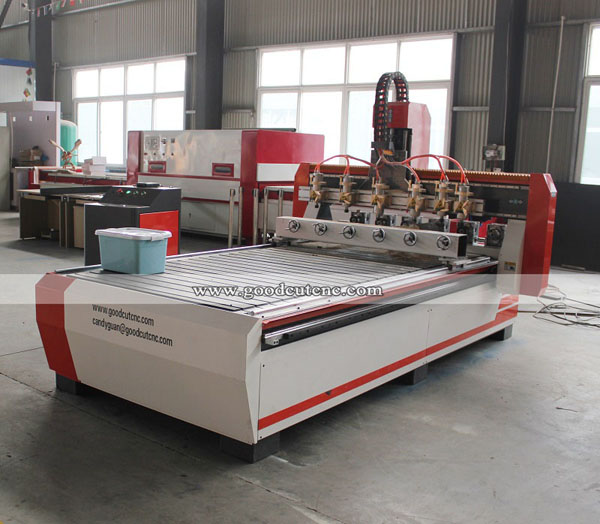

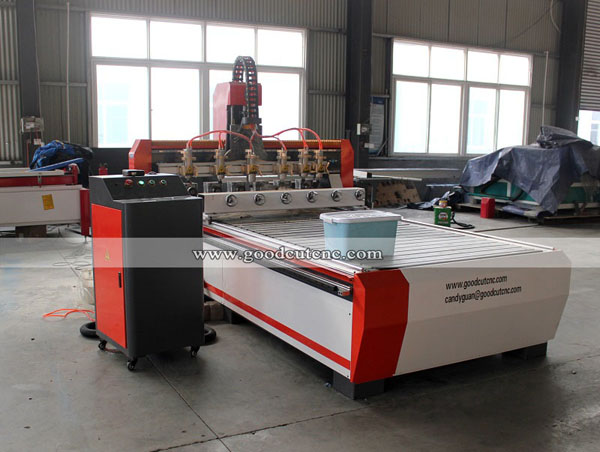

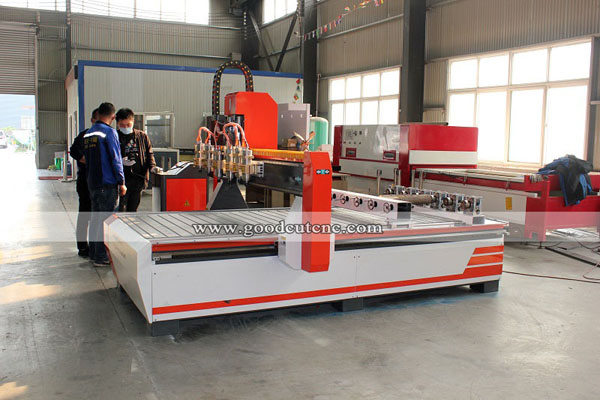

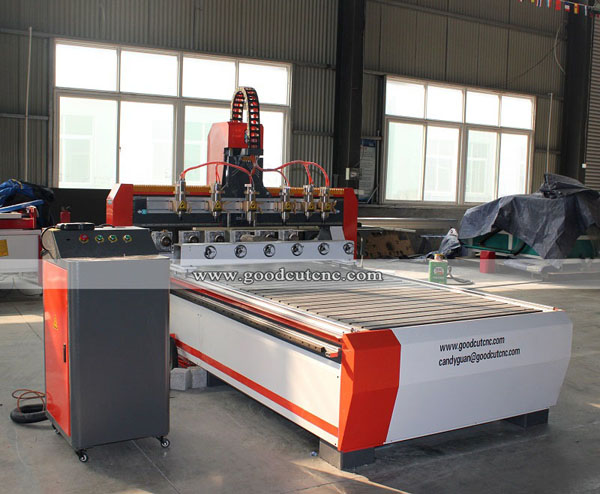

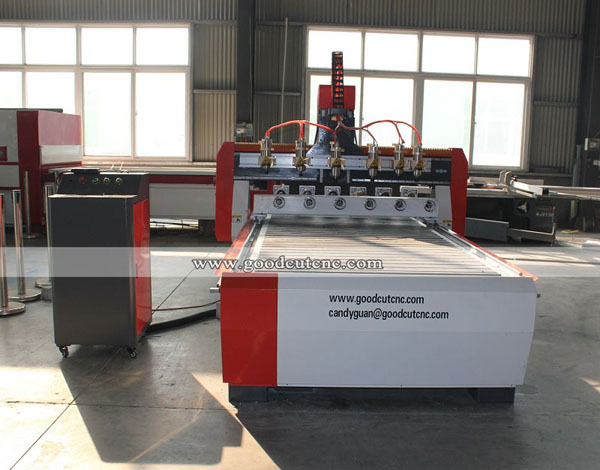

4 axis 6 Spindle 6 Rotary Axis Cnc Router Machine For Wood Board and Legs

Working area: 1500*3000*300mm

1. Working length: 1200mm, Max diameter 200mm

2. Industrial Heavy Duty Cast steel Structure.

Solid gantry, well structure of lathe bed, guarantee the machine stability, stable and high speed, high accuracy.

3. High Efficient German Rack gear transmission; X,Y axis Rack and pinion, Z axis German Ball Screw

4. Taiwan Hiwin square guide rail

5. Leadshine hybrid servo motor and driver, guarantee working precision, have no loose step situation

6. Fuling Inverter

7. 6*2.2kw water cooling spindle, can work at the same time , so higher efficiency

8. Table moving making the machine can work on both flat and rotary shapes

9. RichAuto 4th Axis DSP handheld Controlling System with USB interface

10. Software:

Along the cnc drouter machine with carved software,advanced file pretreatment function can correct the error in the files and is compatible with the process codes of multiple national and international software.(such as Powermill, UCANCAM, Type3, Artcam,).

Descriptions	Parameters
Model	GC1530-6R
Working area	15003000300mm
Control system	DSP control system
Spindle	2.2kw*6 water cooling spindle
Spindle speed	0-24000RPM
Inverter	Fuling inverter
Motor and driver	hybrid servo motor and driver
Voltage	380V, 3ph, 50Hz
Linear rail	Taiwan HIWIN linear guide for all axis
Table structure	New type thicker and bigger heavy duty welded frame and gantry
Table surface	T-slot work table
X,Y axis transmission	Helical rack and pinion drive for X,Y axis
Z axis transmission	Taiwan TBI ball screw for z axis
lubrication system	Manual lubrication system
Rotary device	Rotary device with 200mm diameter
Surroundings	Temperature: 0-45℃; humidity:30%-75%
Weight	1850KG
Packing Size	3250mm2000mm1700mm

1. 6 spindles work in same time, greatly saved time to change tool manually, high efficiency

2. Removable t-slot table, process 2d sculpture with table, 8 spindles and rotary axis work together to mill and engrave cylinde 3d 4d wood moulder/statue etc artworks after removing table, multi function

3. Economic cost, standard popular configuration, worthy to buy, very suitable for furniture and woodworking, artwork industry

High quality Fuling inverter

DSP control system, not need to connect computer, it is easy to operate.

Leadshine hybrid servo motor and driver, very famous brand in China, has high quality.

Application:

Besides working on flat materials, the machine is widely used in carving cubic and column work piece such as wooden table legs, the human body, figure of Buddha, the goddess of mercy, sculpture, handicrafts, stair handrail, cylinder Musical Instruments.
