GC1325S Hot Sale 3d Cnc Router Engraving Machine For Granite Stones

Leadshine 450B motor
Spray water cooling system
HQD 5.5kw water cooled spindle
DSP control system
Product description: Spindle: HQD 5.5kw water cooled spindle and cooled system Inverter: Fuling inverter, famous brand Motor and driver: Leadshine 450B motor and MA860H driver Transmission: Taiwan HIWIN 20mm square ra
INQUIRY EMAIL

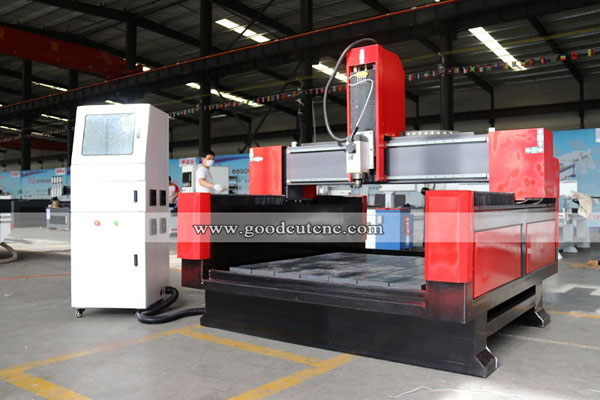

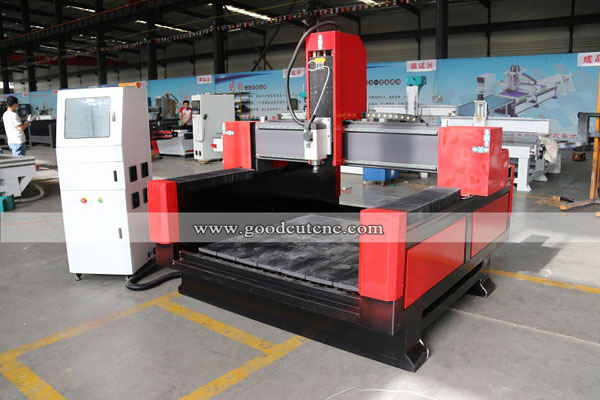

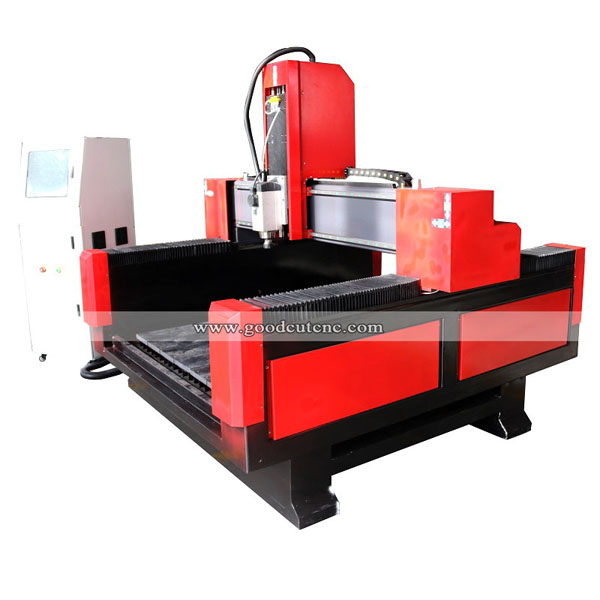

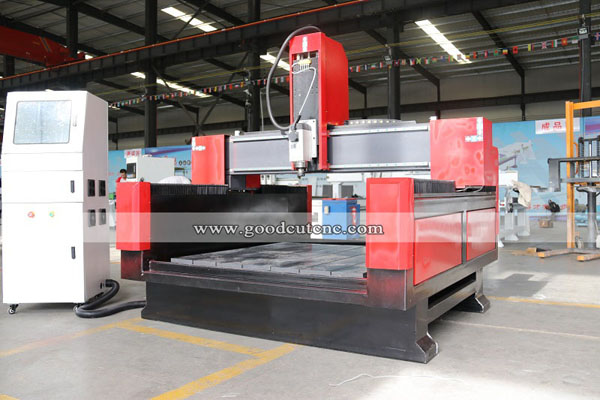

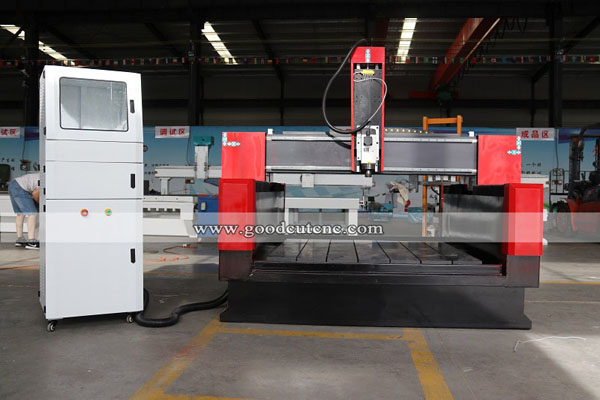

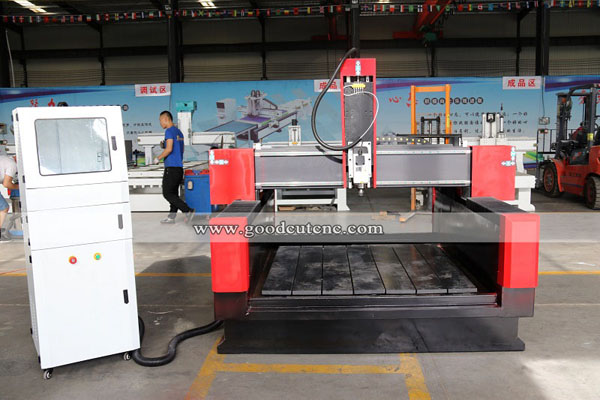

GC1325S Hot Sale 3d Cnc Router Engraving Machine For Granite Stones

Features of Hot Sale 3d Cnc Router Engraving Machine For Granite Stones:

1. Working area:1300*2500/1500*1500mm

2. 5.5kw water cooling spindle

3. Mach3 control system with USB port

4. XY axis gear transmission, Z axis Taiwan TBI ball screw transmission

5. T-slot table with water tank

6. Assistant wheels for loading

7. Heavy duty steel structure frame

8. Taiwan TBI ballscrew transmission

9. Leadshine M860 driver

10. Manual oil lubrication

11.Taiwan HIWIN 25mm square rails guides

12. Fuling inverter

13. Tool box

Optional:

1 Rotary device model professional for cylinder stone colomn
2. Oil spray cooling system for metal

3. Dual-heads or more heads
4. Servo motors (Taiwan brand or Japanese brand)
5. Other custom features

Parameters of Hot Sale 3d Cnc Router Engraving Machine For Granite Stones:

1	Working area	13002500/15001500mm
2	Spindle	5.5KW water cooling spindle
3	Spindle speed	0-24000rpm/min
4	Guide rail	Taiwan HIWIN 20mm square rail
5	Driving method	X,Y axis by helical gear rack,Z axis by TBI ball screw
6	Motors and drivers	Stepper motor450B,Leadshine drivers MA860H
7	Control system	DSP controller
8	Inverter	Fuling inverter
9	Max.idling speed	25m/min
10	Max.working speed	12m/min
11	Machine structure	8mm thickness welded steel tube, cast iron vertical shafts and steel gantry
12	Working voltage	220-380V/50HZ
13	Control cabinet	Independent
14	Rotary device	yes, can be option

Parts images

HQD or Italy HSD spindle, water cooling spindle

Professional big power 5.5kw water cooling spindle, with constant power, has better performance and longer lifespan than normal spindle

Dust-proof and waterproof design protects the transmission components.

All surroundings of stone cnc router is with stainless steel cover to avoid machine be dusted after long time operation, also All axis use dust proof cover to protect guide rail from water

Transmission: Taiwan HIWIN 20mm square rail and helical rack

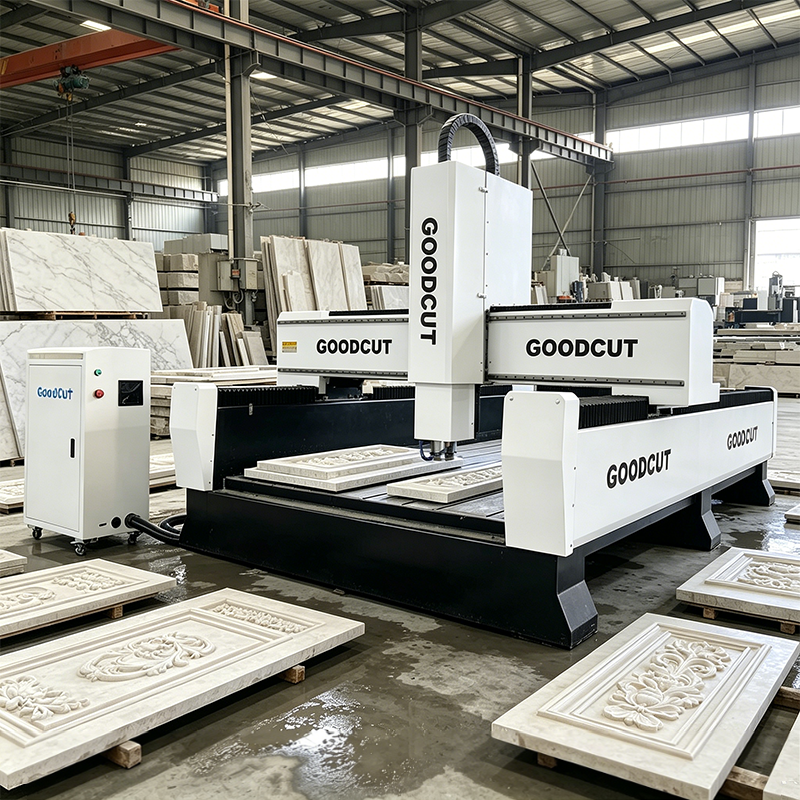

Applications of Hot Sale 3d Cnc Router Engraving Machine For Granite Stones

Application Industry: Stone processing engraving, milling, Cutting, mold manufacturing cutting, wood processing cutting, art and craft manufacturing, light box cutting, building mold cutting, indoor decoration cutting, wave board processing cutting, light equipment molding processing cutting, sign and mark manufacturing cutting, acryl board and MDF processing cutting, stamp cutting.
