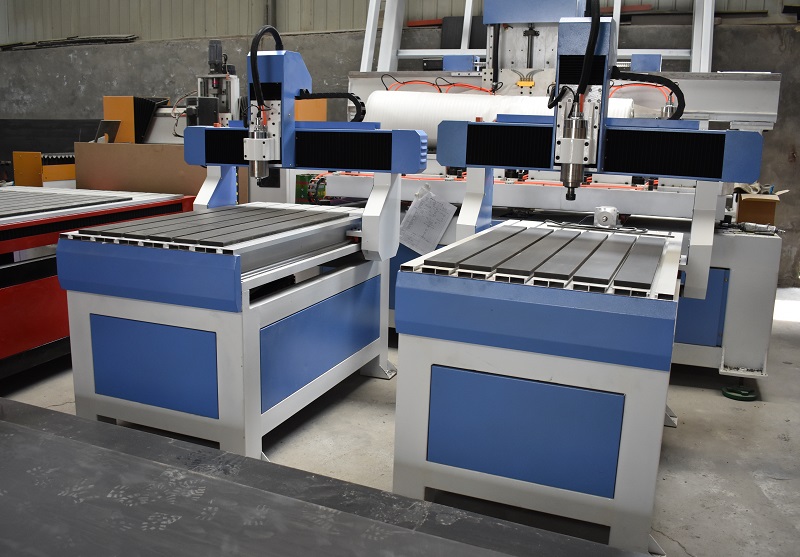

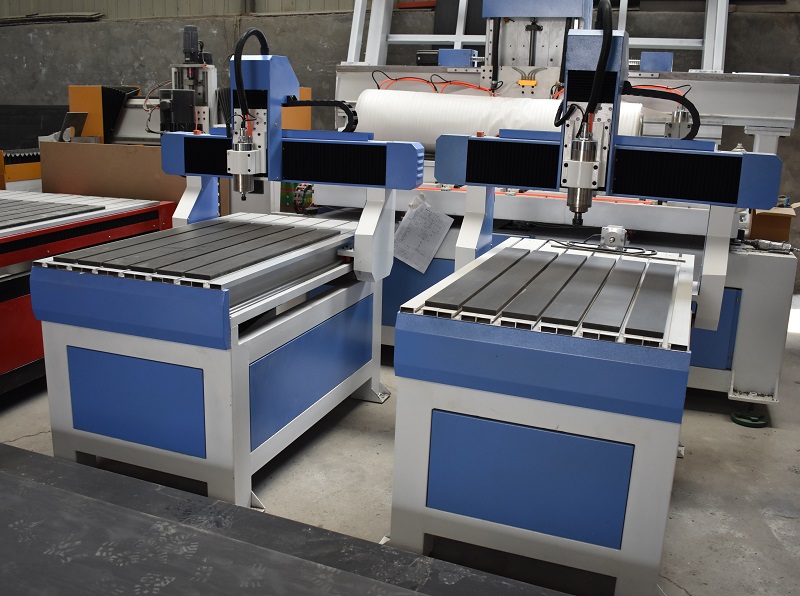

GC6090 GC6040 Small Size CNC Router Machine

Working size 600*900mm
Mini size
Leadshine stepper motor and driver
Optional: Rotary device
Product description: 600*900mm working size 600*400mm working size Leashine stepper motor Hobby home woodworking
INQUIRY EMAIL

GC6090 GC6040 Small Size CNC Router Machine

Parameter:

Description	Parameters
Model	GC6040	GC6060	GC6090
Working area	600x400mm	600×600mm	600×900mm
Working precision	0.05mm/300mm
Feeding height	150/300 mm
Spindle power	HQD 1.5/2.2KW water cooling spindle, others can be optional.
Spindle Speed	0-18000
Rail type	Taiwan linear guide rails
Control system	DSP /NC Studio controller etc
Motor and driver	Leadshine stepper motor and driver
Inverter	Best/Fuling inverter
Transmit	Ball screw
Table type	Aluminum table T slot with PVC
Max travel speed	12000mm/min
Power	AC220V±10%/50~60Hz
Compatible Software	Type3/Artcam/UG/Pro-E/Mastercam/UcancamV8 etc
Command code	HPGL, G code

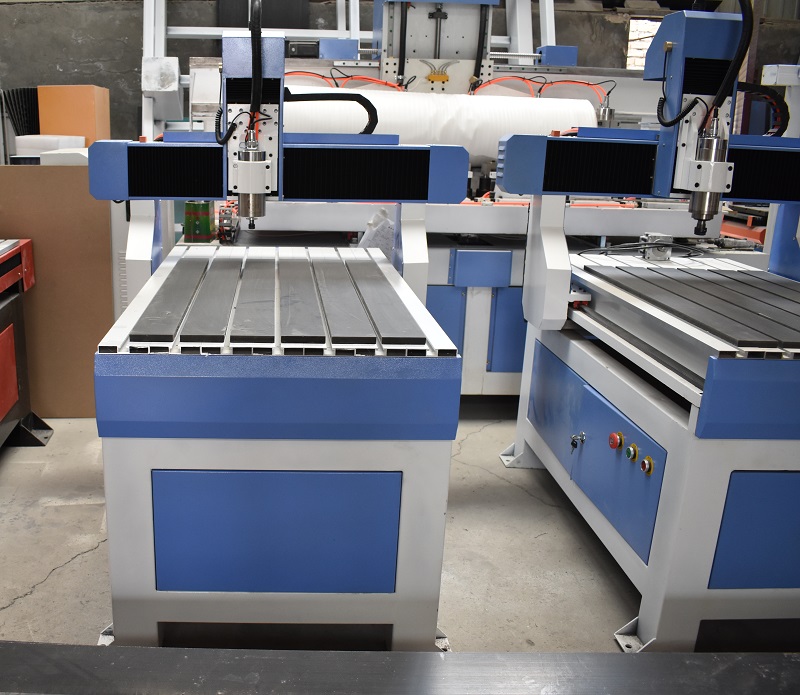

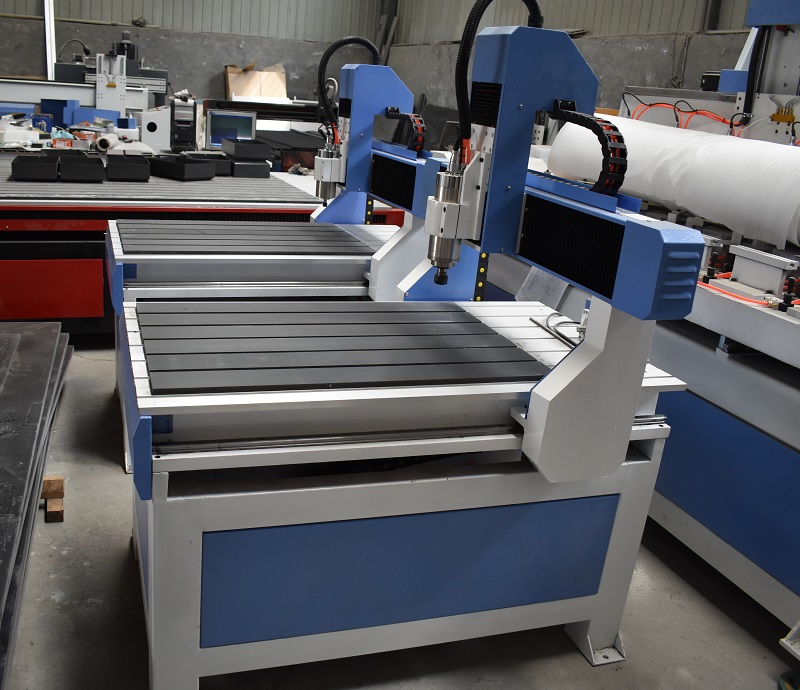

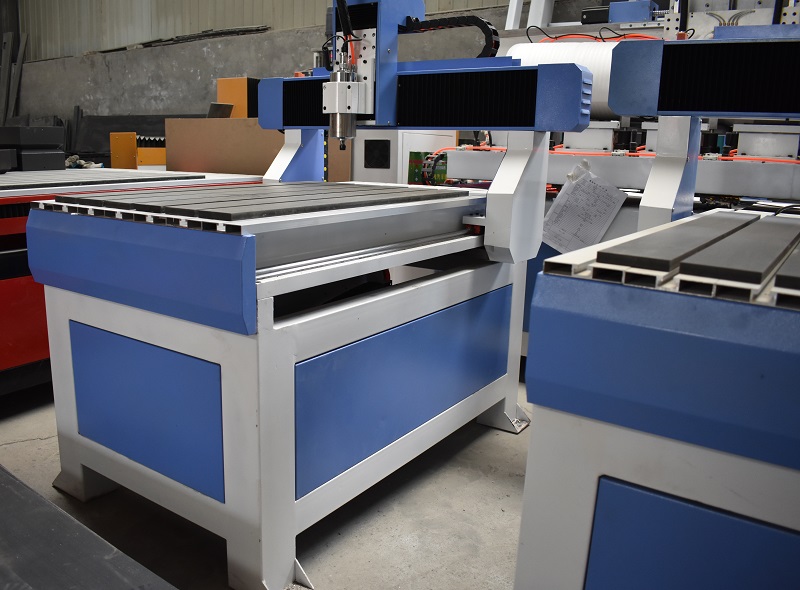

Machine details:

Feature:

1. Thicker & Stronger Cast iron frame body Much stronger than other Aluminum frame, make the Machine more stable & much better bearing capacity.

2. 1.5KW / 2.2KW China best Air or Water cooling spindle China top quality Changsheng brand, More durable & much lower nose & longer life-time.

3. Taiwan HIWIN Linear Guide for Y-axis Top brand Taiwan imported with global service. 10 times longer life-time than round rail or the common brand linear rail. More stable, lower noise, harder to distort.

4. Taiwan TBI ball screw High precision top brand Taiwan imported TBI Ball Screw.

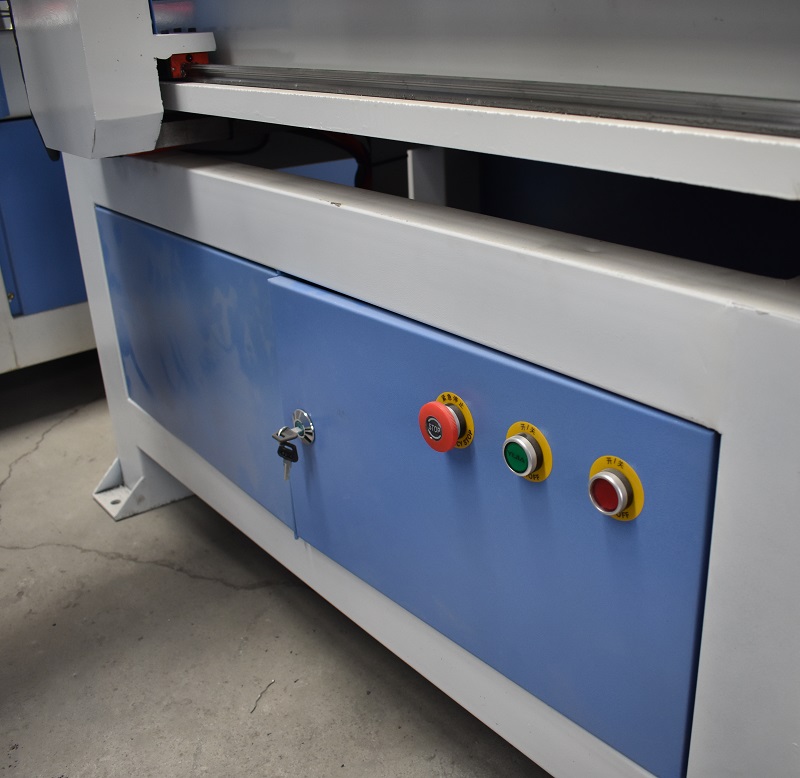

5. Separated control box It has 2 separate parts which can prevent electrostatic interference. Wires, high soft shielding twisted-pair cable, fire-resistant and with low failure rate, could be bent min 30,000,000 times.

6. Top brand electric part: Japanese Omron limit switch

7. Tool calibration sensor(Tool auto-checking instrument) A. More easier to find the working original home, avoid the manual error, save time. B. Ensure accuracy.

8. Tool Box (free Accessories) Including ArtCAM/Type3 Software CD, Water pump, Clamps, Tool holder, Collet, Collet nut, Wrench, Port cable, Power cable, 18 pieces CNC Tool Bits.

9. Offline operated DSP control system / Computer controller Economical NCstudio controller DSP handle controller with USB port, no need to connect into the computer when operate machine, support offline operation, very popular & easily- operated.

Application:

1.The Advertising nidustry: CNC router can engrave all kinds of signage, trademark, nameplates, badge, decorative gift, embossed medal, certificate, souvenir, photo frame, furniture decoration.

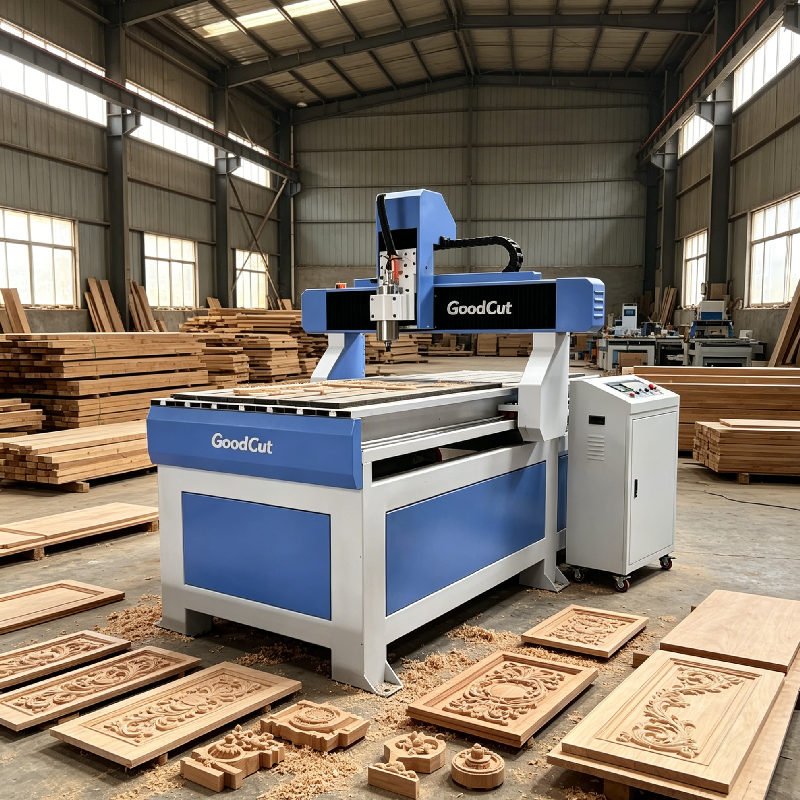

2.Small-scale woodworking industry: CNC router can be used for solid wood furniture, mahogany furniture, MDF paint door, solid wood door, composite door, cupboard door and window, bedside cabinet, folding screen etc.

3.Artwork industry CNC router can process wooden carft, mural art of wood, artwood, embossed, jeweery, cometics package, musical instrument.

4.Soft metal processing: CNC router can engrave electronic component, integrated circuit, electronic plastic case, electronic pproduct model, circuit board, electronic Light bix, computer and mobile phone keyboard, engraving a variety of electronic products.
