Fiber Laser Cutting Machine

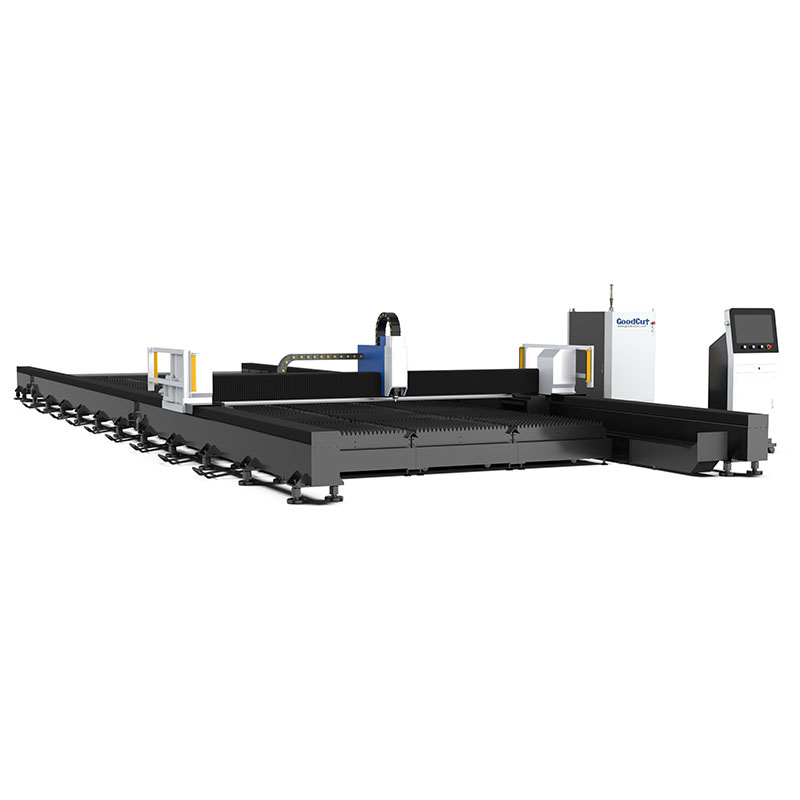

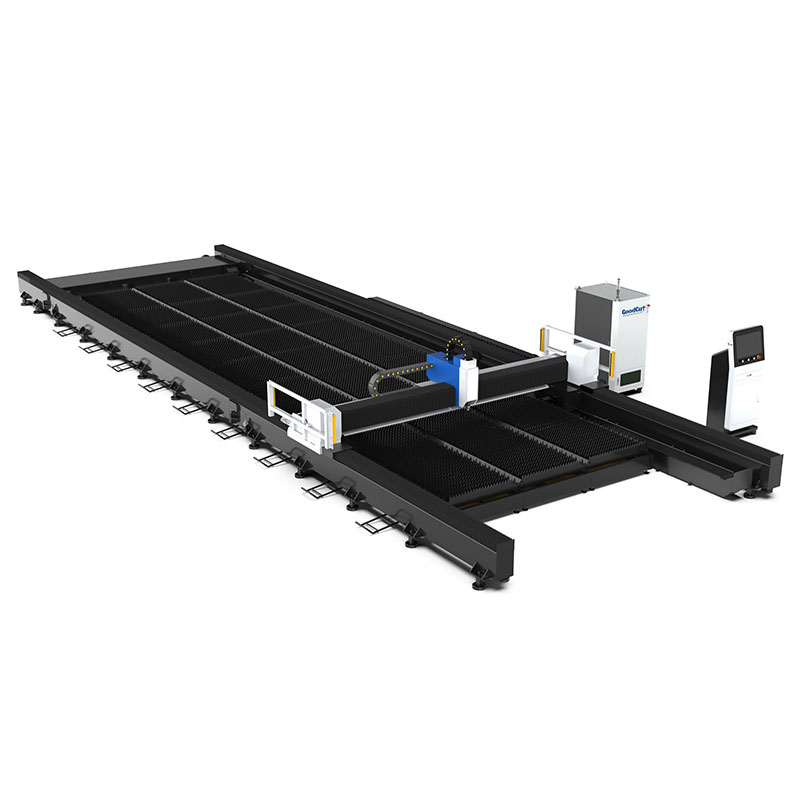

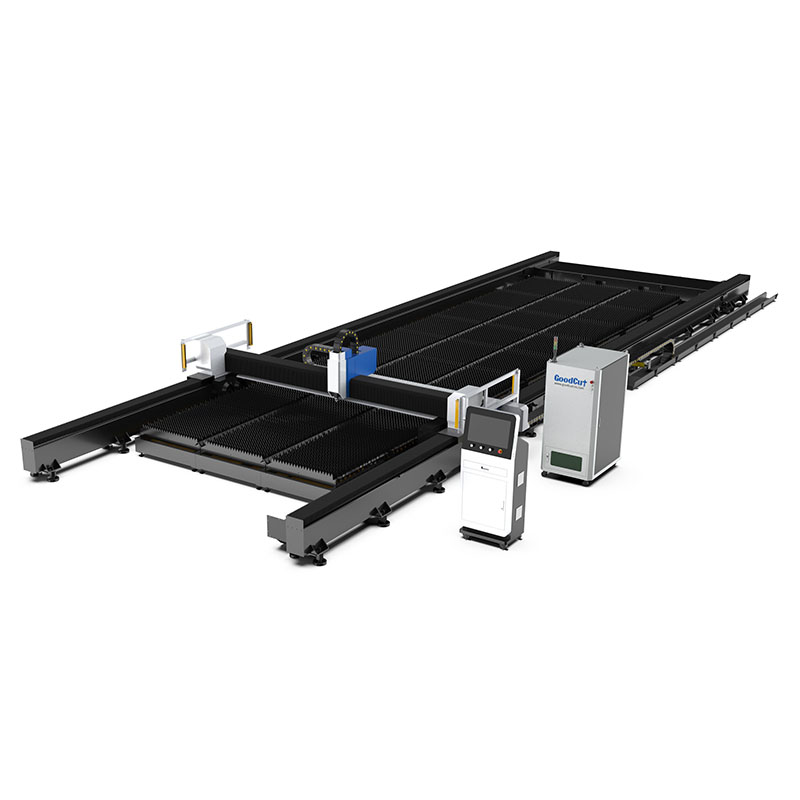

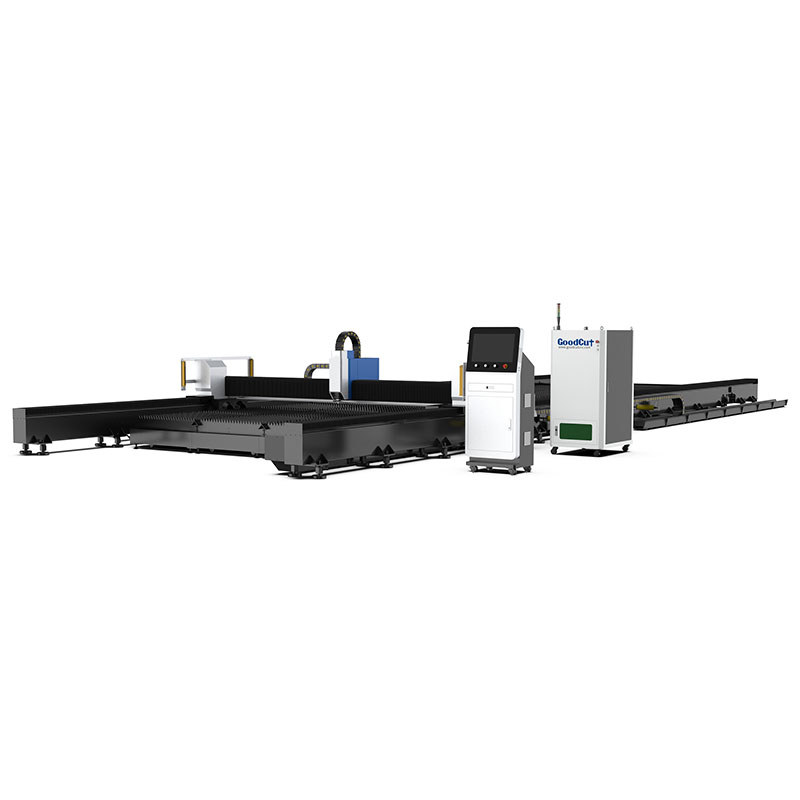

GC3012F 12m Length Ground Rail Fiber Laser Cutting Machine

Working area:3000*12000mm
Laser source: raycus/MAX/IPG
Laser power:1KW-12KW
Control system: cypcut
Product description: Machine price: 11000$-20000$ Working area:3000*12000mm Laser source: raycus/MAX/IPG Laser power:1KW-12KW Motor and driver: Japan fuji / Yaskawa Control system: cypcut
INQUIRY EMAIL

Ground-rail laser cutting machine

Ground-rail laser cutting machine is a kind of equipment that uses laser technology to cut and process materials, and its main feature is to move on two tracks parallel to each other, and quickly cut the processed products between the tracks.

Fiber laser cutting machine adopting world famous Germany fiber laser source and USA laser cutting head and dynamic focus system, it can cut and punch different kinds of metal material with high precision and high speed. Since laser is transmitted by fiber , it is no need to maintenance or adjusts the laser optical path , it greatly reduces the machines fault rate and prolongs the working life. Large format cutting area meets the demands of various kinds of metal processing.

It is widely used for carbon steel, stainless steel, aluminum and other metal materials cutting and forming, with high speed, high precision, high efficiency, cost-effective and energy saving. It is the first choice of the metal processing industry.

Working area	30006000mm/ 300012000mm/ 3000*14000mm
Laser power	1000W/ 1500W/ 2000W/ 3000W/ 4000W/ 6000W/ 8000W/ 10000W/ 12000W/ 20000W
Laser source	MAX/ Raycus/ IPG
Controller	Cypcut
Motor driver	Japan FUJI/ Yaskawa servo motor driver
Repeated positioning accuracy	0.03mm
Max moving speed	80m/min
Max acceleration	1.0G
Transmission	Rack and gear, double drive on Y axis
Power consumption	<10kw
Voltage	380V, 50HZ/60HZ, 3 phase

Features:

1. All IML-In mould label are safe and poison free with the international standard;

2. Multiple color patterns can be easily finished in one process;

3. You can add high values to the products to get vivid patterns and colors;

4. Strong adhesion and wear resistance after transfer printing, it can also increase the value of the product and strengthen the competitive ability of the market;

5. Widely used in food industry, paint industry, household industry etc.

Product Application

Product Description

The series of pioneer GC-3012F laser cutting machine offers power ranges between 2000W to 15000W.

One of the most efficient machine technologies for rapid sheet metal cutting which can cut the thickness for 50mm or less.

1. Saving Material ---- CNC control, it can cut the material in different shapes, improve the utilization rate and reduce waste.
2.Easy Programme ----high accuracy, cut to shape without molding, smooth finish, eliminating the process for edge modification.
3. Save Investment for Molding ---- Laser cutting without molding, eliminating the cost for molding and repair, save time, resulting in less manufacturing cost, reduce the cost of goods sold, particularly suitable for processing parts in large-size.
4. Protecting Environment ---- working area for laser cutting is fully enclosed, low noise, is clean, safe, free of pollution, totally improve the working condition and environment.
