GC1530WL-AF Customizable Auto feeding Wood lathe

GC1530WL-AF Customizable Auto feeding Wood lathe

Max working diameter： 300mm
Max working length: 1500mm
Knife: High speed lathe knife
Automatic feeding part: including
Product description: Max working diameter： 300mm Max working length: 1500mm Automatic feeding part: including Feeding size: Feeding diameter 30mm-100mm Feeding length 200-1200mm Knife: High speed lathe knife
INQUIRY EMAIL

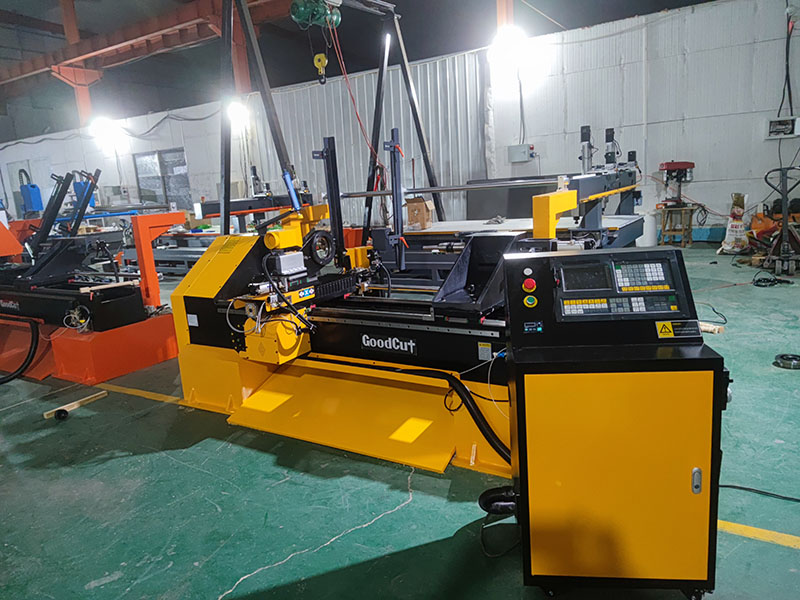

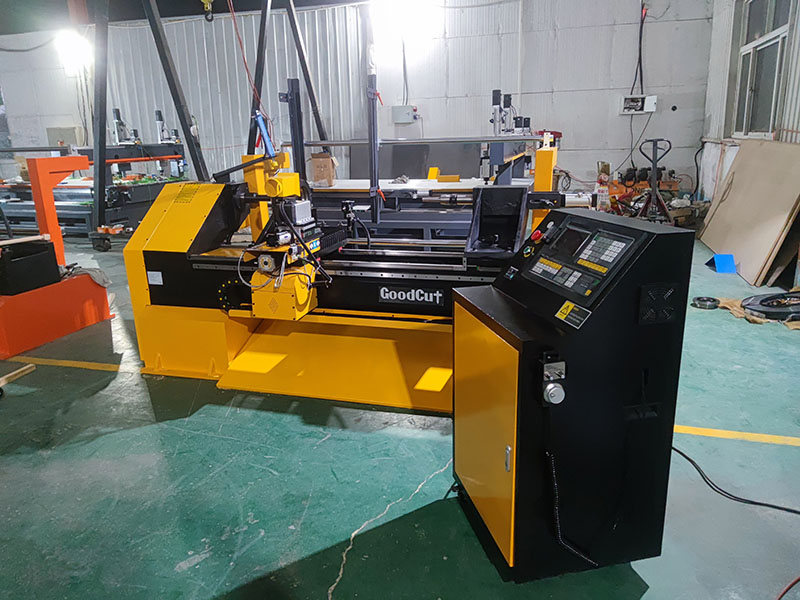

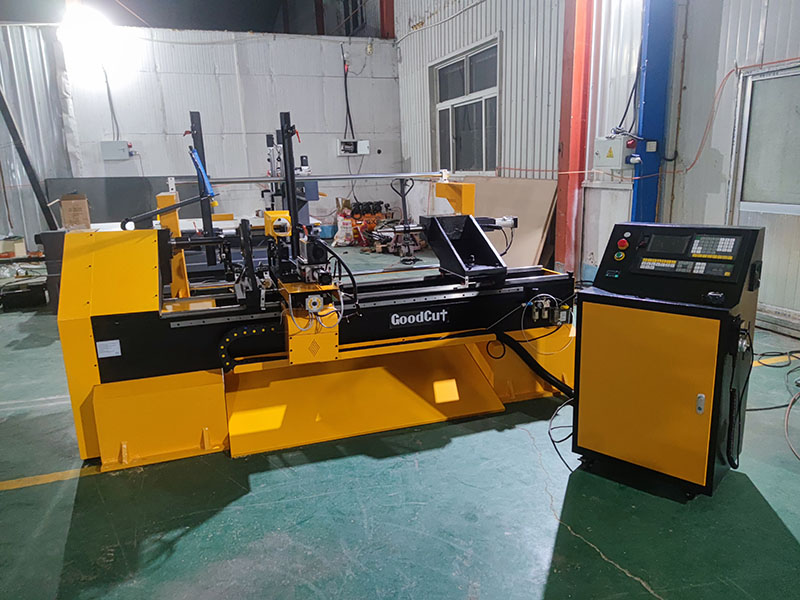

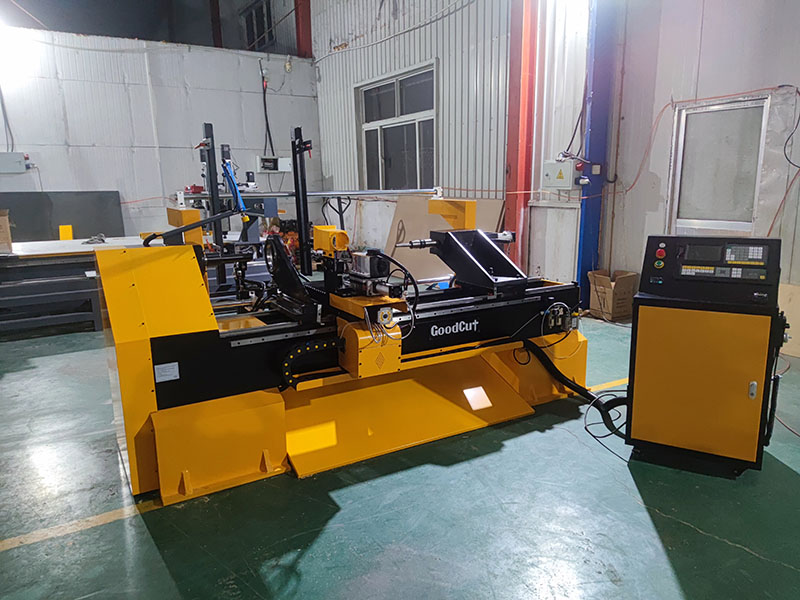

GC1530WL-AF Auto Feeding Industrial Wood Turning Lathe CNC Machine

Machine specifications
Certificate	CE
Machine material	Cast iron
Max diameter	300mm
Max length	1500mm
Automatic feeding part	Yes
Feeding size	Feeding diameter 30mm-100mm Feeding length 200-1200mm
Knife	High speed lathe knife
Spindle rotating speed	0-3500r/min
Drive system	Stepper motors 450C and Leadshine drives
Guide rail	Taiwan Hiwin 25mm guide rails with flange slider
Transmission	Rack and pinion, Taiwan TBI rolling ball screw
Air pressure	0.6-0.8Mpa
Control system	DSP
Software compatiliby	Type3/Artcam/Artcut/AutoCAD/Ucancam/JDpaint etc.
Computer interface	USB
Working voltage	380V, 50/60HZ, 3 phase or 220v single phase
Maintainance	Oil lubricating system
Accuracy	0.001mm
Environment temperature	0-45 centigrade
Relative humidity	30%-75%

Feature:

1. Max turning diameter can be 300mm, length 1500mm, working size can be customized.

2. Wholly cast iron lathe bed, which is high temperature annealing and vibrating stress relief, stabilized and will not be deformed forever.

3. Adopt Taiwan TBI ball screw and Taiwan and Hiwin Square guide rail with high precision and long lifetime.

4. Big torque stepper motor and Yako driver guarantee wood turning with fast speed.

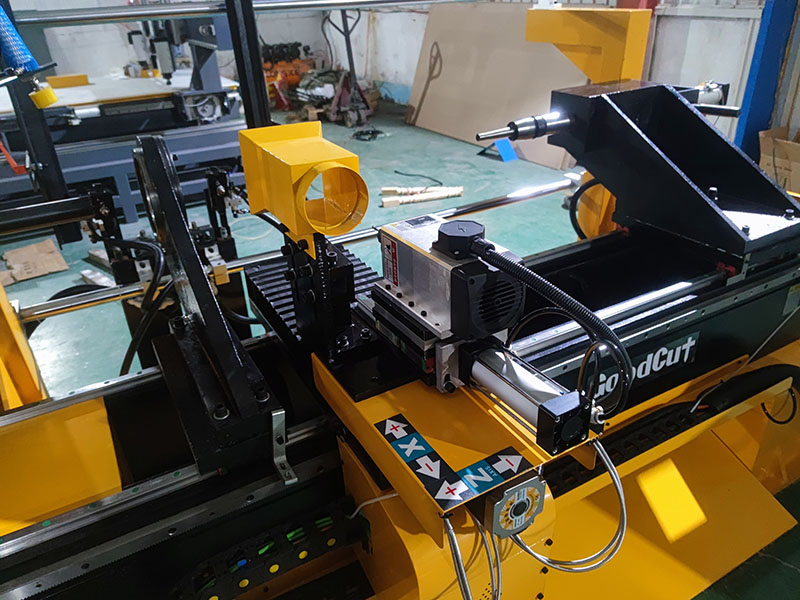

5. The Machine has 2 cutters at two sides of the machine, (the rough turning cutter and finish turning cutter work synchronously with layered process)and so that improve the efficiency and workpiece surface quality. Easy operation, support CAD software, transfer .dxf files to machine by USB directly.

*With Full Automatic Feeding device,automatic loading raw timber, automatic centering, automtic turning according to the program, save time and labor to improve the working efficiency.

*High accuracy stepper motor and Yako2d811 big power driver motor after program calculating, guarantee the exact processing size

*High quality straight line sliding rails from Taiwan Hiwin and TBI precise ball screw, control the linear error effectively.

Advantage:

1. Heavy cast iron lathe bed. Avoid shaking when the motor rotates fast for big sizes workpiece process, and the turning speed can be adjusted through the frequency converter.

2. With one chuck and one backlash for fix materials, the max working dimension is 300*1500mm.

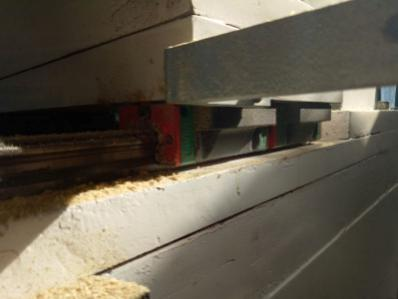

3. Adopts Taiwan Hiwin square guide,high precision and durable.

4. Autocad software, it is easier for drawing designs .

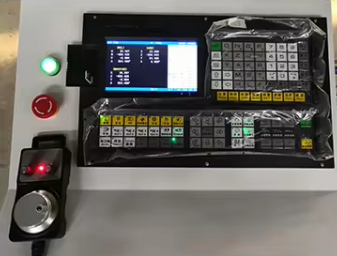

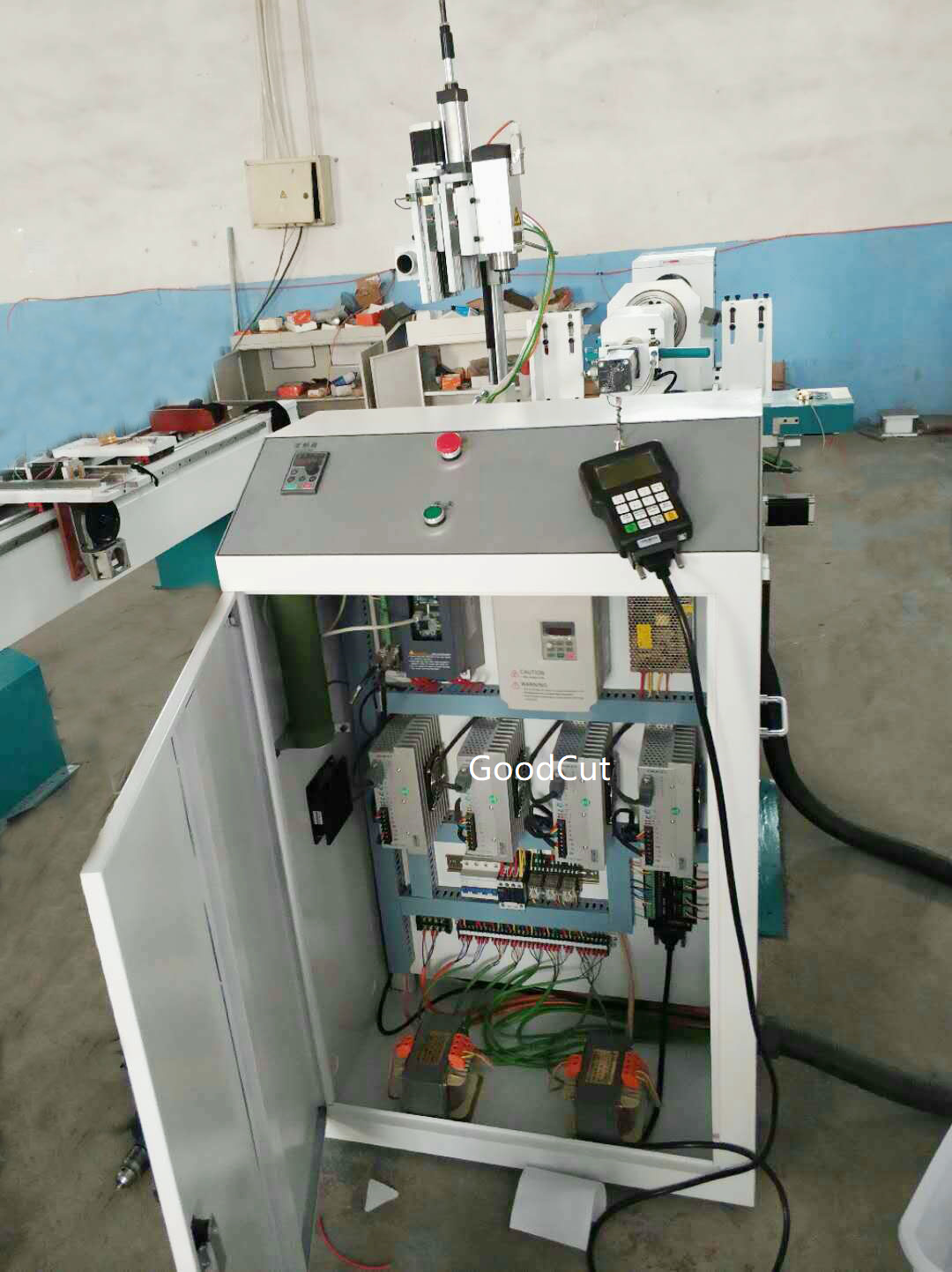

5. DSP handle controller with USB interface, it is easier to use. LCD control system is optional.

6. With Full Automatic Feeding device,automatic loading raw timber, automatic centering, automtic turning according to the program, save time and labor to improve the working efficiency.

Machine details:

Application:

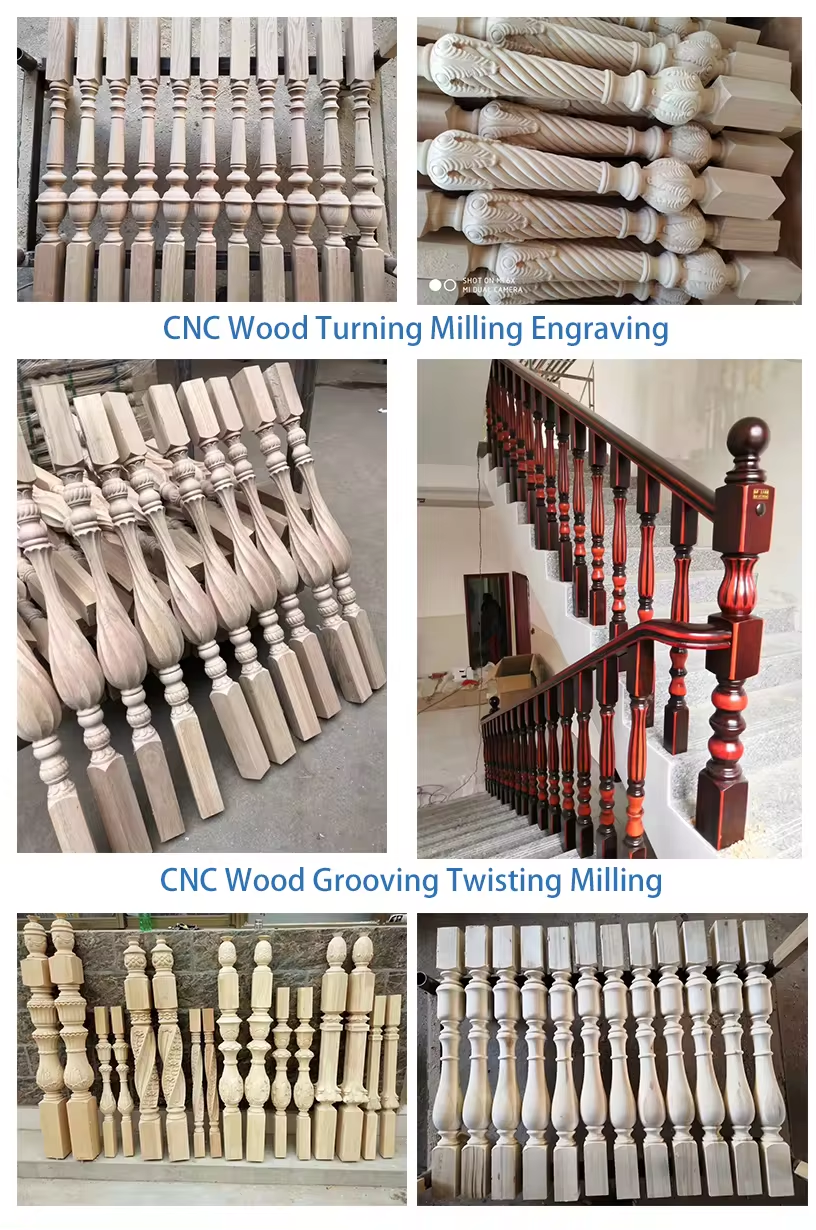

Automatic Feeding CNC Wood lathe is used for various cylindrical workpiece, bowl sharp, tubular sharp and vehicle wood crafts, such as various staircase column, Roman column, general column, tables or chairs legs, washstand, wooden vase, wooden table, baseball bats, car wooden furniture, children' s bed column, etc.

Full Automatic Feeding CNC Wood Turning Lathe Machine is suitable for mass production with same turning designs, the CNC wood lathe machine can automatic loading raw timber, automatic centering, automtic turning according to the program, save time and labor to improve the working efficiency.

Application material:
Pine wood,Beech wood, Oak wood, Mahogany wood, Camphor wood, birch wood, Rosewood, Lime wood,Teak wood, Artificial Marble, crystal,Resin glass Etc...

Application area:
wooden staircase handrail, table legs, sofa legs, bed legs, chair legs, baseball bat, billiard cues, poles, rolling pin, wooden brush handle,wooden columns, Pacilion spire etc.
