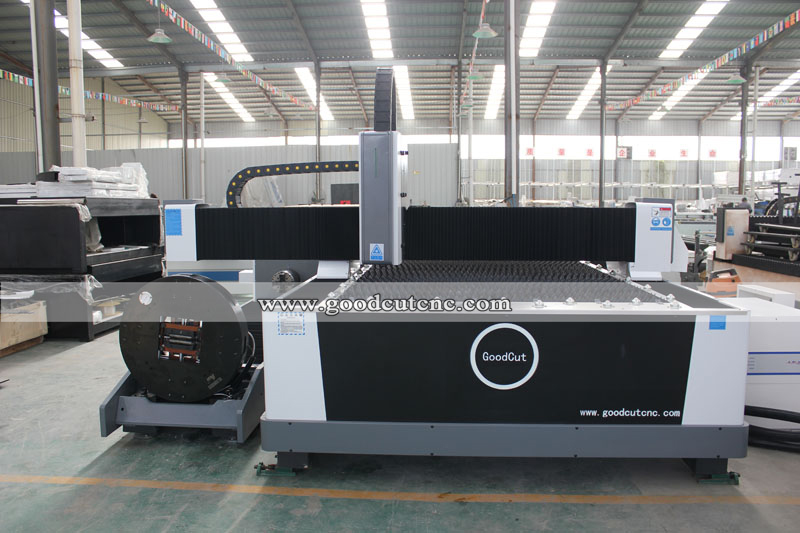

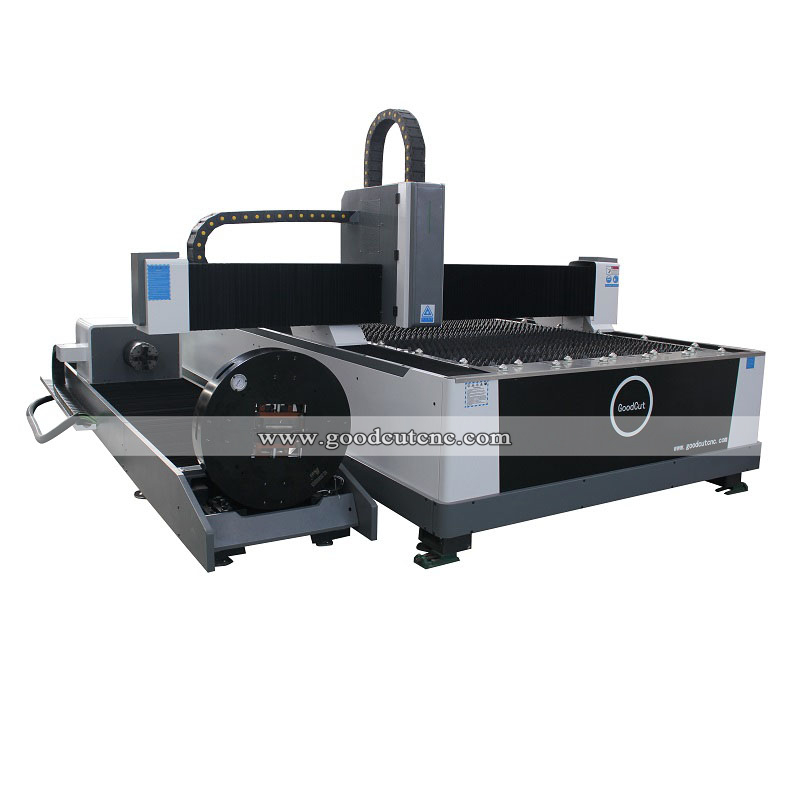

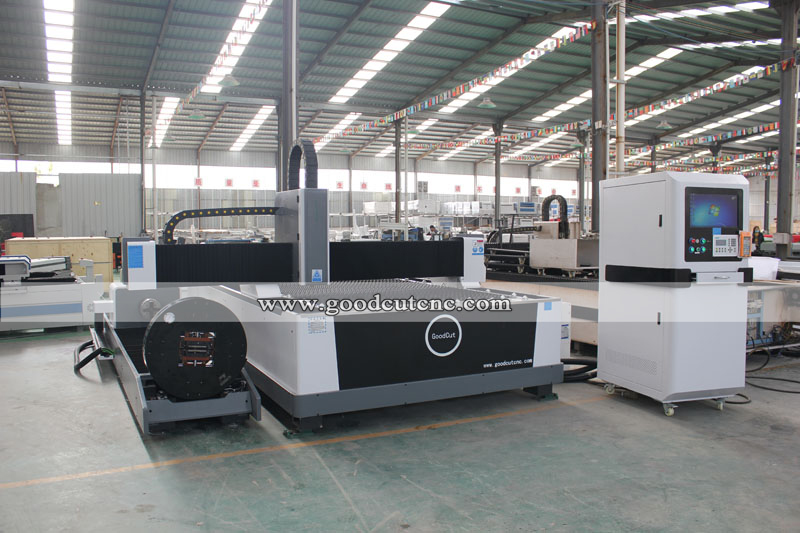

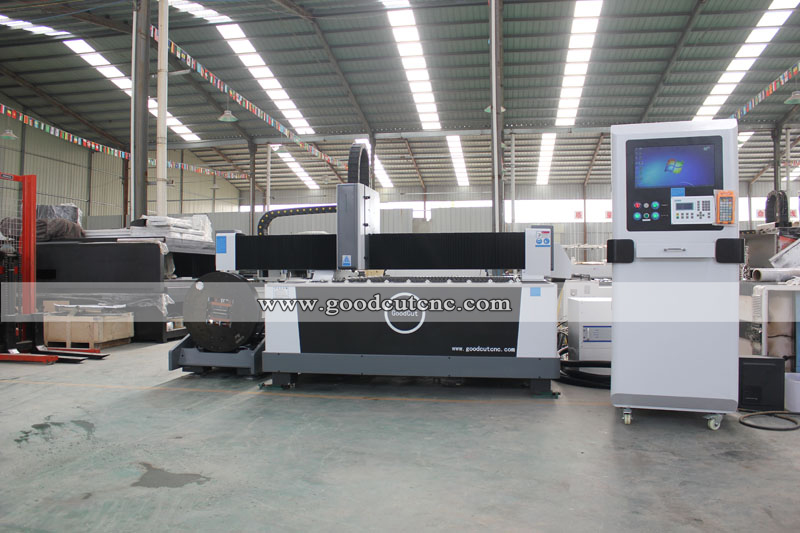

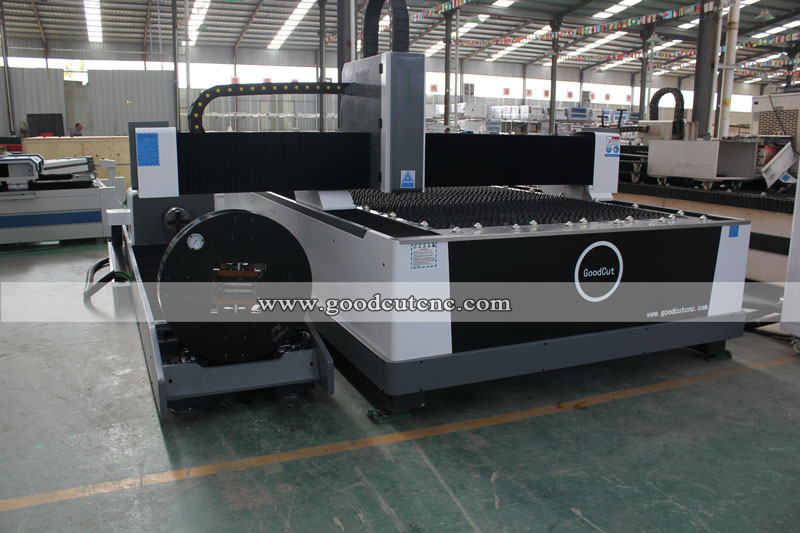

GC1530FR Fiber Laser Cutting Machine with Rotary for Plate and Tube Cutting

With rotary device
Both cutting plate and tube
Raycus/MAX/IPG laser source
High quality
Product description: 1500*3000mm plate working size 220mm diameter and 6m length rotary device With pneumatic chuck Raycus/IPG/MAX laser source
INQUIRY EMAIL

GC1530FR Fiber Laser Cutting Machine with Rotary for Plate and Tube Cutting

Parameter:

Items		Parameters
Model		GC-1530FR
Laser Source		IPG / Raycus
Power		1000w 1500w 2000w 3000w~15000w(can be customized)
Linear Rial		THK
Servo Motor		France Schneider Servo System
Reducer		Japanese Shimpo Reducer
Cutting Head		WSX / Raytools
Control System		Cypuct / Weihong
Wave Lenth		1080nm
Cutting Width(X&Y)		13002500mm 15003000mm 2000*4000mm (can be customized)
Laser Media		Fiber Laser
Voltage Requirements		220v or 380v/50Hz~60Hz
Min.Route Width		0.1mm
Reposition Accuracy		±0.05mm
Aiming Positioning		Red Dot
Pipe Material Length		0~6000mm
Pipe Material Diameter		10~300mm(Optional)
PS.All the working area and specifications can be customized according to your requests

Feature:

1. Swiss Raytool brand Auto sensor laser cutting head. With Auto sensor system. Make sure cutting steel which is out of shape.
Inside laser head, with one collimating mirror, one focus lens and protect the mirror. At the bottom with copper nozzle, diameter mainly with 1.5mm diameter.

2.With CYPCUT Control system and software with the English language, applicable insert files with DXF Or AI format. Drawing in the software is also okay. Software with fly cutting mode for cutting the same products to save time. With Nesting function, automatic compose type for saving materials by saving spaces.

3. When laser head cut metals, there will produce some hot energy in the laser head and laser source. A water chiller is for cooling the mirrors and cooling the laser source. The temperature in the water chiller is an auto adjustment, mainly set up with 25-degree around water in chiller should be pure water

4. Chinese best brand Raycus laser device 500W-6000W: Applicable for cut high reflect materials like aluminum and copper. The photoelectric conversion more than 30%, Working environment: 10-40 degrees. Device with air-conditioning to keep it at normal temperature.

5. Gear- rack transmission system which with Germany brand rails. X and Y axis Moving speed can max 80m/min.

6. Big torque Japanese Yaskawa drive motors. Match-able with the transmission system, improve cutting speed and precision

7. At the bottom of the machine, with the collector for saving small cutting pieces. Below collector with wheels, easy push and pull.

8. The purging system is designed inside the machine bed. So make sure the smoke is absorbed immediately after cutting. Protect the air environment is also very important.

9. Feeding system with rolls. It is easy to load heavy sheet and metal sheets can be protected by avoiding scratched

10. Gear-rack and guide rails after using some time always need to be maintained by injecting oils to make sure the machine keeps moving fluently and in good precision.

11. X-axis beam is aircraft-grade aluminum casting, replace of the welded steel gantry, more light-footed to make the whole machine working very fast.

Application:

1.Widely used in cutting carbon steel,manganese steel,spring steel,stainless steel,titanium alloy,galvanized sheet,aluminum plate,brass copper and other metal plate material.

2.Used for metal round,square tube,such as carbon steel,manganese steel,spring steel,stainless steel,titanium alloy,galvanized sheet Aluminum plate,brass,copper.

3.Ultra-high type,special metal material cutting.
