Laser Marking Machine

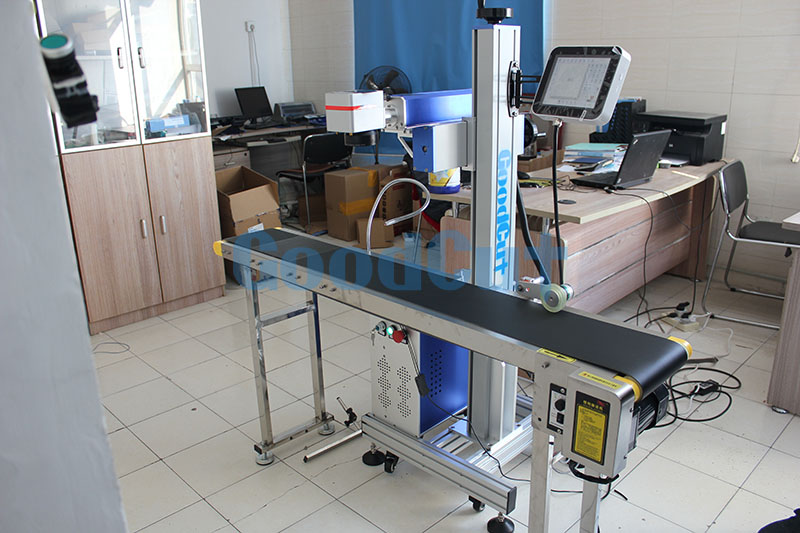

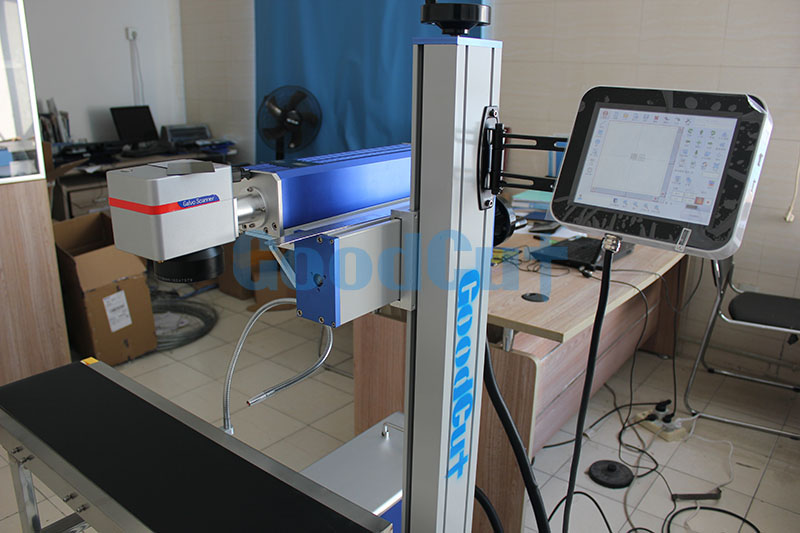

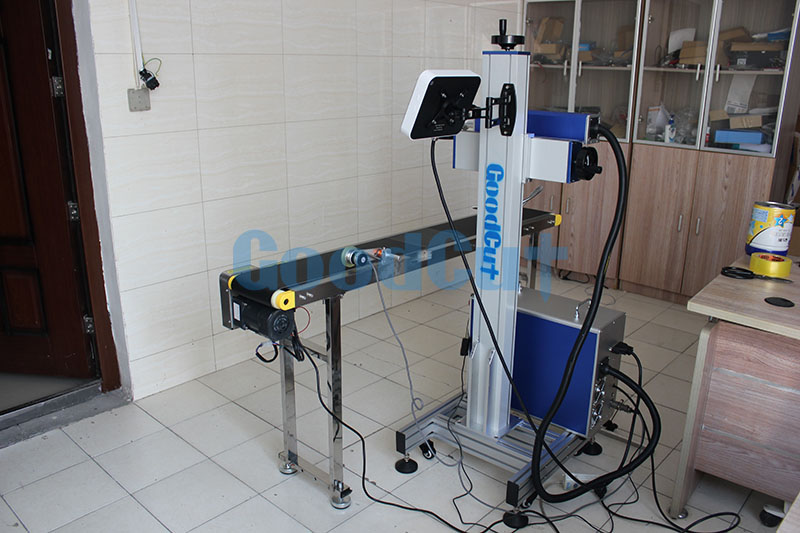

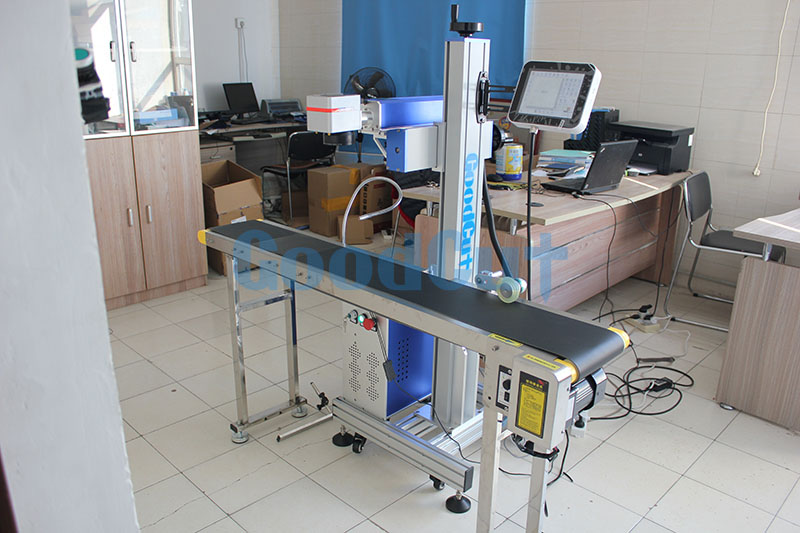

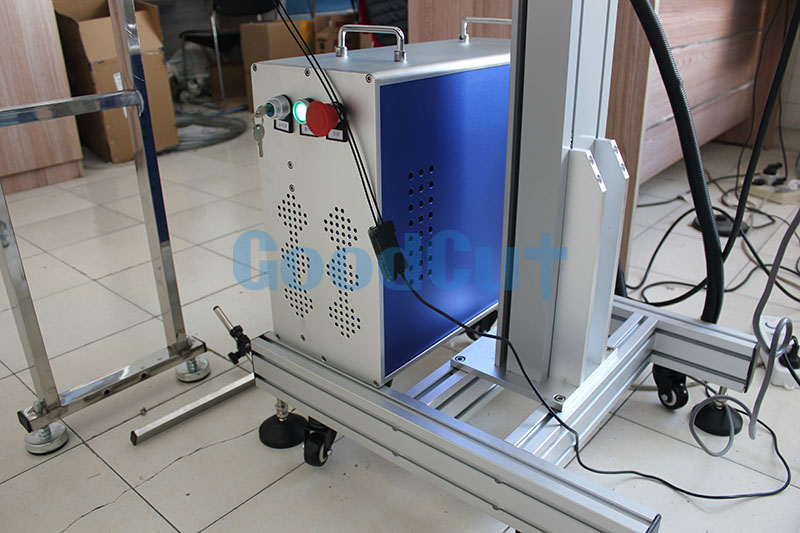

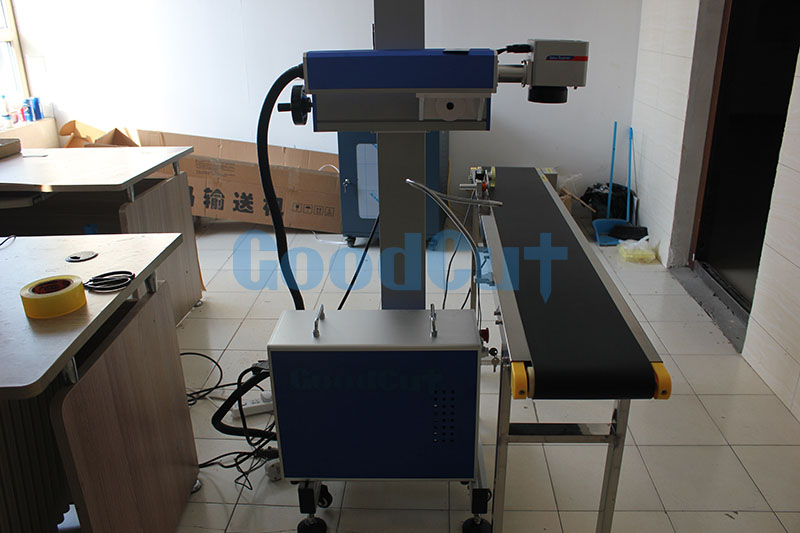

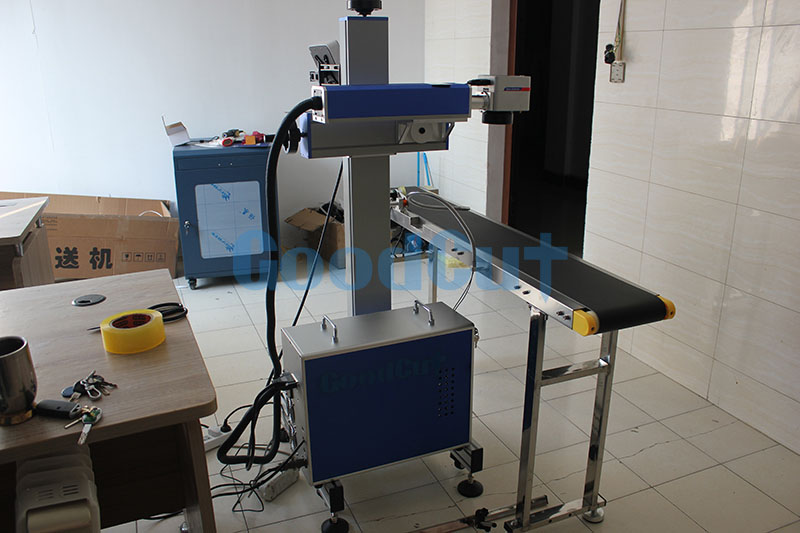

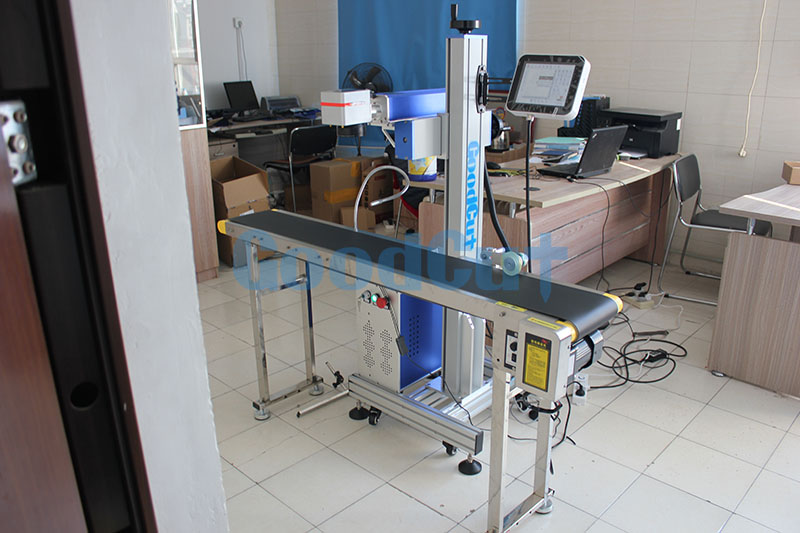

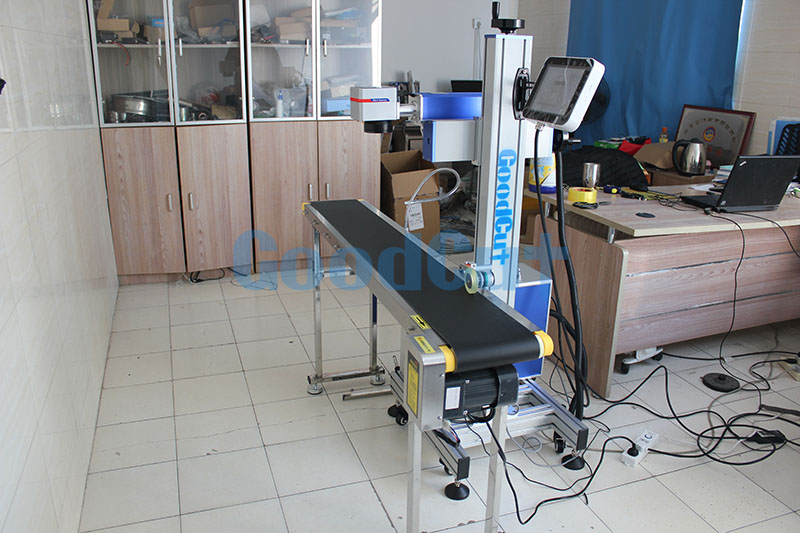

Fly Fiber Laser Marking Machine with Conveyor Belt

Mahing size: 110mm*110mm
Laser power: 30W/ 50W
Laser sources: Raycus, Germany IPG
Process material: metal and part of nonmetal
Product description: metal marking machine Raycus/ IPG 30w/ 50w marking machine
INQUIRY EMAIL

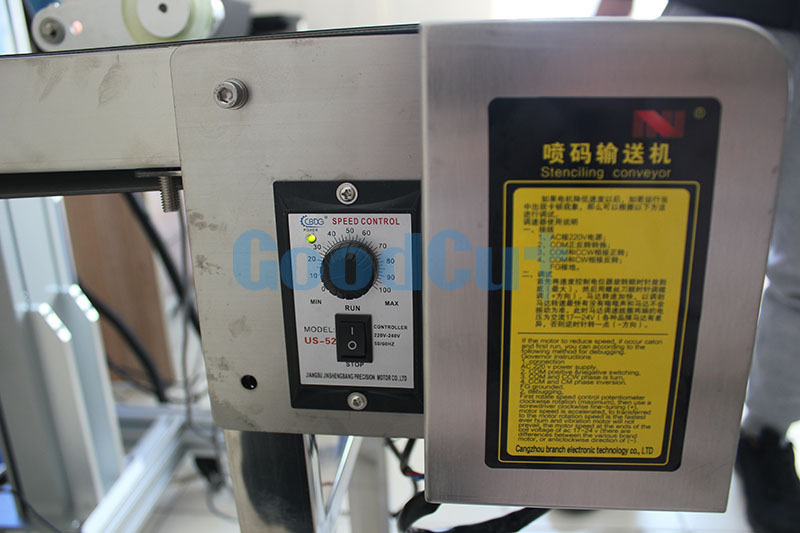

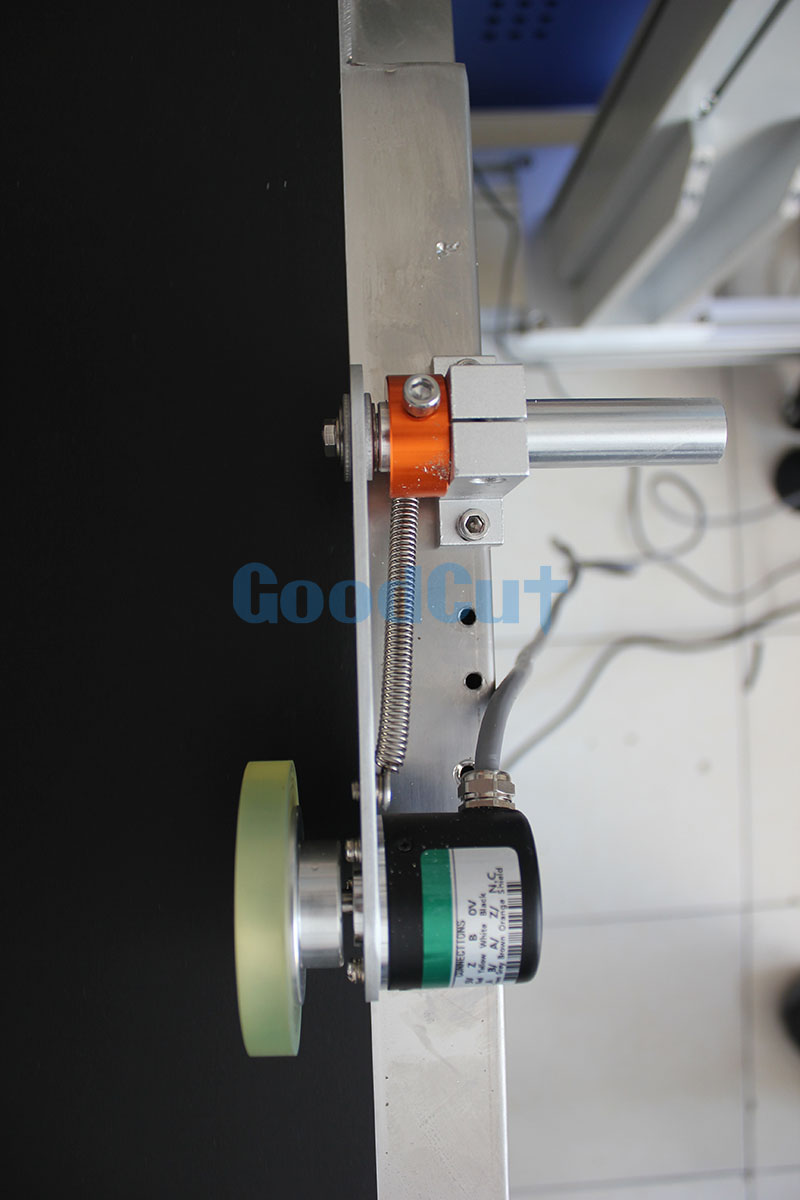

Belt transmission and Fly marking for production line plastic metal

tell us your requirement, we offer customized Fiber laser marking machine conveyor belt for high-efficiency mass production

Easy to operation and mark for metal , stainless steel for series number , production date

Main features of fiber laser marking machine:

1. Fiber laser(German IPG brand or China fiber laser optional)

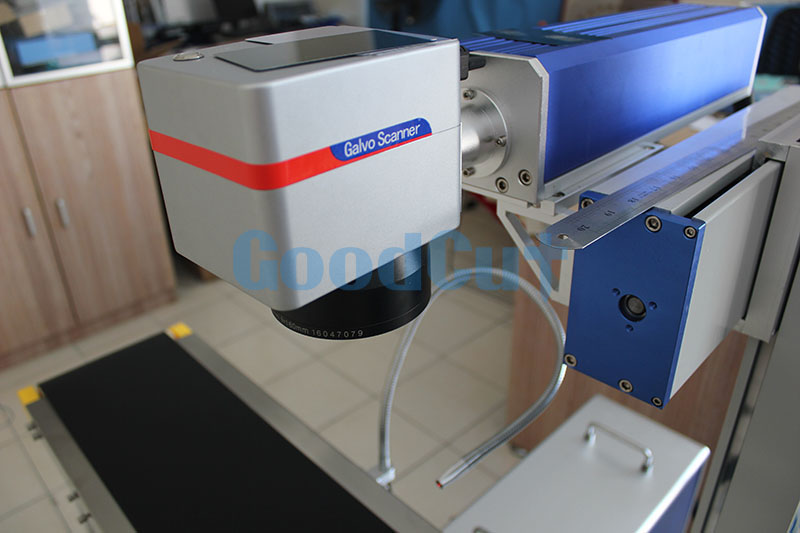

2. High speed galvo scanner(import or china brand optional)

3. No maintenance laser source: service time 100,000 hours.

4. Higher precision,faster speed

5. Small size,low power consumption

6. Red light preview:show the marking position before laser

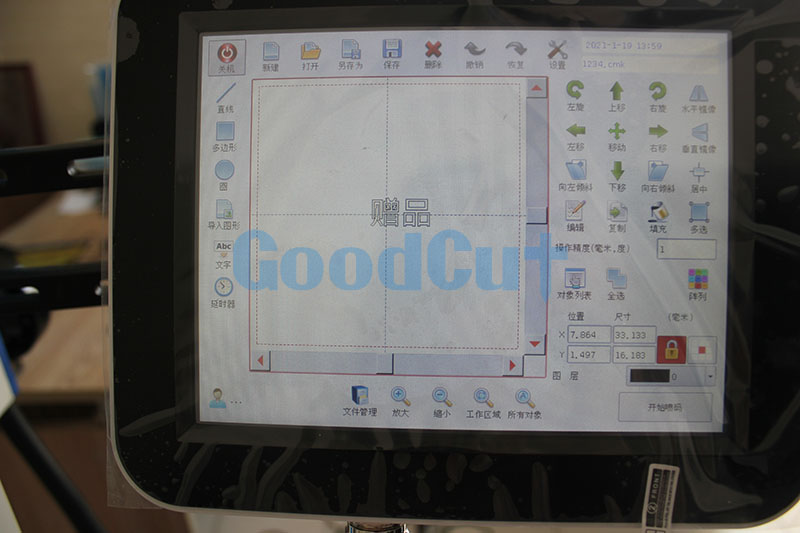

7. Notebook with Powerful software

8. User friendly interface, easy operation

Model	GC-FD20	GC-FD30	GC-FD50	GC-FD100
Laser power	20W	30W	50W	100W
Wave length of laser	1064nm
Marking scope	110110mm 150150mm 175175mm 200200mm 300*300mm Optional
Laser repetition frequency	20kHz~100kHz
Laser sources	Fiber module
Marking Line width	0.01-0.1mm
Laser Head	Scanning head
Repeated accuracy	0.0025mm
Process Material	All kinds of metal and part of Non-metal Materials
Marking Depth	0.01-0.2mm(adjustable depending on materials)
Marking Speed	≤7ooomm/s
Power supply	220V/50Hz/500W
Cooling ways	Force-air Cooling
Support format	PLT, BMP, DXF, JPG, TIF, AI etc
Package size	0.580.930.85 m
Gross Weight	80KGS

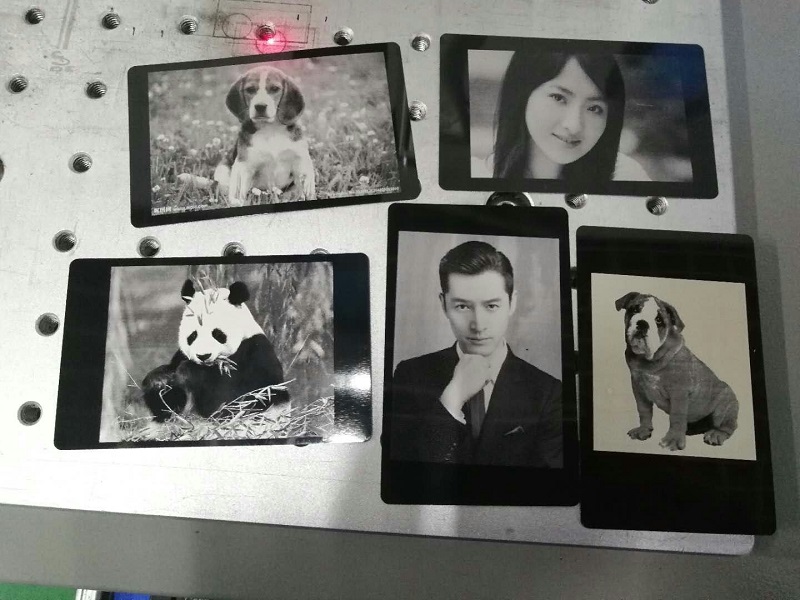

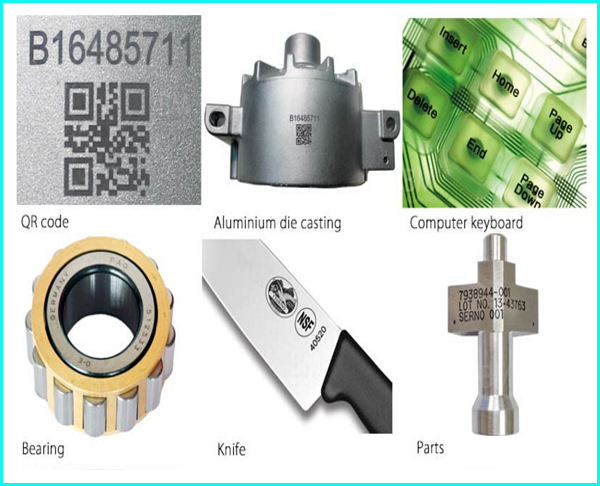

GoodCut is known for the high quality of the marks we produce, and these samples from GoodCut Fiber Lasers showcase some of the common applications that highlight its capabilities. Fiber lasers can be used for a wide variety of applications, from industrial traceability to branding, on materials such as steel, copper, aluminum, plastic, ceramic, and brass.

Mobile phone keypads, non-opaque-plastic keypads, electronic components, integrated circuits (IC), electrical appliances, communication products, sanitary wares, tool accessories, cutters, watches, glasses, jewelry, auto parts, boxes, bags, clasps, cookers, stainless steel products, etc

marking (2).jpg
