CNC Router

GC1325S Factory Direct Sales 1325 3d Marble Granite Engraving Cutting Milling Machine Stone Cnc Router

5.5kw water cooling spindle
Stepper motor and driver
DSP Controller
Fuling inverter
Product description: Working area: 1300*2500mm with water tank Structures: heavy duty body design Mach3/NC-Studio / Richauto Panel control system Materials: Stone, tombstone processing, advertising, decoration, crafts
INQUIRY EMAIL

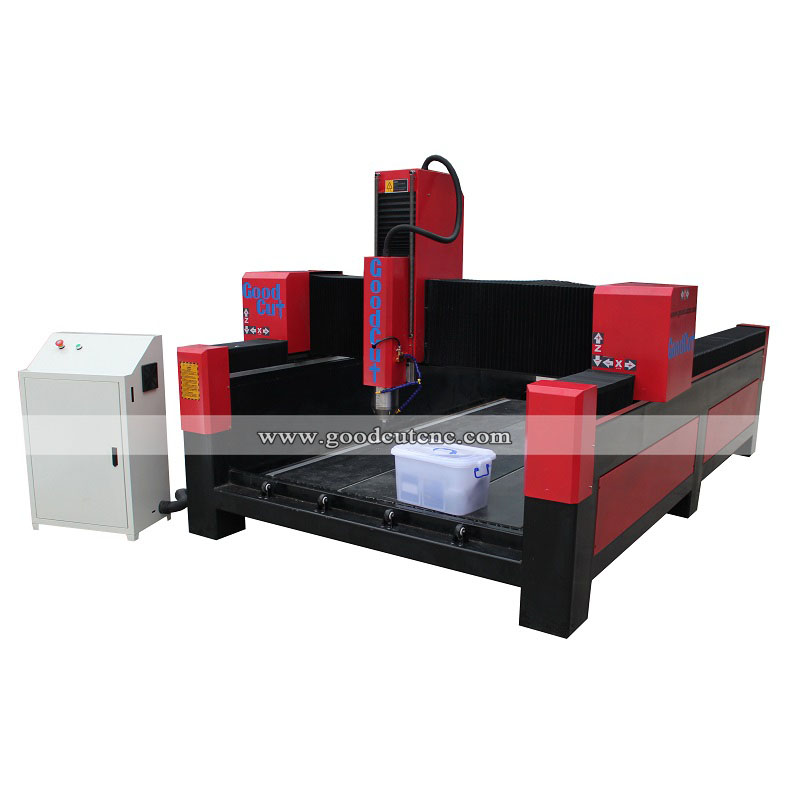

GC1325S Factory Direct Sales 1325 3d Marble Granite Engraving Cutting Milling Machine Stone Cnc Router

Features of Factory Direct Sales 1325 3d Marble Granite Engraving Cutting Milling Machine Stone Cnc Router:

1. GC1325 is a stone engraving CNC Machine with heavy duty design, welded with thickened square tube T-bed, strong and durable, 3 axis with dust proof, water tank with water cooling sprayer for cooling when working, Hiwin 25mm square rail and high speeding motor & driver, the machine with big loading capacity,stable operation, and longer time working;

2. Professional Mach3/NC-Studio / Richauto Panel control system, water cooling spindle 5.5KW, long working life, low noise, strong cutting ability;

3. 5.5kw water cooling spindle with water tank

4. Stepper motor and driver, servo motor can be optional

5. The water proof and dust proof system for X Y Zaxis, can protect all the parts, reduce the machine fault, enlarge the life time.

6. Auto Oil-filling System for gularly maintenance (lubricating) is so convenient.

7. Software compatibility is good and can be compatible with many kinds of CAD/CAM design software such Typ3/Artcam.

Parameters of Factory Direct Sales 1325 3d Marble Granite Engraving Cutting Milling Machine Stone Cnc Router:

Model	1325
Machine body	Thicken heavy duty body
Working area(XYZ axis)	13002500200mm
X Y Z rail	HIWIN linear square guide rail
X Y Z transmission	XY axis gear transmission, Z axis Taiwan TBI ball screw transmission
Spindle	5.5kw water cooling spindle
Spindle speed	24000rpm
Inverter	4.5KW inverter
Motor	Stepper motor
Driver	Stepper driver
Transformer	Yes
Lubrication	Yes
Max. speed	8m/min
Max. working speed	4m/min
Voltage	AC 380V 50HZ
Collects	ER20 3.175-12.7mm
Repeat reposition accuracy	0.01mm
Cover	X Y Z cover
Command	G Code
Software	Artcam/ Ucancam
Control system	NC-Studio
Different configuraiton	Optional driving mode:
	Servo motor and driver
	Optional control system:
	DSP controller

Parts images

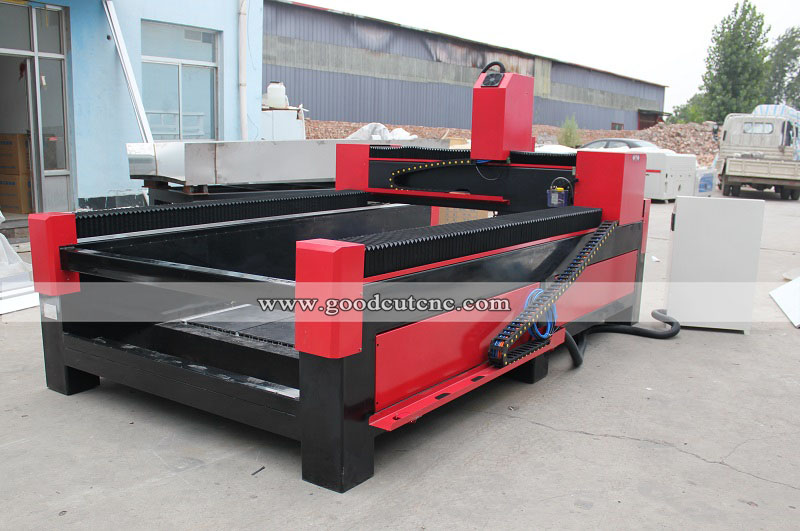

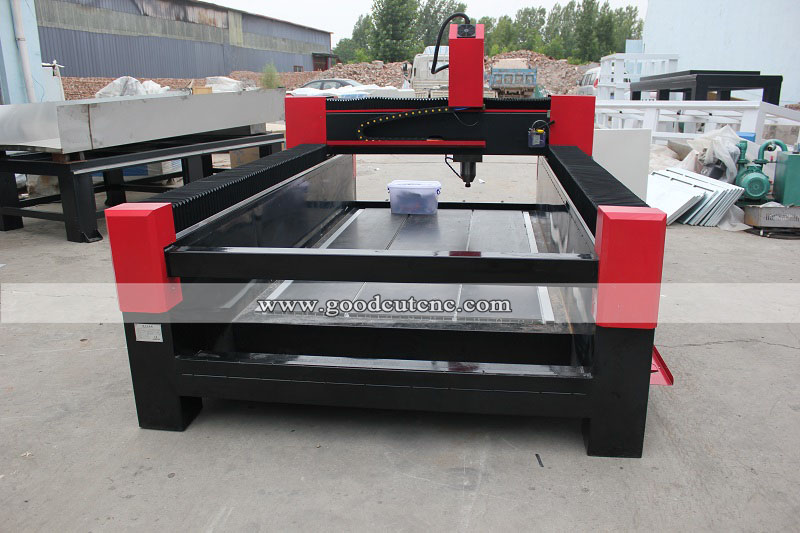

Heavy duty thicker and bigger welded steel tube frame--more stronger

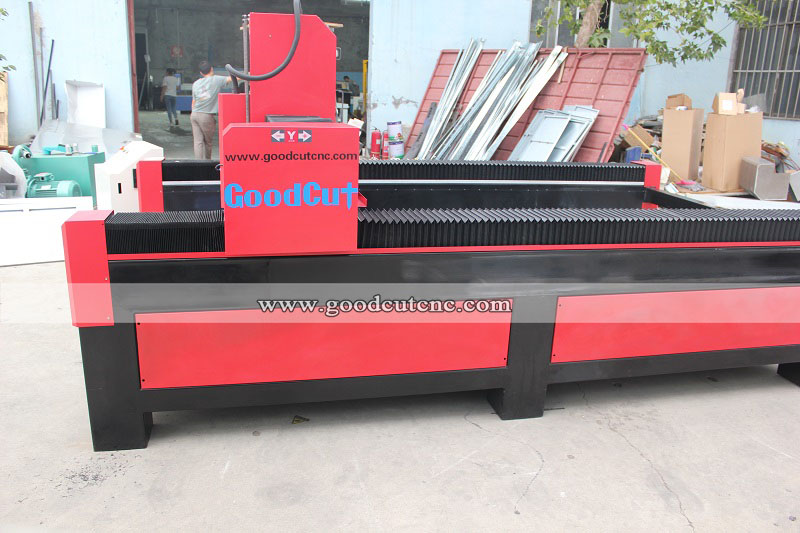

Dust-proof and waterproof design protects the transmission components.

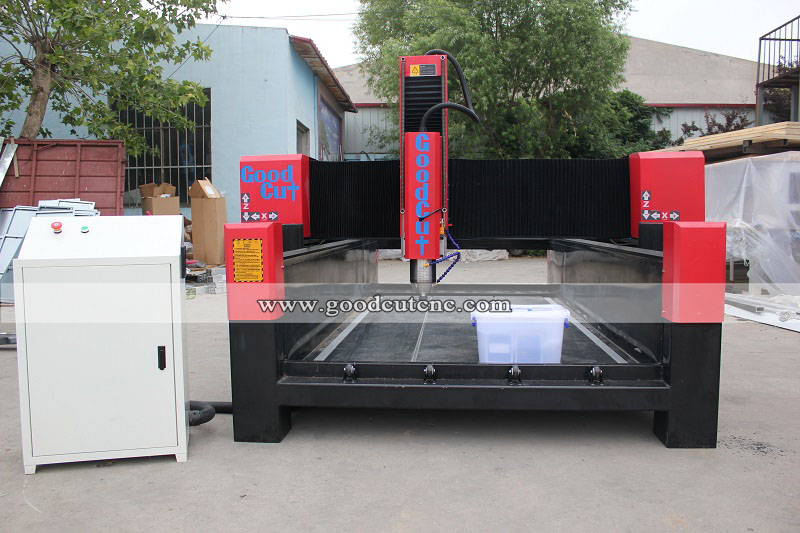

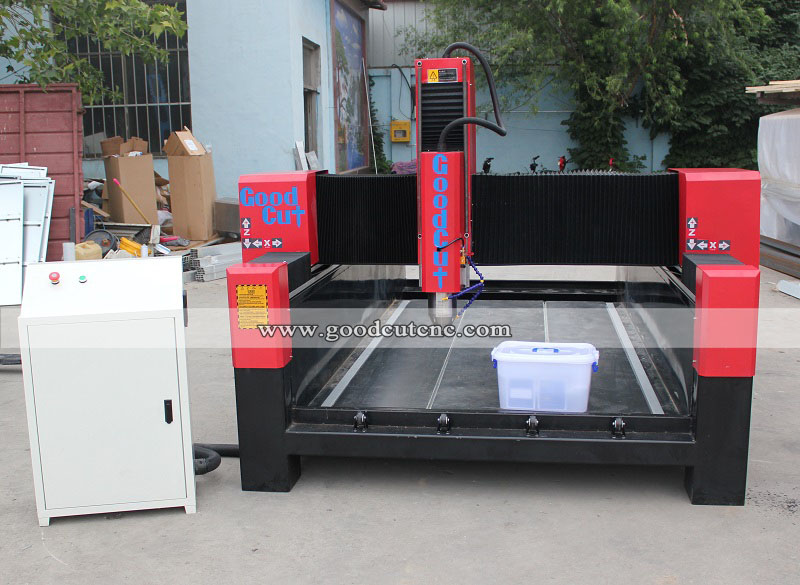

All surroundings of stone cnc router is with stainless steel cover to avoid machine be dusted after long time operation, also All axis use dust proof cover to protect guide rail from water.
