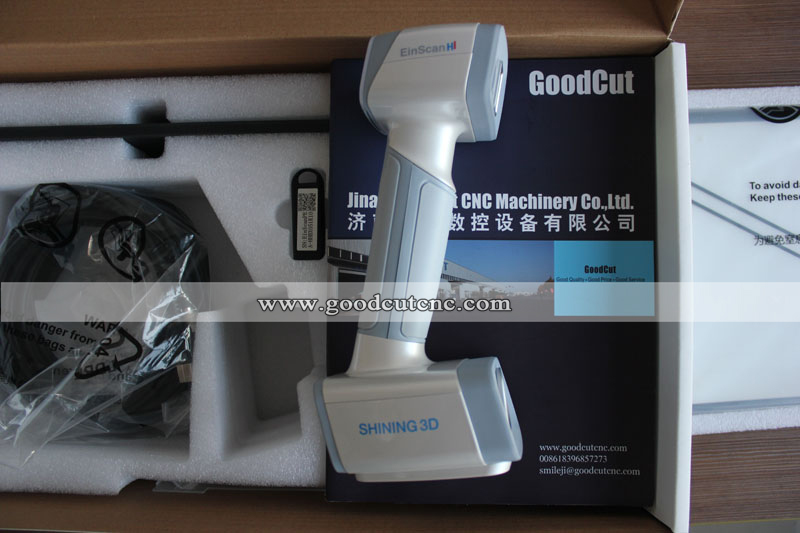

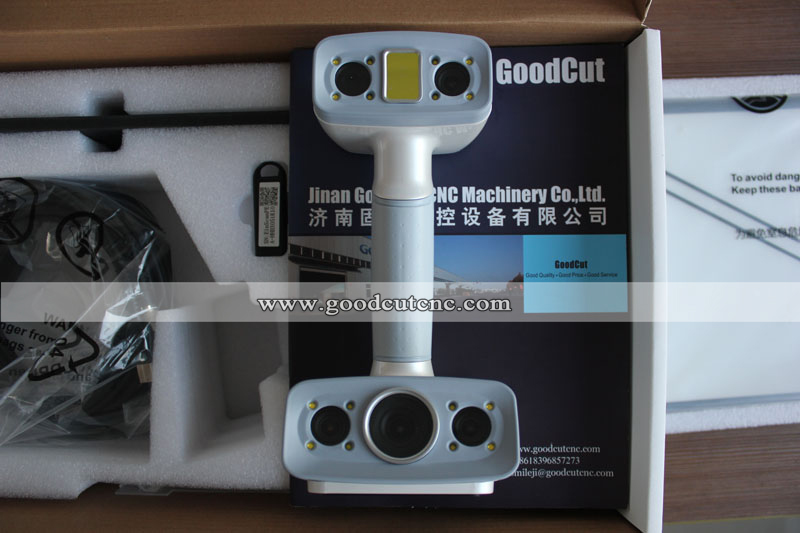

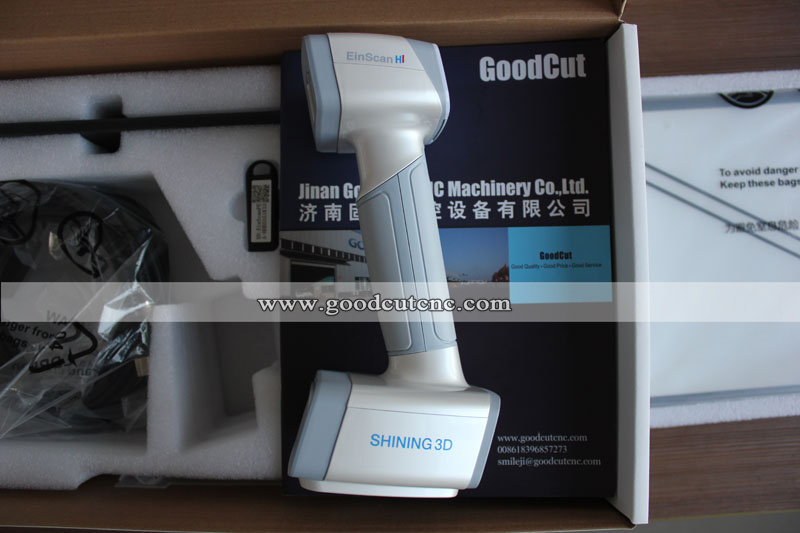

Einscan H 3D Handheld Scanner with Hybrid LED & Infrared Light Source

Einscan H 3D Handheld Scanner with Hybrid LED & Infrared Light Source

Handheld
Hybrid LED & Infrared Light Source
High precision
Scanning color
Product description: High speed and high precision, can scan hair Hybrid LED & Infrared Light Source Scanning color
INQUIRY EMAIL

Einscan H 3D Handheld Scanner with Hybrid LED & Infrared Light Source

Einscan H
Scan Mode	Standard Scan	Body Scan	Face Scan
Light Source	White Light, visible	White Light, visible	Infrared light, invisible
Safety	LED light（eye-safe）	LED light（eye-safe）	CLASS І (eye-safe)
Scan Accuracy	Up to 0.05mm	Up to 0.05mm	Up to 0.6mm
Volumetric Accuracy*	0.05+0.1mm/m	0.05+0.1mm/m	/
Scan & Align Speed	1,200,000points/s, 20FPS	1,200,000points/s, 20FPS	720,000points/s, 20FPS
Camera Frame Rate	55FPS
Align Modes	Markers Alignment、Feature Alignment、Hybrid Alignment、Texture Alignment	Feature Alignment	Feature Alignment
Working Distance	470mm
Depth of Field	200-700mm	200-700mm	200-1500mm
Maximum FOV	420mm*440mm	420mm*440mm	780mm*900mm
Point distance	0.25mm-3mm	0.5mm-3mm	0.5mm-3mm
Built-in Color Camera	Yes
Color Scanning	Support
Connection Standard	USB3.0
Output Formats	OBJ;STL;ASC;PLY;P3;3MF
Dimensions	108mm110mm237mm
Weight	703g
Operating Temperature Range	0-40℃
Operating Humidity Range	10-90%
Certifications	CE，FCC，ROHS，WEEE，KC
Recommended Configuration	OS：Win10，64 bit；Graphics card：NVIDIA GTX1080 and higher；Video memory：≥4G；Processor：I7-8700；Memory：≥32GB

* Volumetric accuracy refers to the relationship between 3D data accuracy and object size; the accuracy is reduced by 0.1mm per 100cm(standard scan & body scan).

1. Infrared & Structured Light Hybrid Light Source

Hybrid structure light source technology integrating LED structured light and invisible infrared light into one device and adding advanced smart presetting in different scan modes allows 3D scanning in a broad range of applications and promotes the popularization of portable 3D scanning technology.

2. The Era of Scanning with Hair Acquisition

The invisible infrared light source provides a reliable solution to the problem of acquiring dark-coloured objects and enables an easy acquisition of human hair.

3. Invisible Light 3D Scanning Experience

The new face scanning mode adopts invisible infrared light enabling a safe and comfortable scanning process.

Fine Details
Impressive high resolution reaches 0.25 mm, EinScan H captures full geometry of objects such as artwork or furniture with fine details . The high accuracy of scanned data up to 0.05 mm and volumetric accuracy 0.1mm/m improves the precision of 3D modeling in a dense points cloud or polygon meshes.

Fast Scanning
Scan speed up to 1,200,000 points/s and large scan FOV of 420*440 mm ensure fast 3D scanning of large size objects. The optimzied alignment algorithm enables efficient alignment despite small movements of the scanned object or person.

Full-color Reproduction
The built-in color camera supports full color texture capturing and tracking by texture.

Portable & Easy Operation
The software is intuitive and user-friendly. Easy operation for professional users and beginners alike. Easy to own, easy to use.

Weight
703 g
