DSP Controller A11 Rich Auto A18 for CNC Router Machine

CNC Router Controller
with Controller Handle
A11E Rich Auto
DSP A18 for 4 Axis
Product description: DSP controller CNC Router controller A11 Rich Auto A18 controller for 4 Axis
INQUIRY EMAIL

DSP Controller A11 Rich Auto A18 for CNC Router Machine

Features:

a)The handle is widely used in all kinds of engraving machine and milling machine with super quality and competitive price.

b)The handle can off-line work,read U dish,self check function,dynamic update.

c)Adopt power-off protection ,breakpoint restoration ,smooth processing.

d)High subduviding,high precision,high speed and support straight line,arc interpolation.

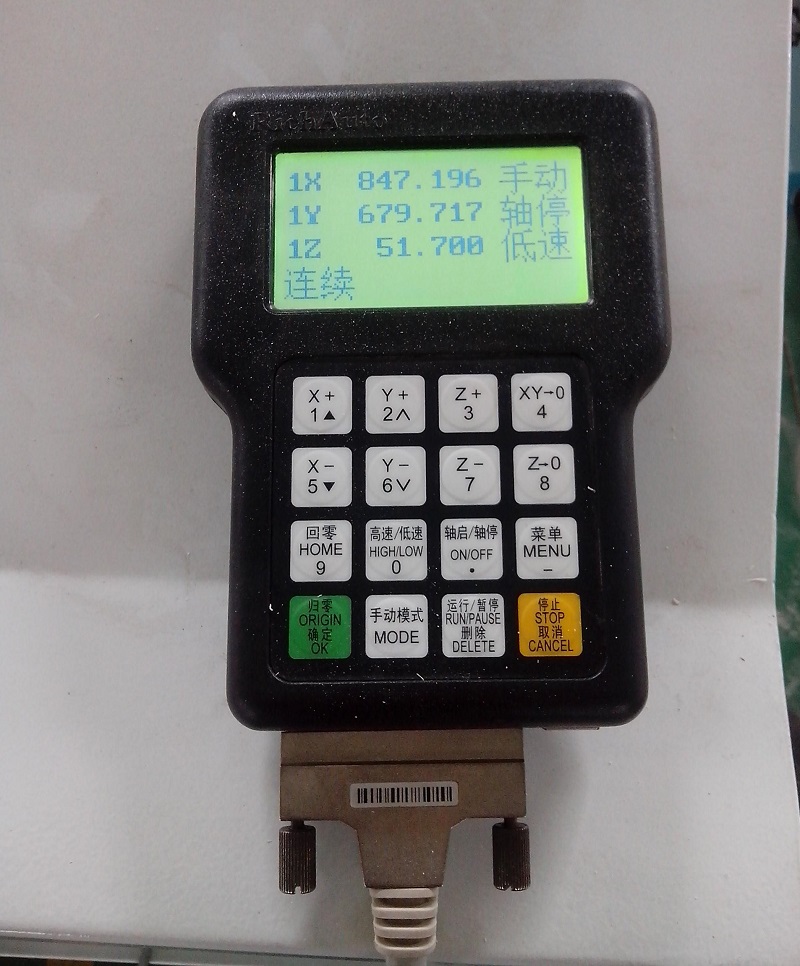

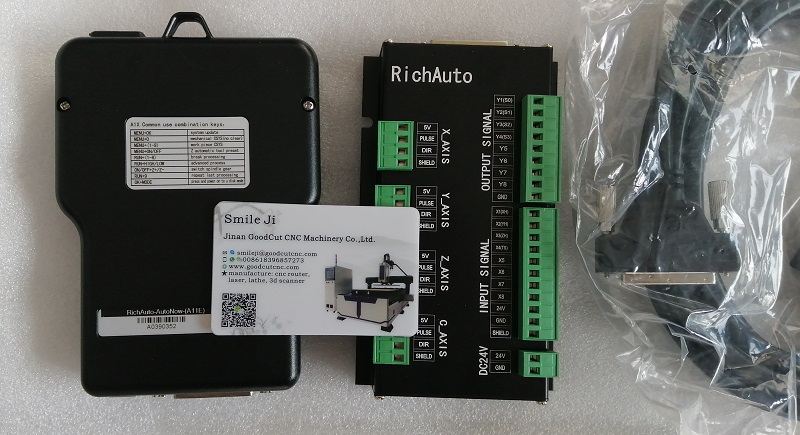

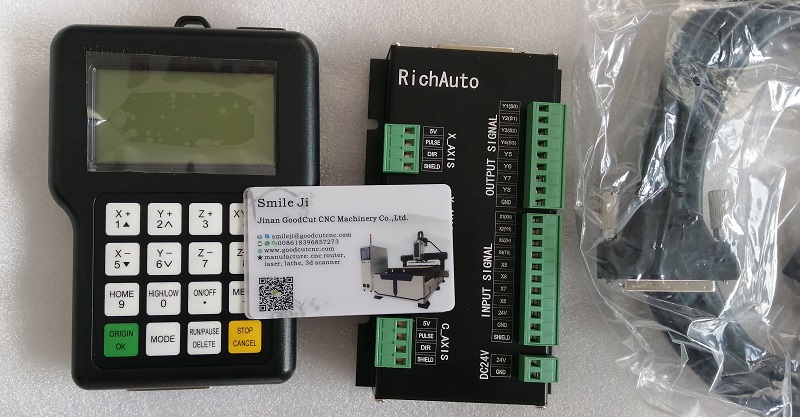

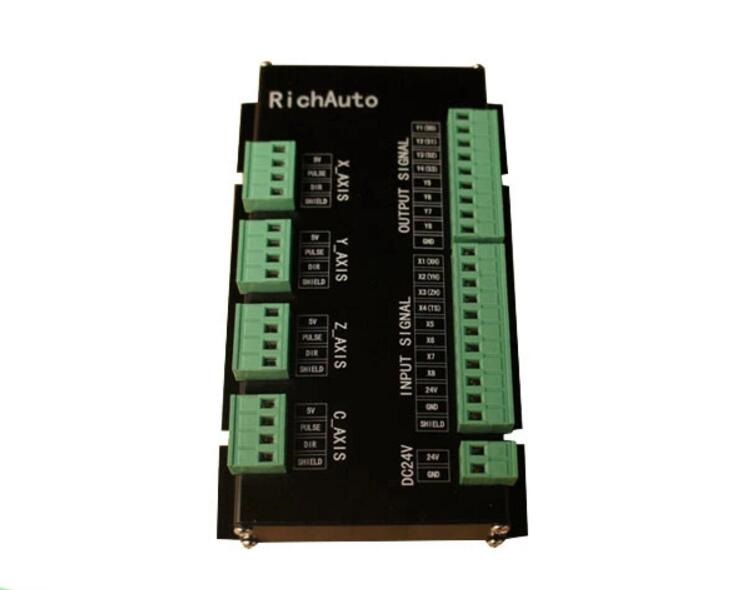

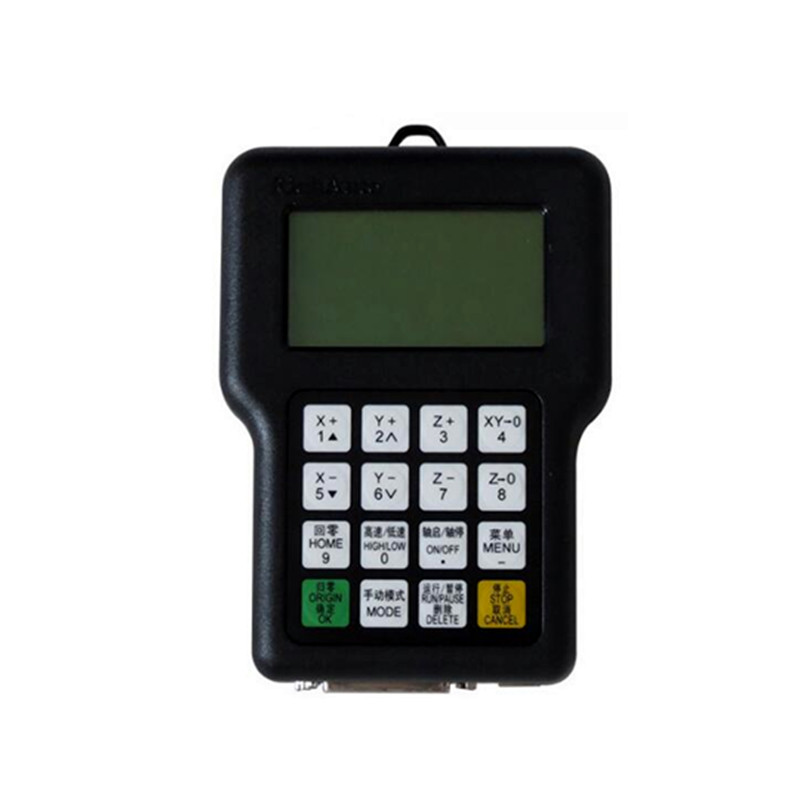

Detailed Images

DSP parameters

All set include	controller handle 1pcs board 1pcs USB wire 1pcs date wire 1pcs
Display Screen	128*64Monochrome LCD
Communication Port	U Disk,USB Cable
Controlled Axis Number	3 axis， 4 axis
Control Signal	Differential Signal
Drive System	Step Motor/Servo Motor
Min.Input Unit	0.001mm
No Volt Protection	Support
External Power Supply Voltage	24VDC
Manual Mode	Continuous,Point Move,Distance
Interpolation Way	line,arc
Soft/Hard Limit	Support
Max.Pulse Frequency	1M/S
Password Protection	Support
Support Language	Simple Chinese/Traditional Chinese,English,other languages

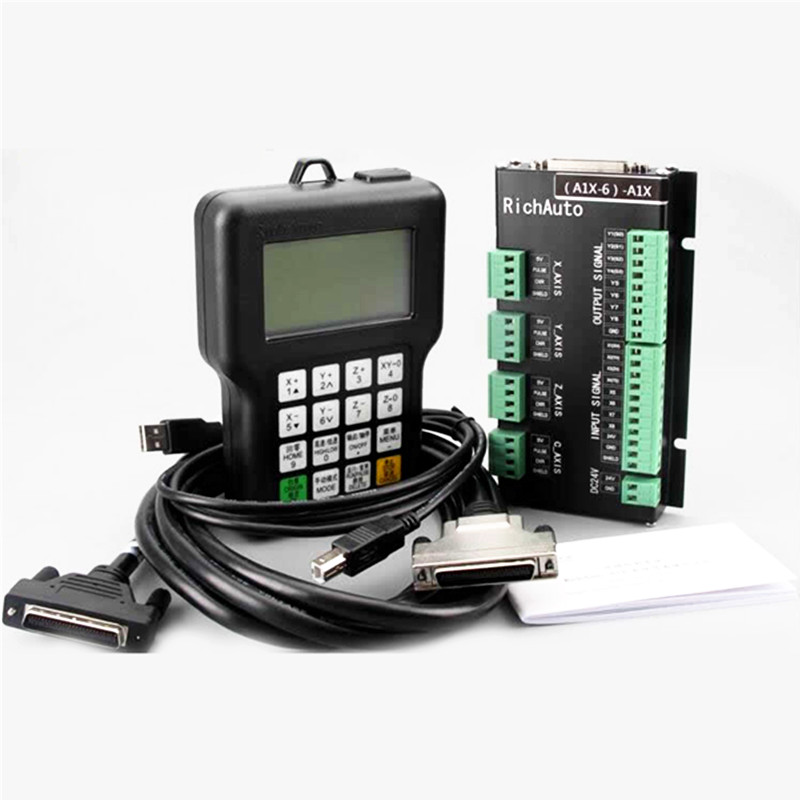

Standard Configuration:	(1)DSP Handle;(2)50CoreCable
	{3)USB Cable;(4)I/O Wiring board;
	(5)Data CD
