GoodCut Freescan UE Pro 3D Laser Scanner with High Precision

GoodCut Freescan UE Pro 3D Laser Scanner with High Precision

3d laser scanner
Good price
High precision
High speed
Product description: 3D laser scanner Freescan UE Pro Blue light High precision
INQUIRY EMAIL

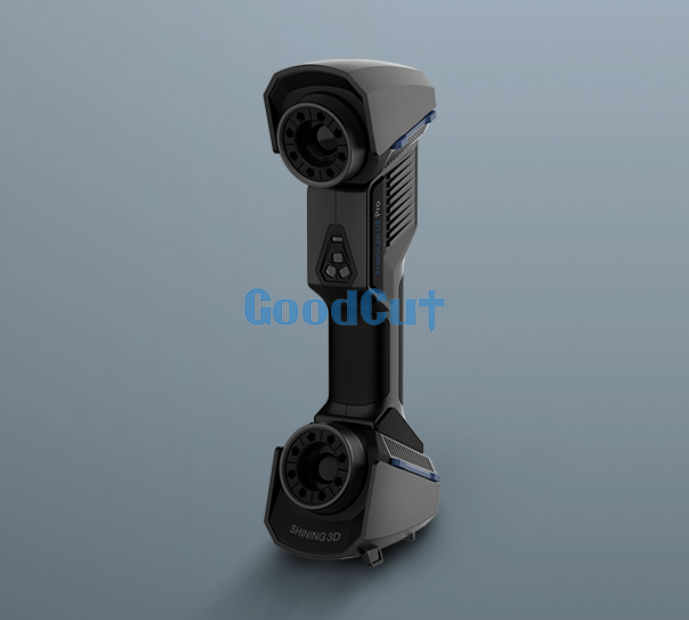

GoodCut Freescan UE Pro 3D Laser Scanner with High Precision

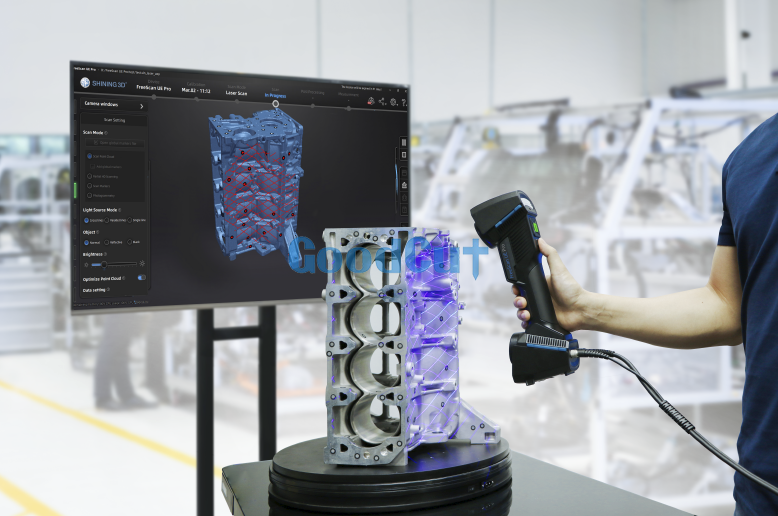

As the blue laser handheld 3D scanner of the FreeScan series, FreeScan UE inherits the iconic features of "high accuracy" and "high precision". At the same time ergonomic and lightweight equipment design, make it easier to hold and operate, providing metrology-grade, high-accuracy inspection solutions for the automotive, transportation, aerospace industry, moulding inspection, energy generation, machinery manufacturing and etc.

Parameter:

Model	FreeScan UE Pro Laser Handheld 3D Scanner
Scan Mode	Multiple Lines Scan, Single Line Scan	Fine Scan
Light Source	26 laser lines, single laser line	5 parallel laser lines
Working Distance	300mm	200mm
Scan Accuracy	Up to 0.02 mm
Scan Speed	1,850,000 points/s
Scan Depth	170 ~ 680mm
Max. Scan Range	600mm × 550mm
Photogrammetry	Built-in scale bar photogrammetry mode
Volumetric Accuracy*	0.02+0.03 mm/m (standard mode)	0.02+0.015 mm/m (built-in photogrammetry mode)
Laser Class	Class Ⅱ (eye safe)
Connection Standard	USB 3.0
Dimensions	298mm x 103.5mm x 74.5mm
Weight	840g
Power Input	12V，5.0A
Working Temperature	-20 ~ 40℃
Working Humidity	10-90%
Certification	CE，FCC，ROHS，WEEE，KC
Recommended Computer Configuration	OS：Win10，64 bit；Graphics card: NVIDIA GTX/RTX series cards， higher or equal to GeForce RTX 3060； Video memory：≥6 G；Processor：I7-8700；Memory：≥32 GB

Portable and lightweighted

The device weights only 750g, facilitating handheld scanning more easily and avoiding fatigue due to long working time.

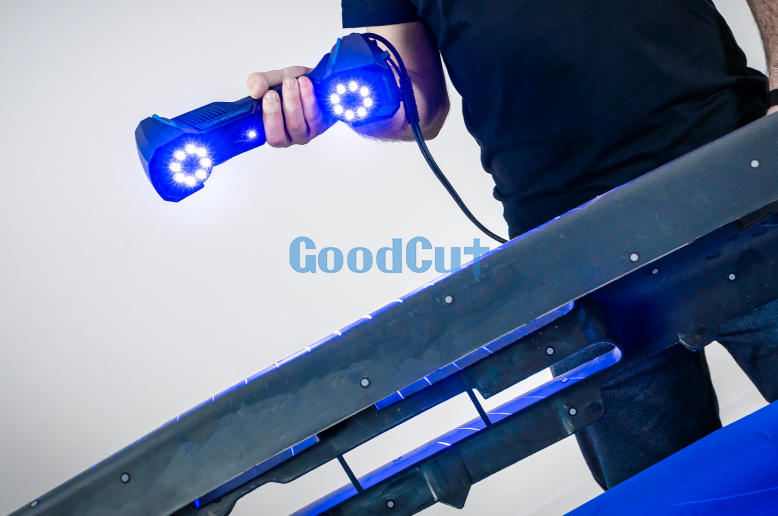

Wide range of material adaptations

Supporting the scan of black and reflective surfaces to accommodate a wider range of scanning applications.

High efficiency

The scan area can reach 510*520mm, providing larger field of view for a smoother and more efficient scanning experience.

Easy operation

User-friendly operating system with simple software setup and guidance through the whole workflow process, allowing users to master the operation at ease.

Seamless docking to inspection software

The scan data can be imported into inspection softwares like Geomagic Control X, Verisurf Inspect with one click, increasing the inspection efficiency.
