Fiber Laser Cutting Machine

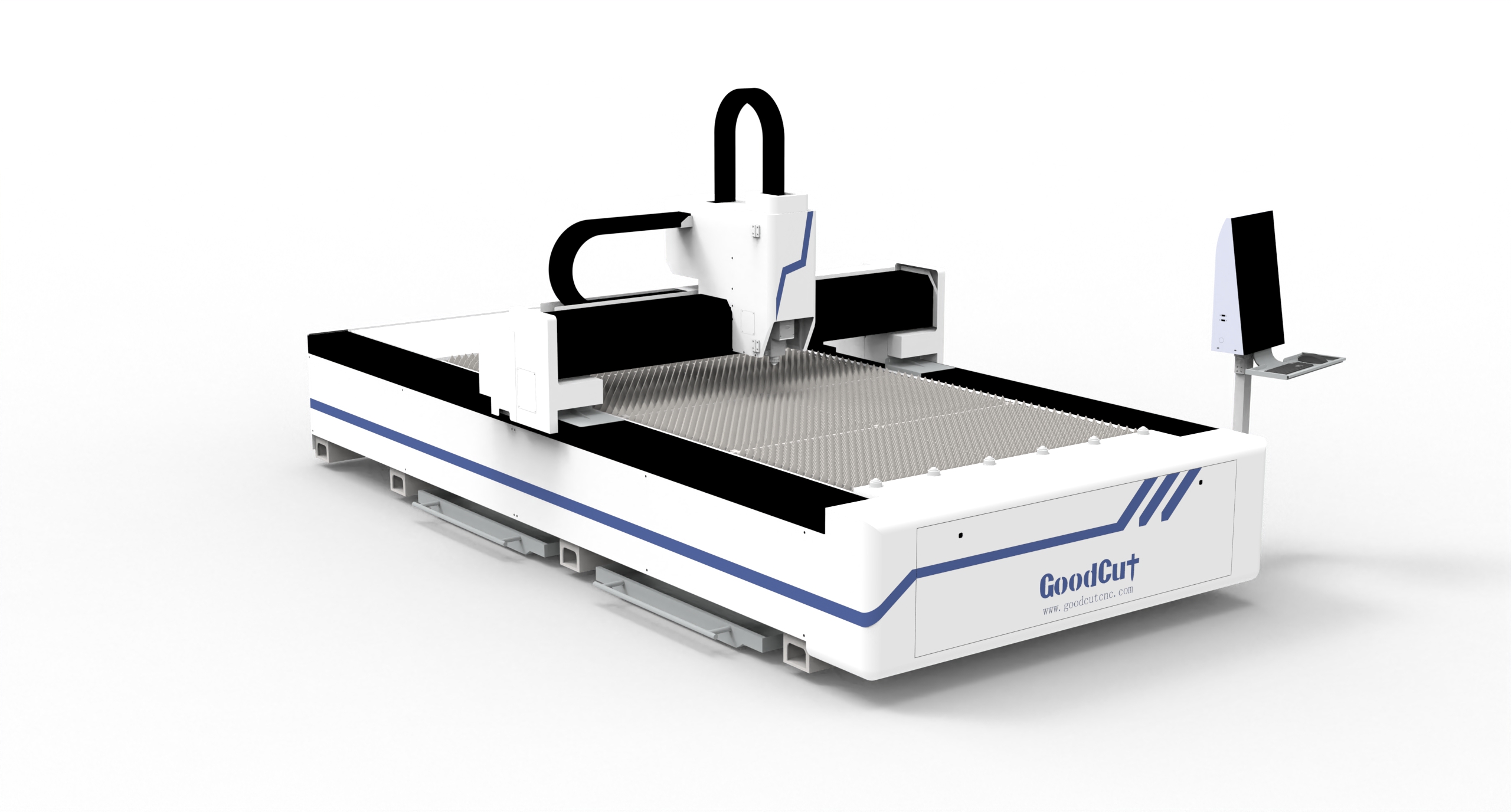

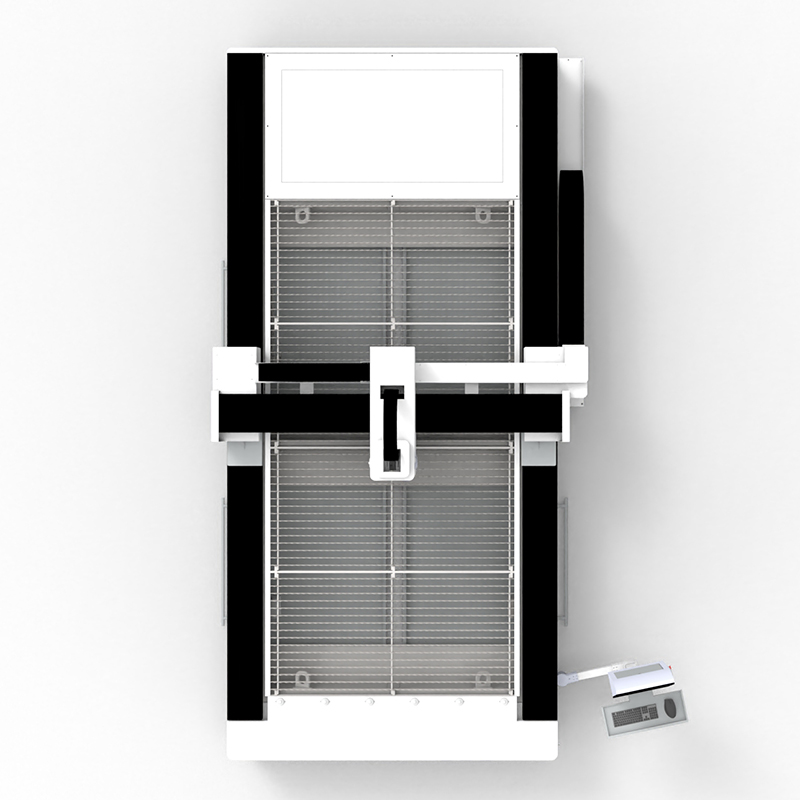

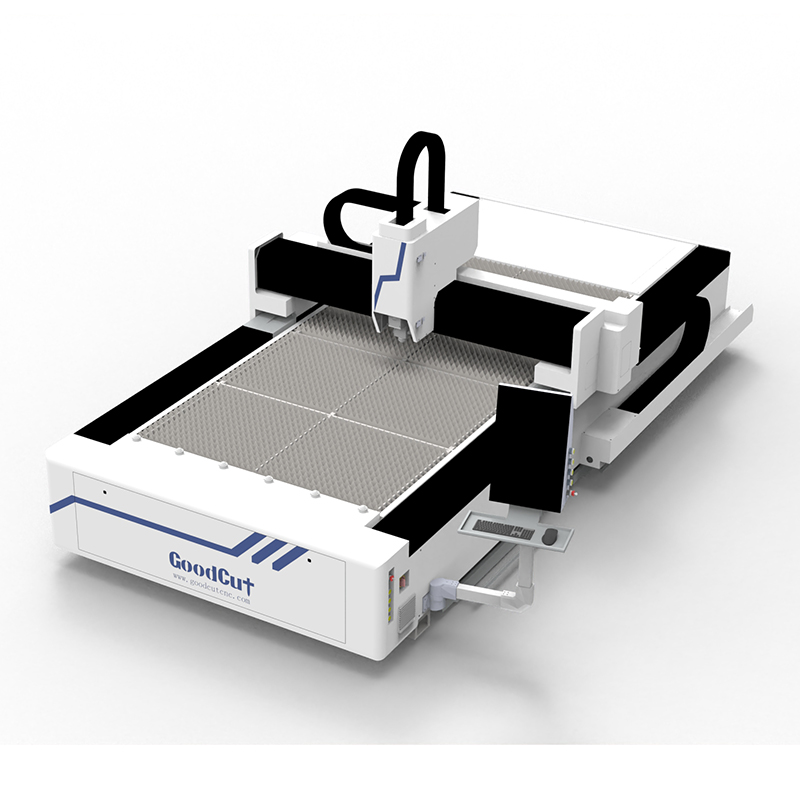

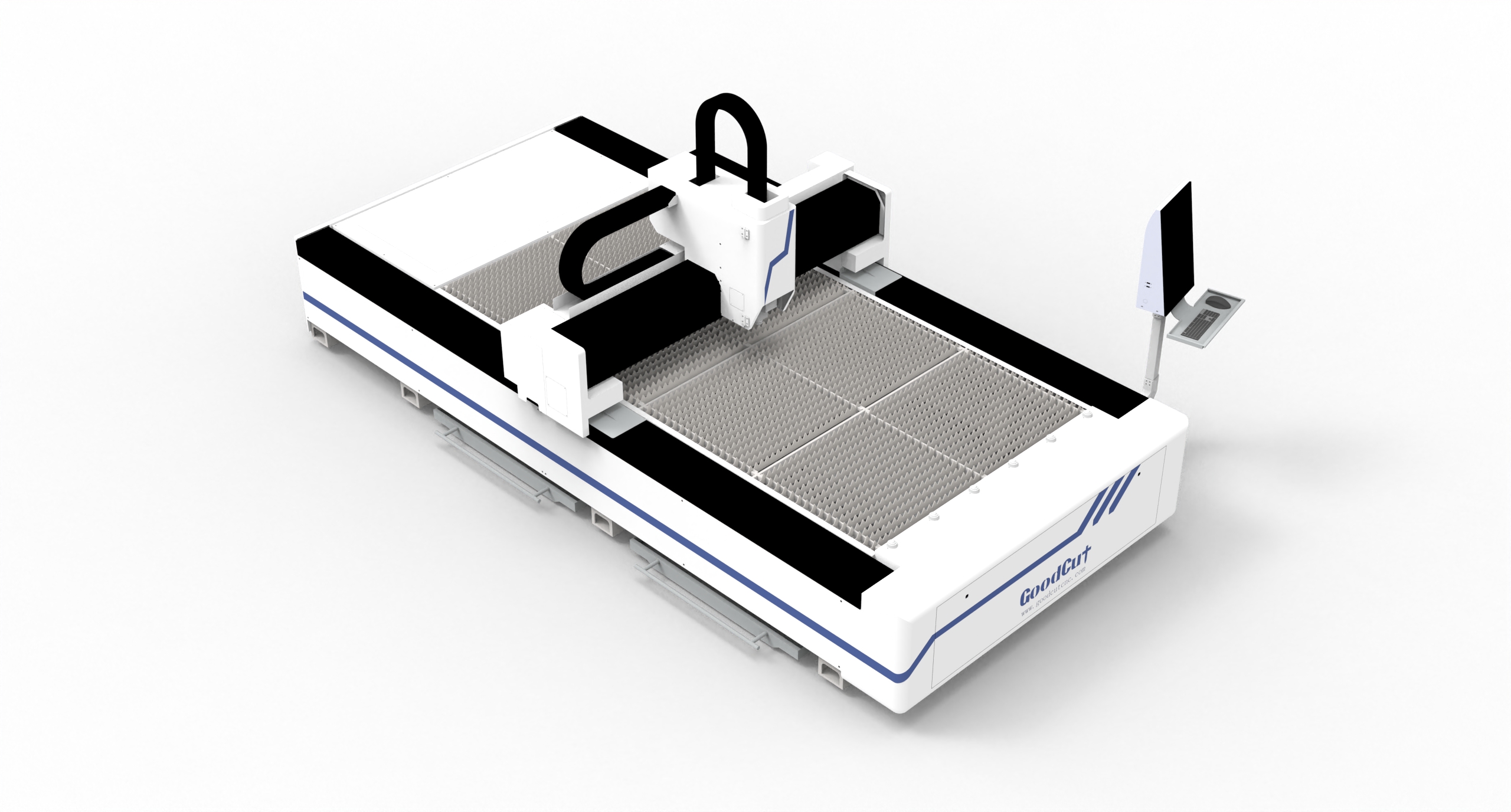

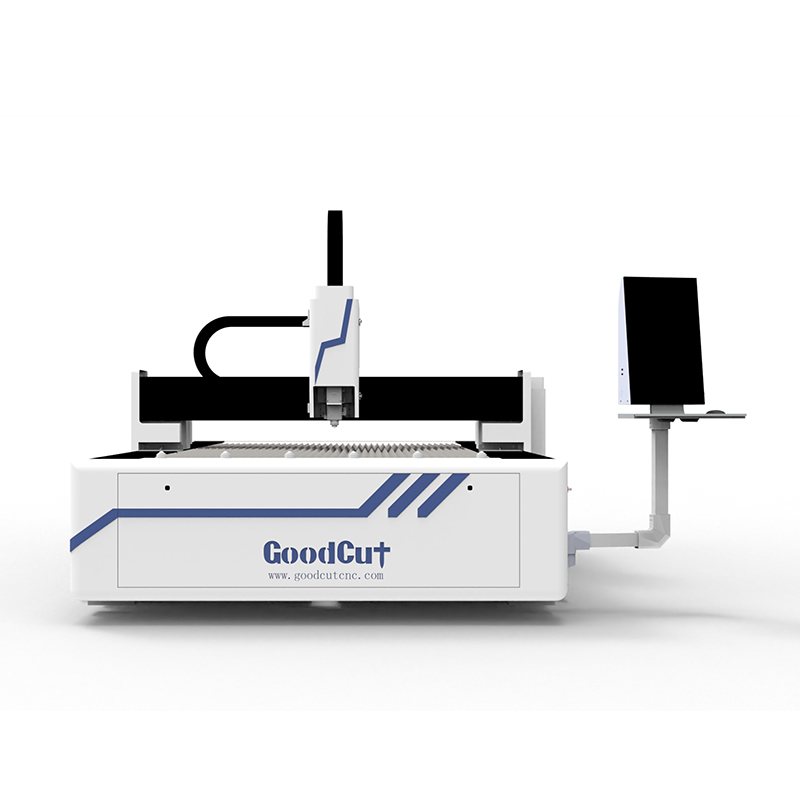

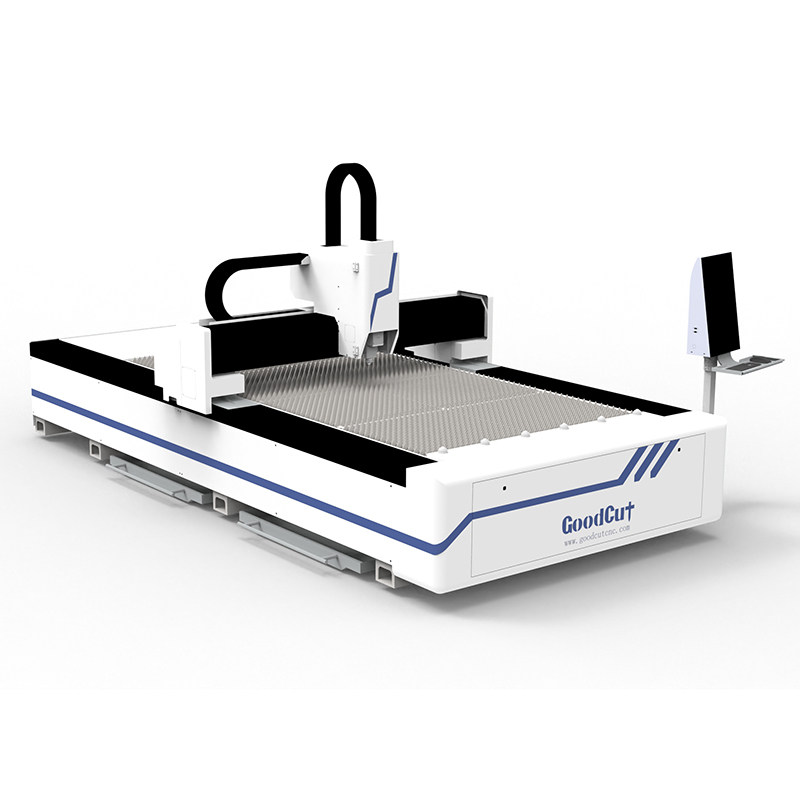

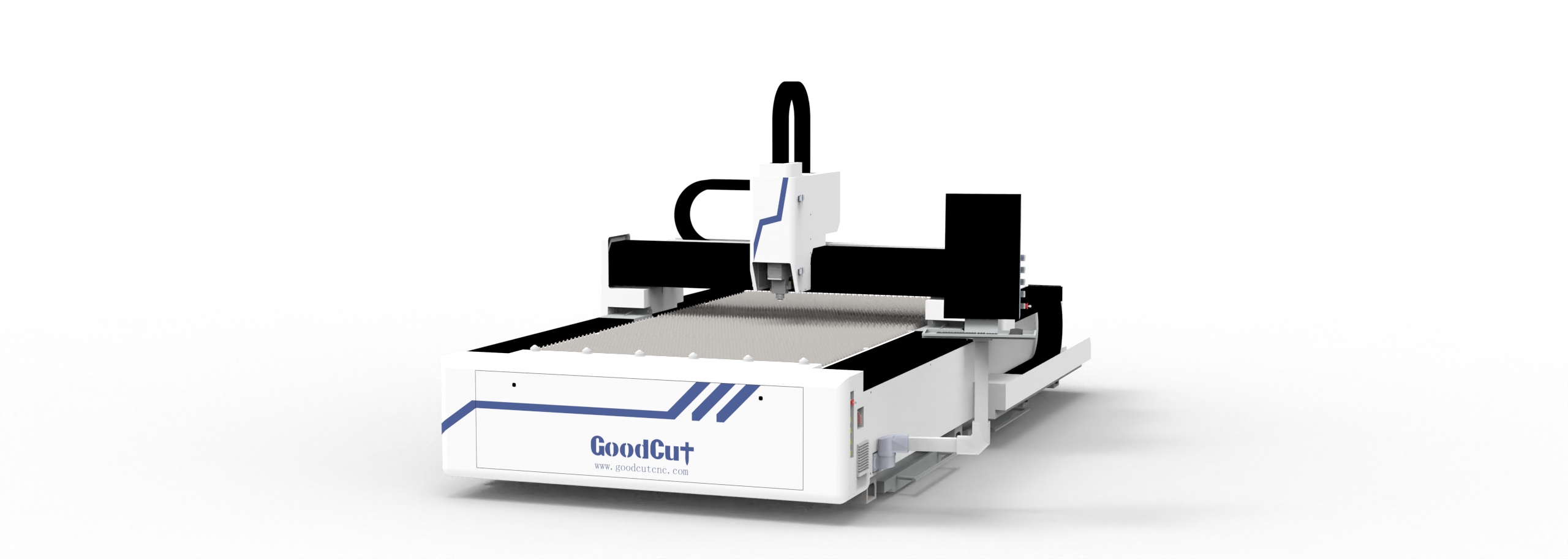

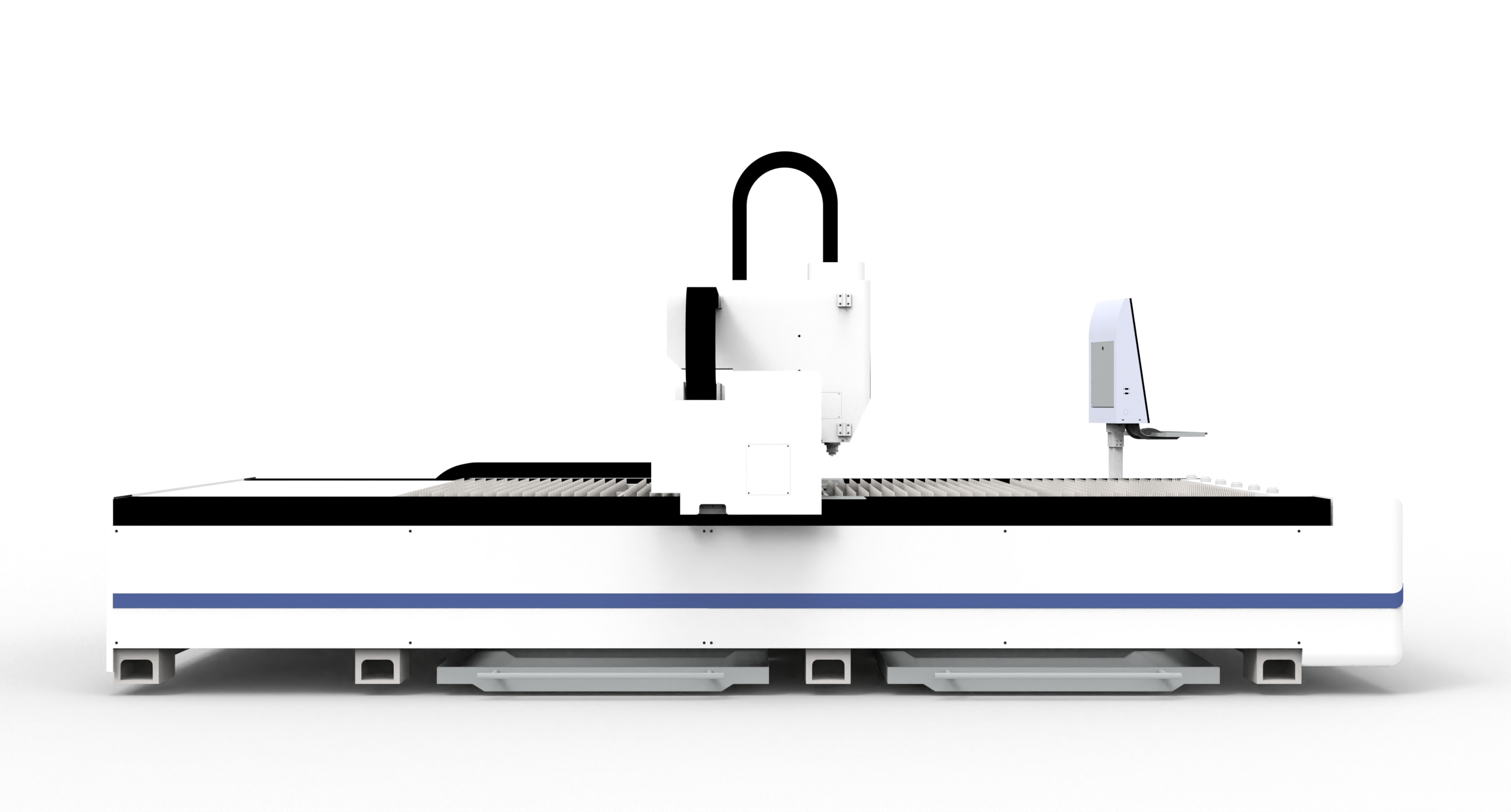

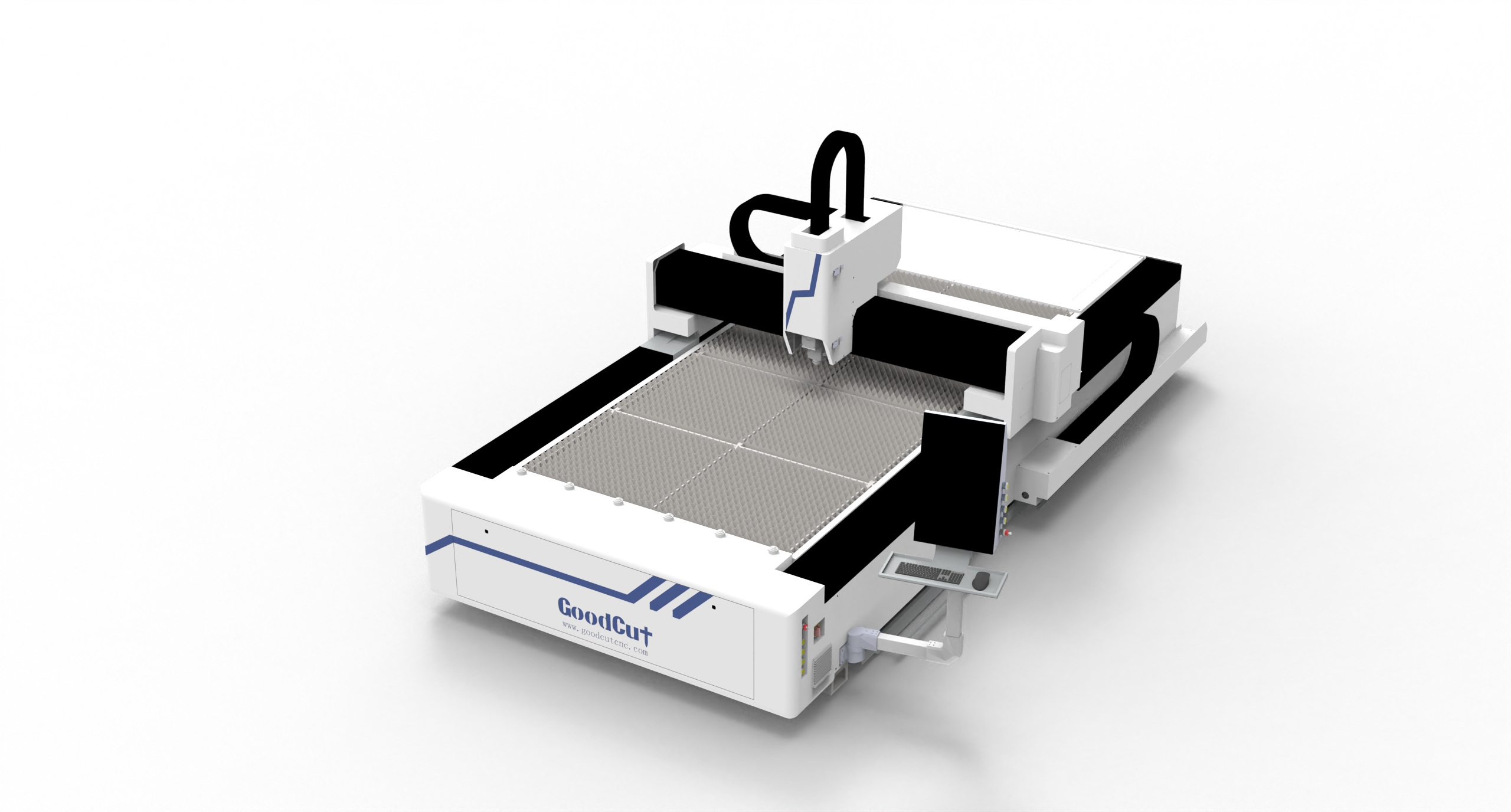

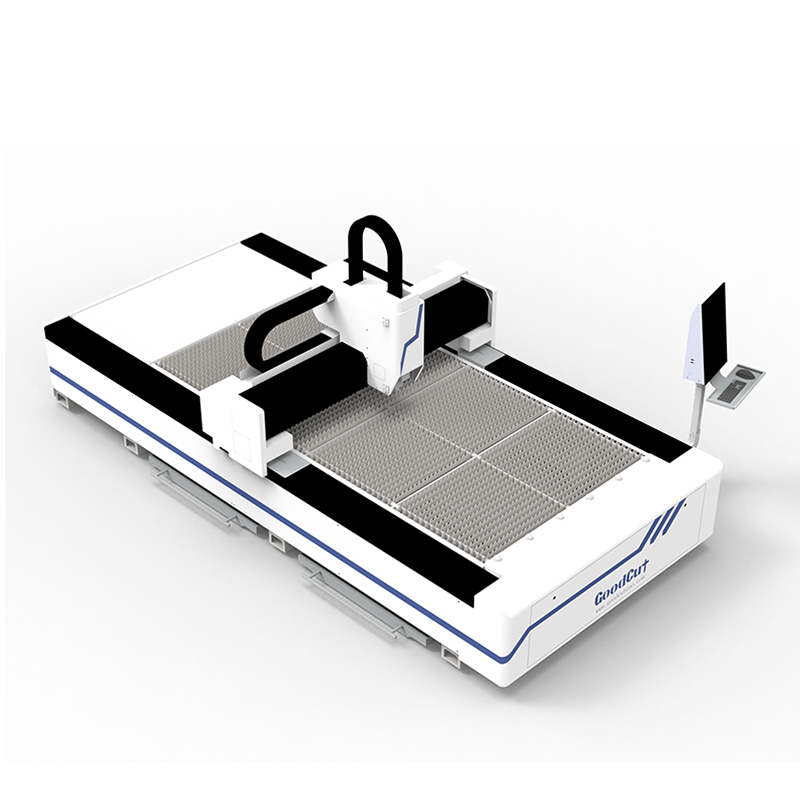

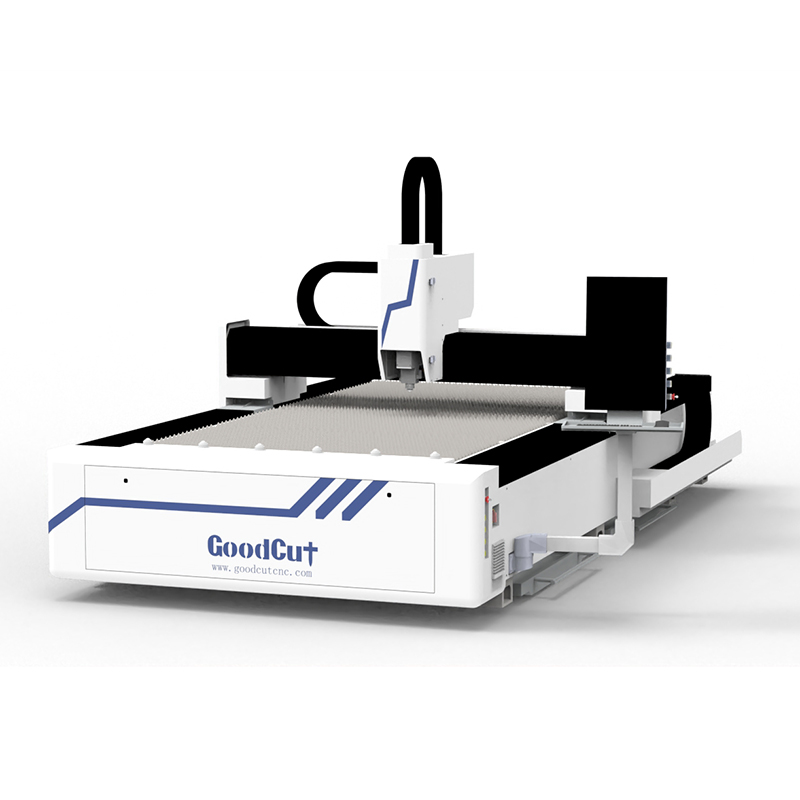

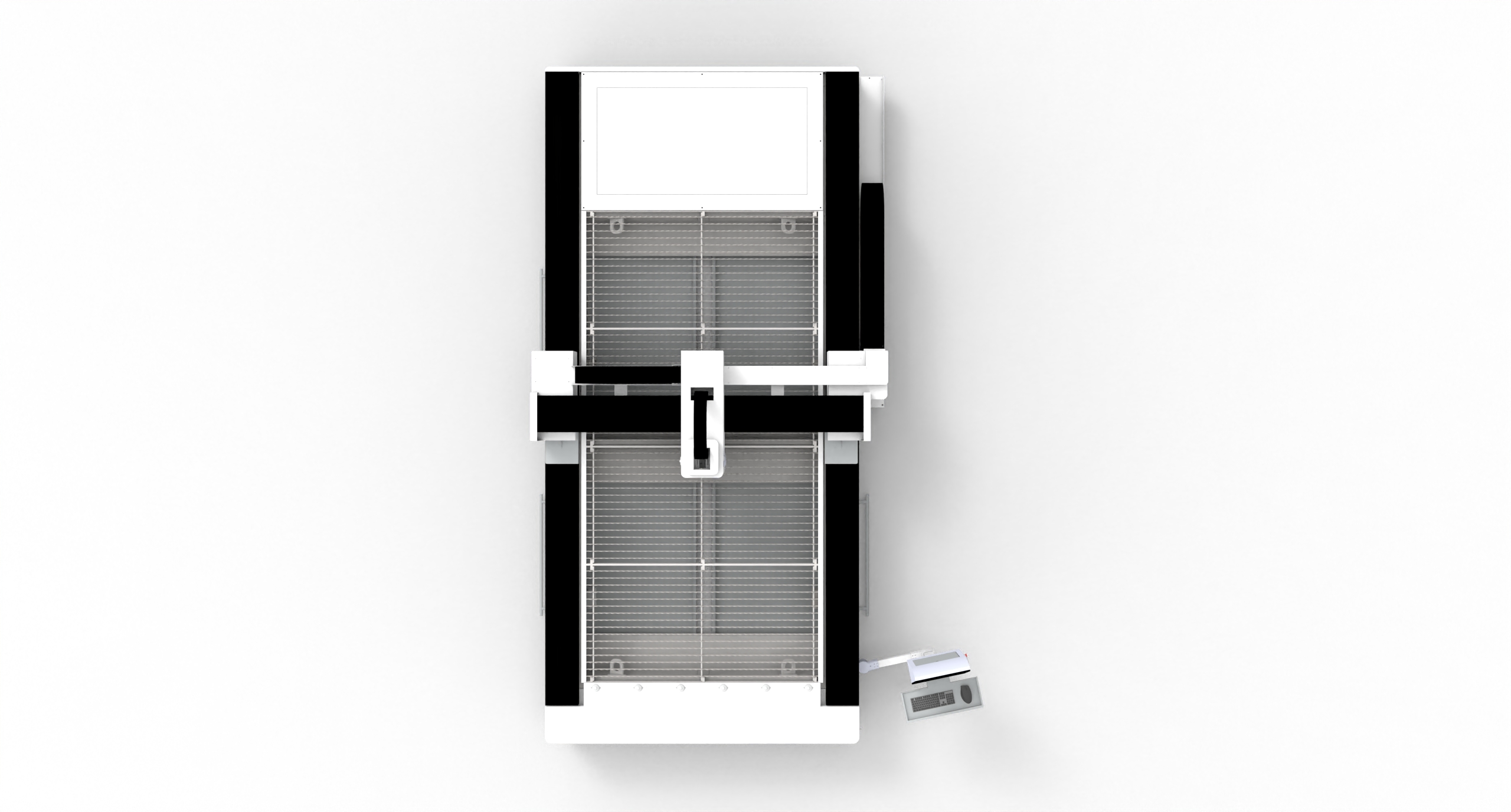

GC1530F New Design Fiber Laser Cutting Machine for Cutting Stainless Steel Carbon Steel

Control system: Cypcut
Laser power:1KW-12KW
Laser source: raycus/MAX/IPG
Motor and driver: Japan fuji / Yaskawa
Product description: Machine price: 11000$-20000$
INQUIRY EMAIL

Parameter:

Working area	1500*3000mm
Laser power	1500W / 2000W / 3000w / 6000w / 12000w etc
Laser source	Raycus / IPG / MAX
Controller	Cypcut
Motor driver	Japan Fuji / Yaskawa / Delta servo motor driver
Repeated positioning accuracy	0.03mm
Max moving speed	80m/min
Max acceleration	1.0G
Transmission	Rack and gear, double drive on Y axis
Power consumption	<10kw
Voltage	380V, 50HZ/60HZ, 3 phase

Feature:

1. Machine Structure
The machine structure adopts industrial heavy steel structure, under heat treatment, suffer lower temperature tempering and annealing, won't deform after long time use. the machine base is very stable when the processing,

2. Japan THK Linear Rail and Block
The machine adopts the best linear and block rail from Japan. We have the feedback from our client that its block even can use over 10 years and can't break. The usage lifespan and the product quality definitely can be ensured.

3. France Schneider Servo System
The fiber laser machine adopts the imported servo system from France including servo motor and servo driver, The Y axis two servo motor power are 2KW, The X axis servo power is 2KW power, The Z axis servo motor power is 0.4KW power.

4. CYPCUT Control System
The best control system in fiber laser machine industry. It is suitably applied to high power fiber laser machine and can support the rotary device, exchange table and automatic focus
cutting head.

5. S & A Chiller
Focus on the research and development of industrial cold machine, independent research and development of core parts strictly implement ISO production management system, With excellent quality and leading research retrength, S &A has become a leding enterprise in the domestic industrial refrigeration industry.

6. Raycus Laser Source
Fiber laser is compact in structure, stable in performance and widely used, Fiber laser has high photoelectric conversion efficiency, good beam quality and low maintenance cost,(The USA IPG Laser source is optional)

7. Japan Shimpo Servo Reducer
Our fiber laser machine adopts the Shimpo Servo Reducer from Japan with low noise when the machine is processing the metal materials,After many refinements,it has small size in installation but high precision function.

8. Raytools Fiber Laser Cutting Head
Our fiber laser machine install the Raytools manual focus cutting head, The machine also can optional automatic focus cutting head, Fast perforation (especially the thick materials), The plate is not easy to heat, Does not affect the cutting head following.

9. Oil Lubrication System

This machine accessory is applied to lubricate the machine rail and block in order that it runs smoothly and fast, improving the working efficiency.

Product Description

The series of pioneer GC-3015F laser cutting machine offers power ranges between 2000W to 15000W.

One of the most efficient machine technologies for rapid sheet metal cutting which can cut the thickness for 50mm or less.

1. Saving Material ---- CNC control, it can cut the material in different shapes, improve the utilization rate and reduce waste.
2.Easy Programme ----high accuracy, cut to shape without molding, smooth finish, eliminating the process for edge modification.
3. Save Investment for Molding ---- Laser cutting without molding, eliminating the cost for molding and repair, save time, resulting in less manufacturing cost, reduce the cost of goods sold, particularly suitable for processing parts in large-size.
4. Protecting Environment ---- working area for laser cutting is fully enclosed, low noise, is clean, safe, free of pollution, totally improve the working condition and environment.

Jinan GoodCut CNC Machinery Co., Ltd.

The meaning of “GoodCut” brand: Good Quality, Good Price, Good Service

济南固刻数控设备有限公司

Good Quality

1. 15 engineers with more than 10 years rich working experience, manufacture high precision machines;

2.Three-day 72-hour testing machine inspection, after confirming that the machine has no any quality problems, then it will be shipped;

3. 4 QC staffs do strict evaluations on in-coming inspections, in-process inspections, final machine inspections.

Good Price

1. GoodCut manufactures about 50 sets of machines per month, with a large sales volume. We have long-term cooperation with parts suppliers, can get advantageous prices of parts, so that the price of machine is very competitive;

2. GoodCut aims to develop long-term cooperation with new and regular customers, and to give customers the best prices with the most sincere attitude.

Good Service

1. English manual and video for machine using and maintaining, explaining the operation steps in detail;

2. Professional after-sales service staffs, providing 24-hour online service;

3. Provide free technical training and factory field operation teaching to eliminate customer worries.
