Laser Welding Cleaning Machine

  • GC-WCC New Model Design 4 in 1 Laser Welding Cutting Cleaning Machine with Wire Feeder
  • GC-WCC New Model Design 4 in 1 Laser Welding Cutting Cleaning Machine with Wire Feeder
  • GC-WCC New Model Design 4 in 1 Laser Welding Cutting Cleaning Machine with Wire Feeder
GC-WCC New Model Design 4 in 1 Laser Welding Cutting Cleaning Machine with Wire FeederGC-WCC New Model Design 4 in 1 Laser Welding Cutting Cleaning Machine with Wire FeederGC-WCC New Model Design 4 in 1 Laser Welding Cutting Cleaning Machine with Wire Feeder

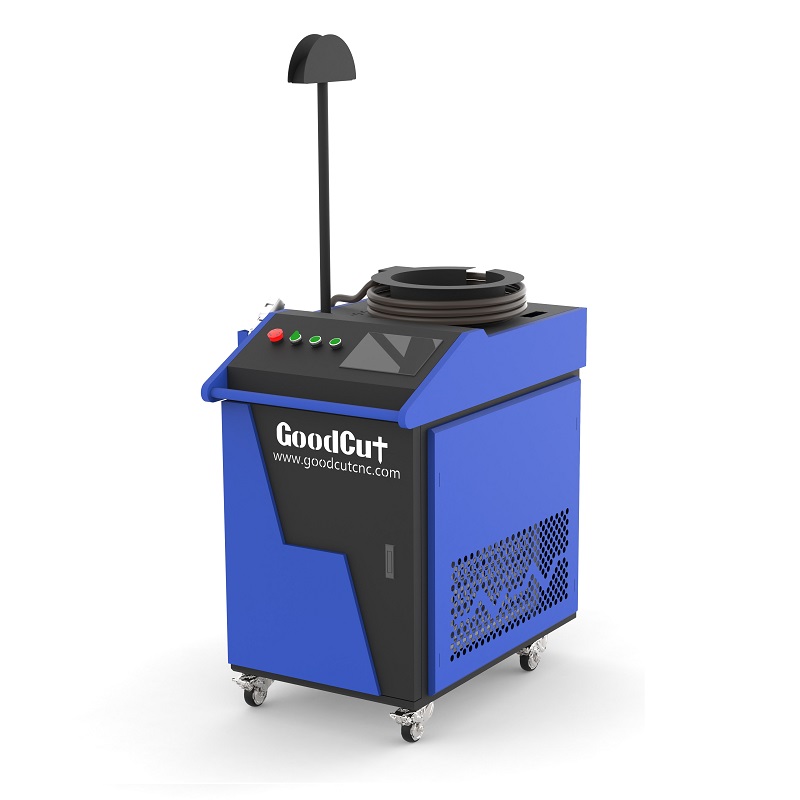

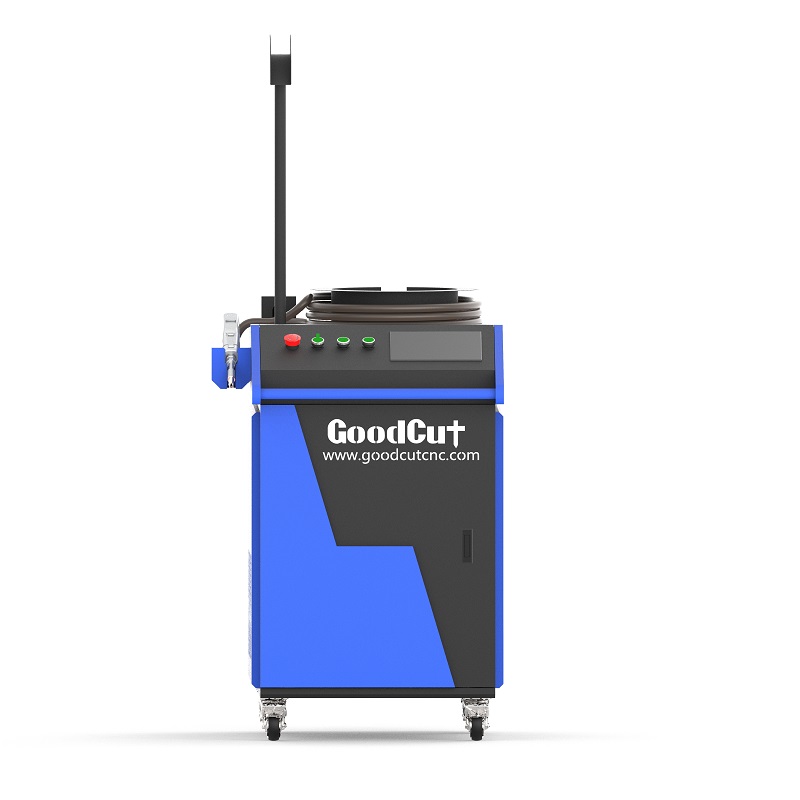

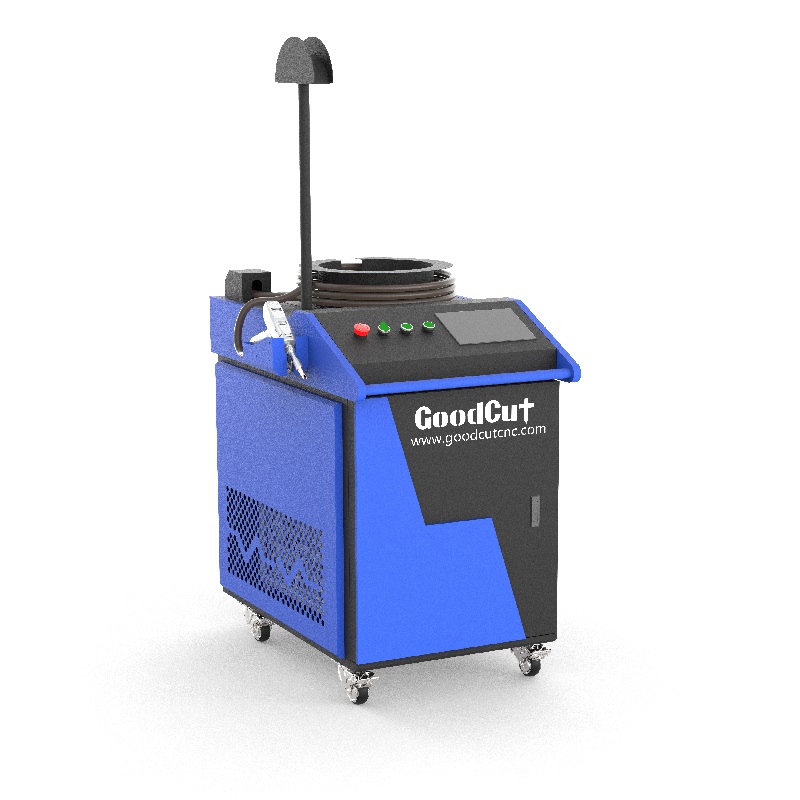

GC-WCC New Model Design 4 in 1 Laser Welding Cutting Cleaning Machine with Wire Feeder

  • Welding cutting cleaning
  • Raycus / Max laser source
  • Auto feeder
  • New design
  • Product description: 1kw 1.5kw 2kw 3kw laser power Max/Raycus laser source AoSen/ QiLin control system Auto feeder device
  • INQUIRY   EMAIL


Parameter:

Configuration of the machine

Model

GC-WCC

Fiber Laser source

1000W / 1500W / 2000W / 3000W

Brand of laser source

Raycus/MAX

Controller system

Chaoqiang Weiye

Welding / Cutting / Cleaning head

Chaoqiang Weiye

Wire feeder

Chaoqiang Weiye

Laser wavelength

1064nm

Weling min molten pool

0.1mm

Welding depth

≤3mm

Spot size adjustable range

0.3-3.0mm

Workbench repeatability

±15kw

Viewing system

Red light positioning

Cooling

Water cooling

Operating Temperature

0-45℃

Operating humidity

5%-95%

Graphic Format Supported

BMP,GIF,JPEG,PCX,TGA,TIFF,PLT,CDR,DWG,DXF

Net Weight

200KG

Warranty

Two year

Voltage

AC220V±10%/50Hz/60A

Machine Size

1200*700*950mm

Feature:

1. The weld seam is smoothe and beautiful, it doesnot need to be polished or the  workboard of the polish is very small.

2. Through control the laser energy, the welding will not defrom or very few deformation.

3. Handheld  laser welding machine is easy to handle and needn't to  require the  professional welders.

4. The wobble welding machine can handle the hard welding material easily, such as aluminum, brass.

5. Long life span up to 100,000 hours and low comsumption.

6. the Auto wire feeding handheld welding machine can weld parts with wider gap.

7. With a 8-15m fiber line, It can weld long-distance and large- area parts.

8. Various welding processes, such as spot welding, seam welding and overlap welding.

9. The welding efficiency is around 5 times of TIG welding.

10. It is welding used in electronics, sheet metal, air condiction industry etc.


Deatiled parts:

1. Automatic Wire feed
No consumables, small size, flexible processing, low operating and maintenance costs.
2. Water Chiller
High cooling rate, which can weld fine weld structure and good joint performance.

3. Laser Welding / Cutting / Cleaning Head

Smart high frequency swing welding head. Can be widely used in metal equipment, stainless steel home and other industries complex irregular welding process.

Also can do cutting and cleaning work, just change differnet head.

4. Laser Source
Chinese top brand fiber laser source Raycus, high power. The energy density is high, the heat input is low, the amount of thermal deformation is small.

5. Control Panel

With auto layout optimization, ensure high speed operation of whole machine.





Application:

1. Material

Stainless steel, copper, aluminum, gold, chromium, silver, titanium, nickel and other metals or alloys, it can also be used for a variety of welding between different materials, such as: copper - brass, titanium - molybdenum, titanium - gold, nickel - copper and so on.

2. Welding,Cleaning,Cutting

Kitchen cabinets, staircase elevator, shelf, oven, stainless steel door, window guardrail, distribution box, medical equipment, communications equipment, craft gifts, household and other industries.
