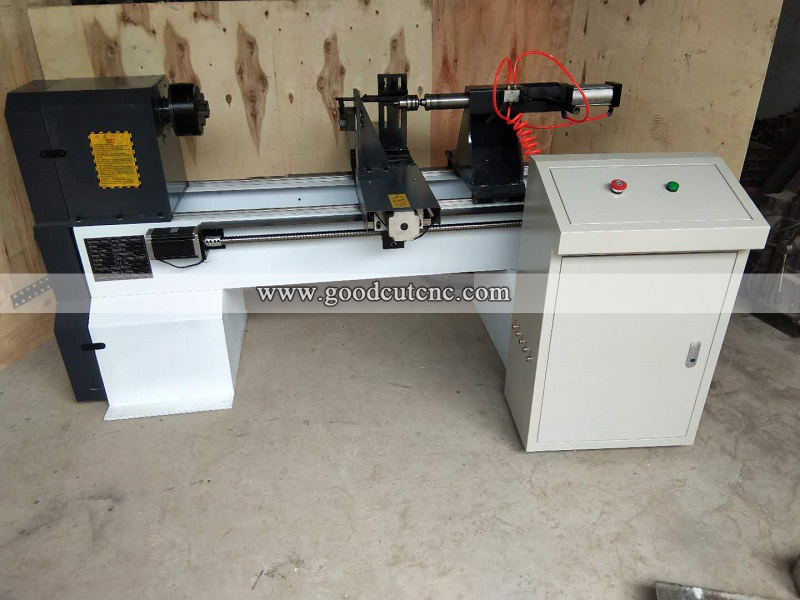

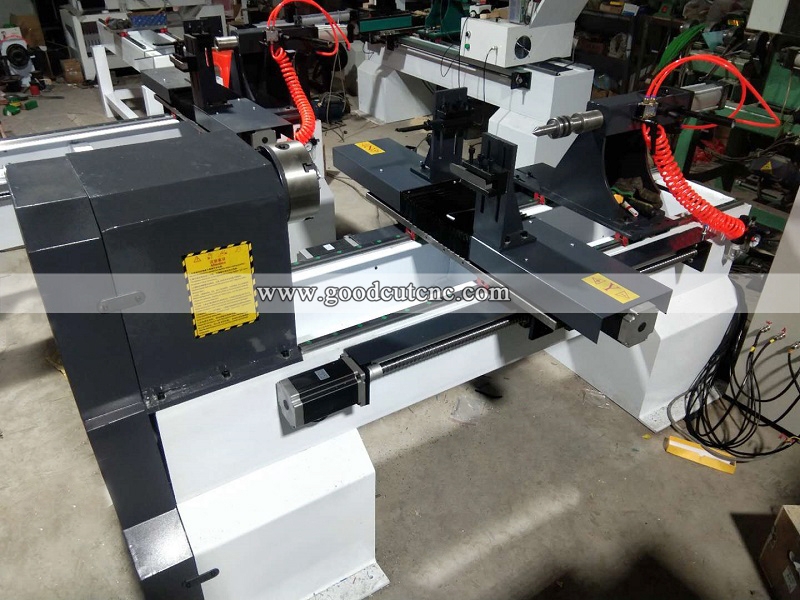

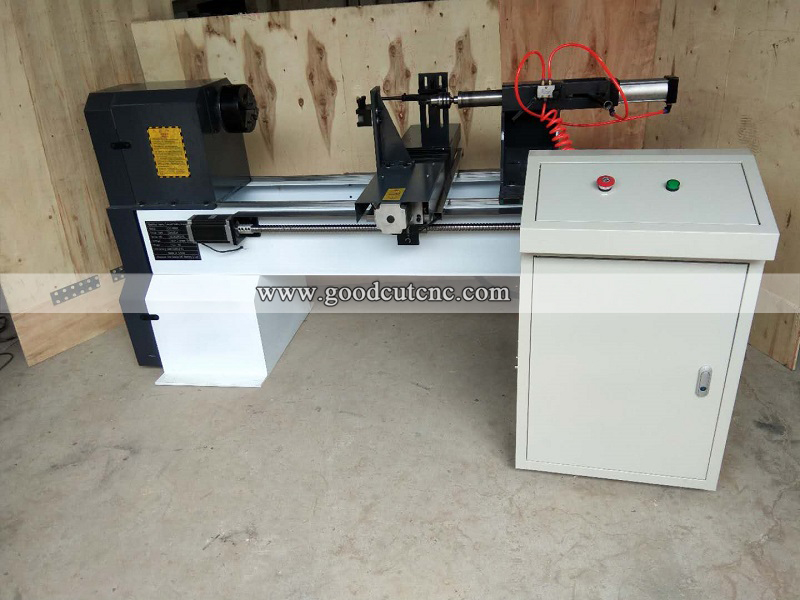

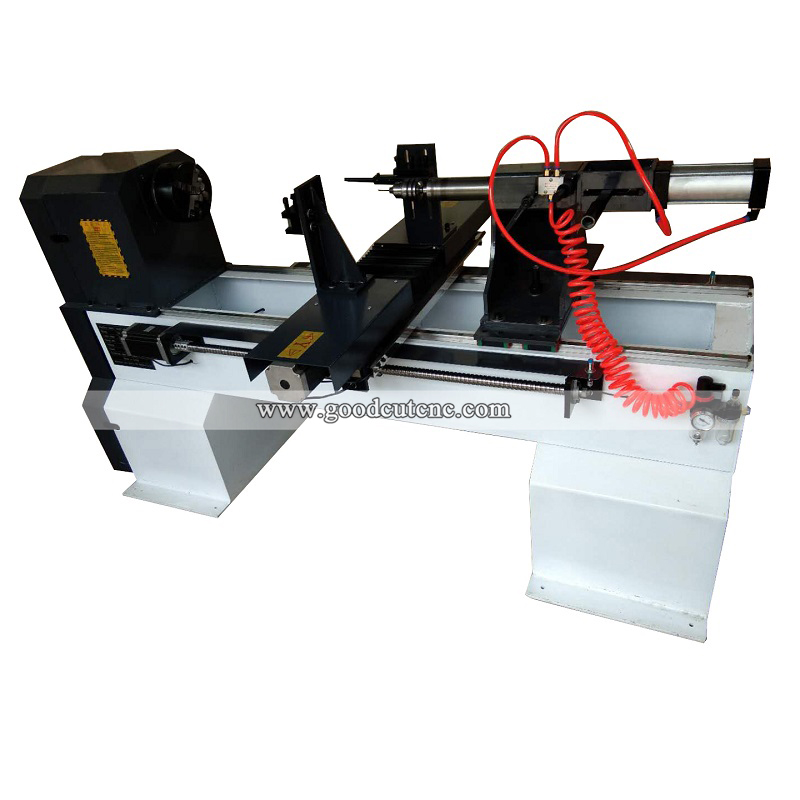

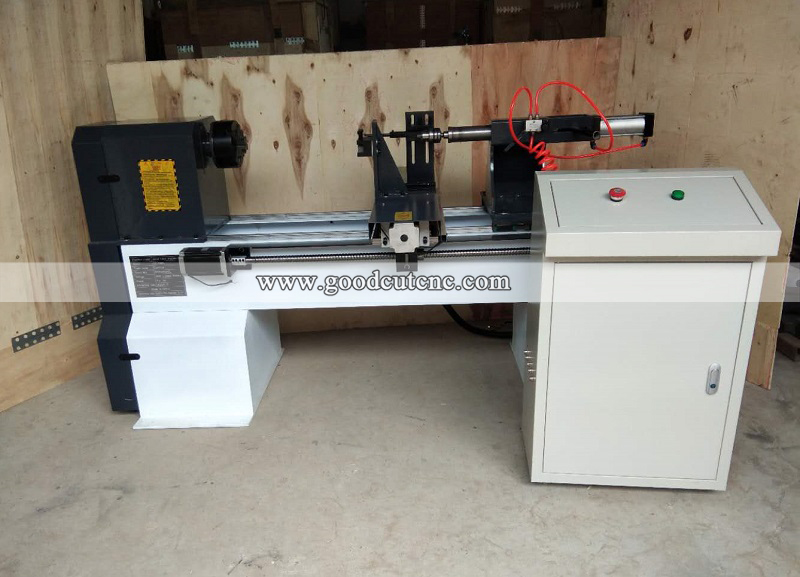

GC-6030WL CNC Mini Wood Lathe Machine with Drilling Blade for Holes

Mini size
For lathe and drilling holes
300mm diamter, 600mm length
Heavy duty
Product description: Heavy duty frame, more stable. With drill blade for drilling holes 300mm diameter, 600mm length, other size for optional
INQUIRY EMAIL

GC-5025WL CNC Mini Wood Lathe Machine with Drilling Blade for Holes

Parameter:

Description	Parameters
Model	GC-6030L
processing diameter	300mm
Processing max length	600mm
Auto drilling	With(can change into turning thimble)
Processing precision	0.01mm
Operating system	Special wood beads system
Drawing software	CAD
Drawing format	*.dxf
Transmission way	TBI ballscrew guider Taiwan Hiwin/PMI square orbit
Driving system	Step motor and driver
cutter	Super hard alloy wood lathe cutter
Whole machine power	1.5KW
Motor power	750w
Voltage	220V single phase, 50HZ
Packing size	1300550900mm
Gross weight	200kgs
Proper Materials	All kinds wood
Application	This machine is widely used in crafts industry, Bead, barrel, all kinds of buddha head pagoda, gourd pendant, hoist pieces, wood rhinoceroshorn cup, bowl, whip, cigarette holder, eggs, ashtray scroll painting head.
Standard Accessories	Square orbit Ballscrew transmission With automatic drill, Special wood beads machine control software, 1.5kw easy motor, Supper hard alloy cuttter
Parts	cutters2 pieces drillers 1 pieces Limit switch*2 pieces

Feature:

(1)The machine has 2 cutters (The Rough turning cutter and finish turning cutter work synchronously with layered process) and so that improve the efficiency and workpiece surface quality.

(2) Adopt 25ball screw and20square rail with high transmitting precision and longevity. Bid module helical/diagonal rack. high precision and durable.

(3) It is heavy-duty and heavy weight with good stability, avoid shaking when the spindle rotates fast or the big sizes workpiece process, and the main spindle speed can be adjusted through the frequency converter.

(4) Easy operation, we can draw by Coredraw,Artcam,autoCAD and other softwares, and the control directly by the CNC cabinet computer (Industrial PC configuration) or transfer the files to machine by a USB (DSP handle configuration).

(5) High accuracy stepper motor, after program calculating, guarantee the exact processing size.
